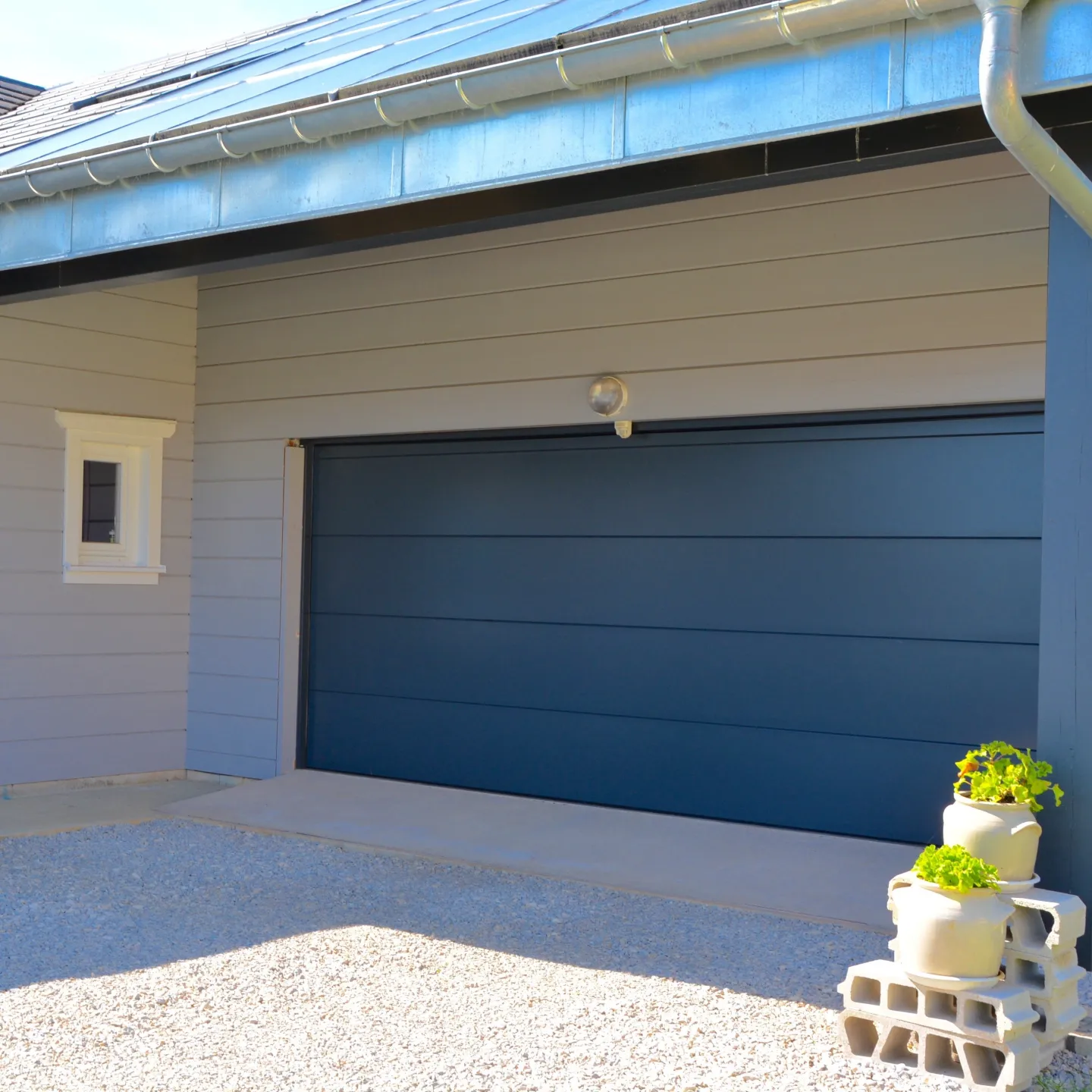

Sessanta - Sectional garage door

The Sessanta sectional door is our garage door with the best insulating properties. This comes from its 60mm thick panels and a 40mm insulated frame.

The 60mm insulated panels also give it increased mechanical strength, which allows a door to be up to 5 metres wide.

Price: €2,004.00
Tax included

Need help ?

Chat with us !

Secure payement

Credit card - PayPal - Bank transfer

Pay in 3 times for free

from 150€ of purchase, by paying by credit card

Documentation

POSE INSTALLATION ENGINE ONE (FR

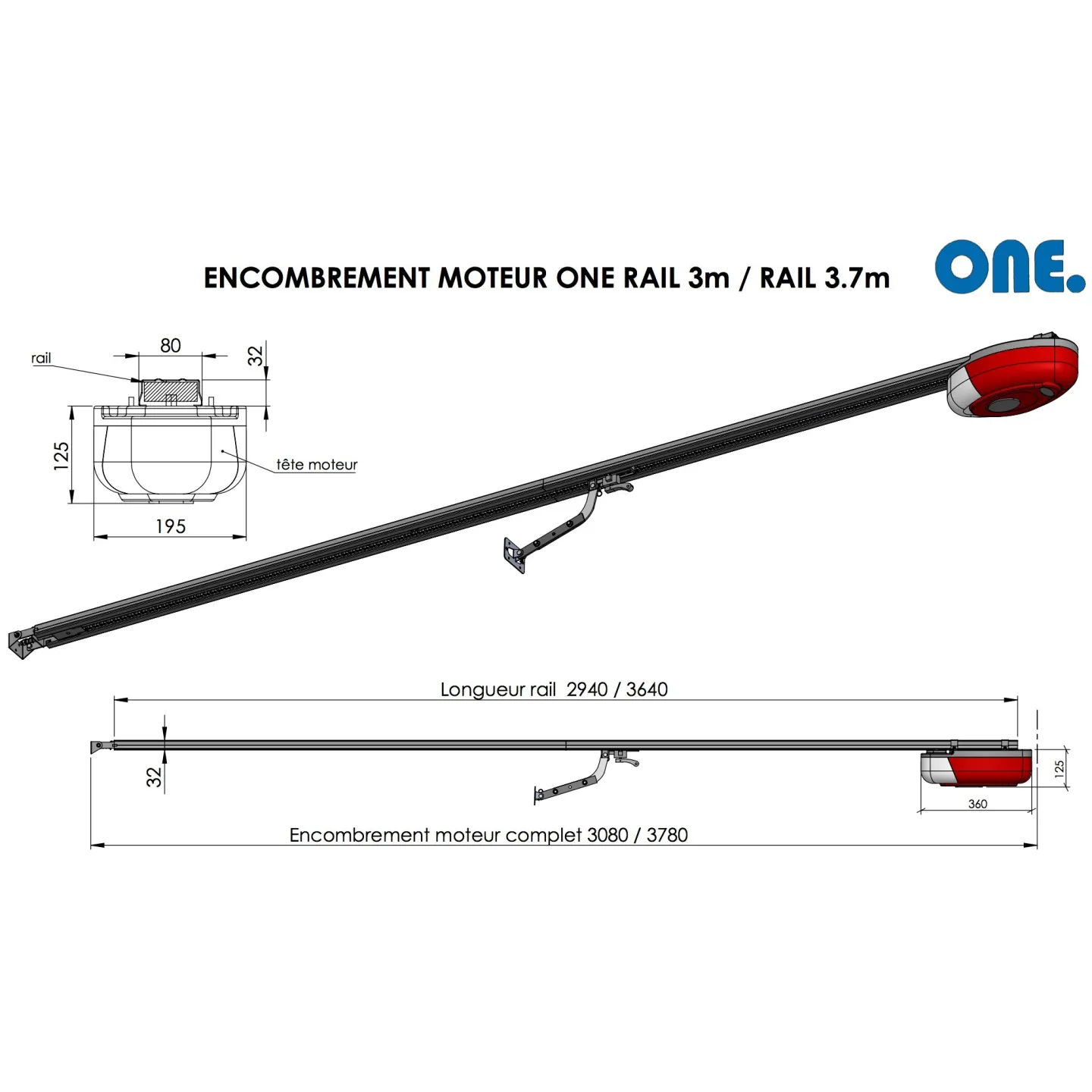

One 600 Engine Installation Manual, One 1000 and One 1200

Installation instructions Isola

Isolated sectional door mounting guide pre-assembled

Installation instructions Isola

Isolated sectional door mounting guide in Pack

Types of panels (FR)

List of aesthetics of possible panels in ISO 40 and ISO 60mm

SESSANTA measurement sheet (FR)

Measurement sheet for quotes and order door sessanta

Garage door configurator presentation image

Configure your garage door and get a free quote

Create a garage door to your liking with our interactive configurator.

You can choose from all our ranges of up-and-over and sectional doors.

In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.

10-year warranty

Our guarantees

The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.

Learn more

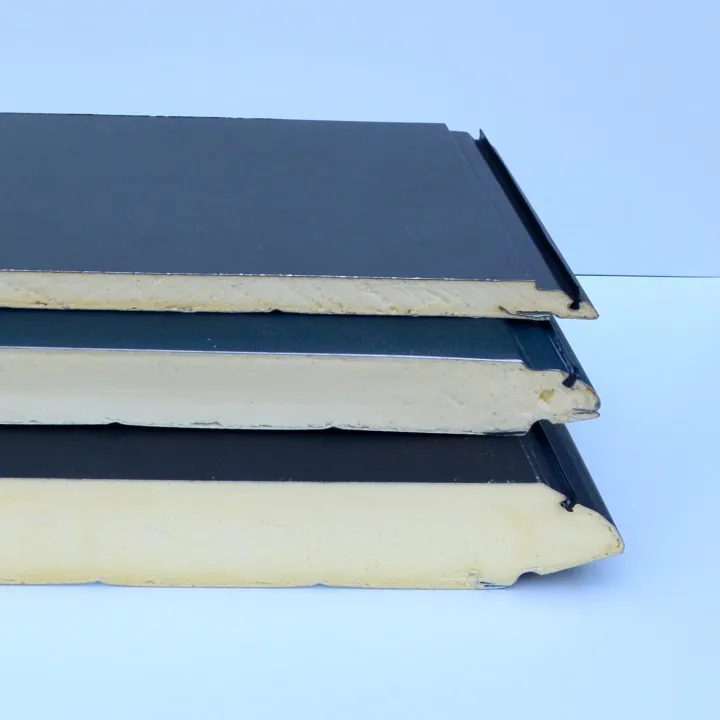

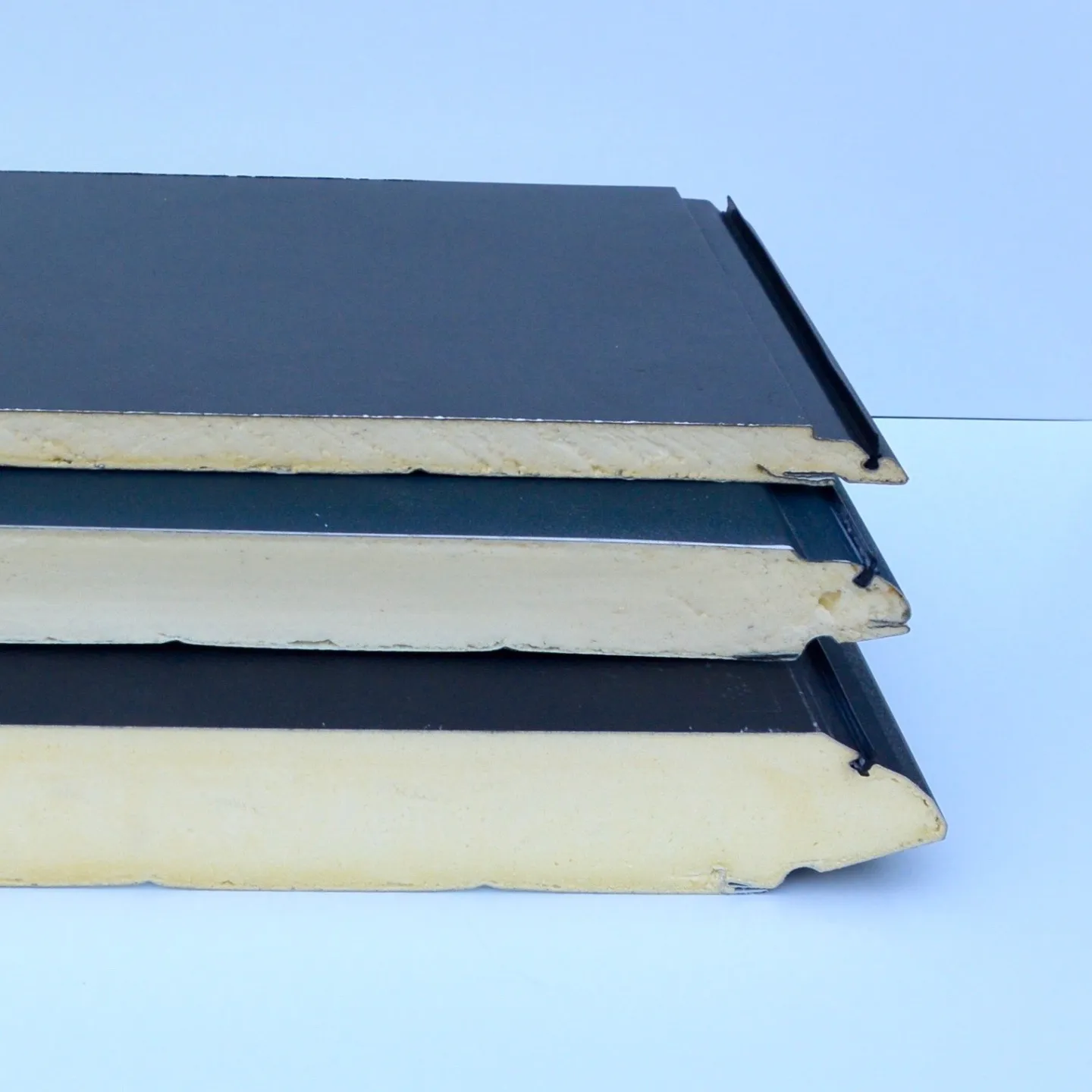

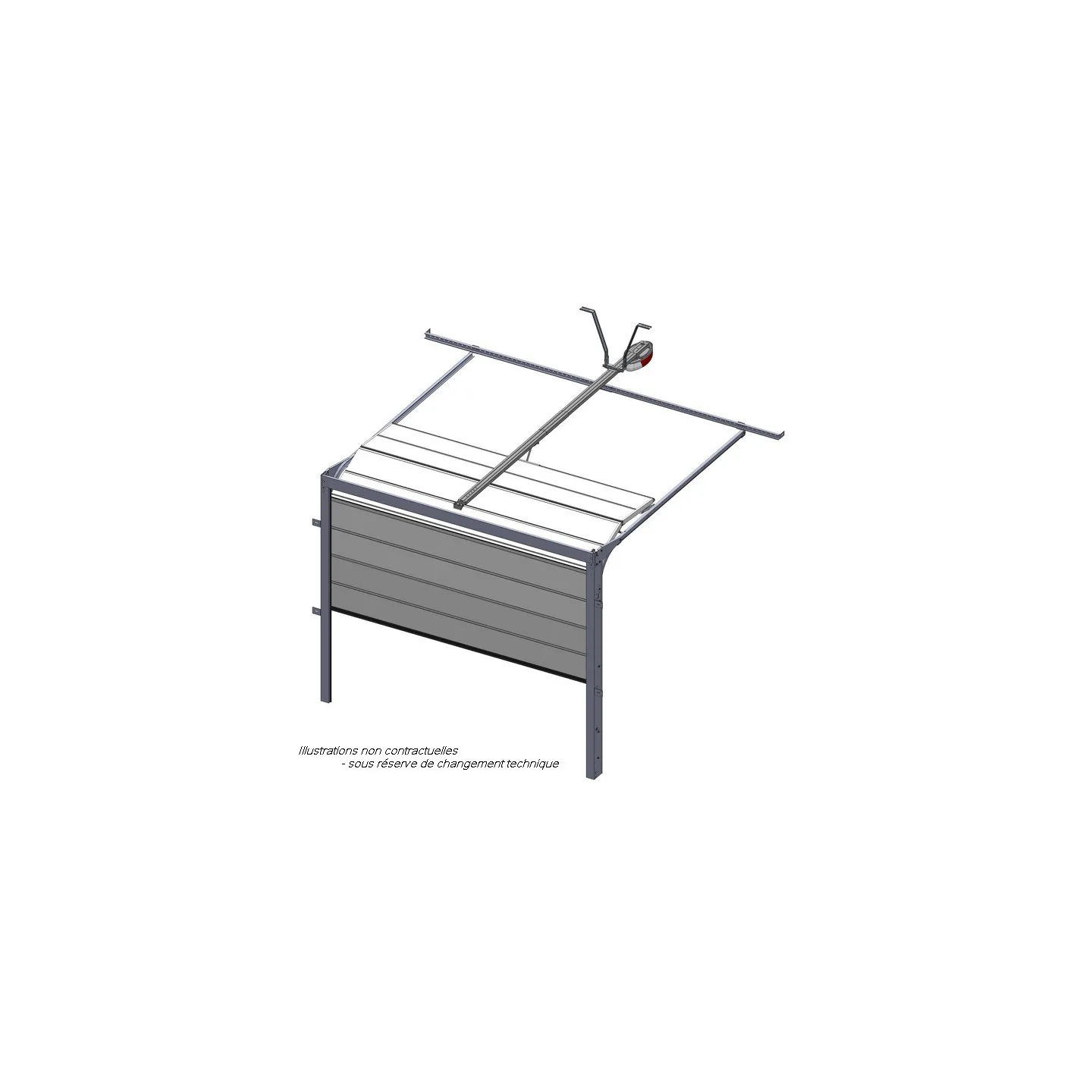

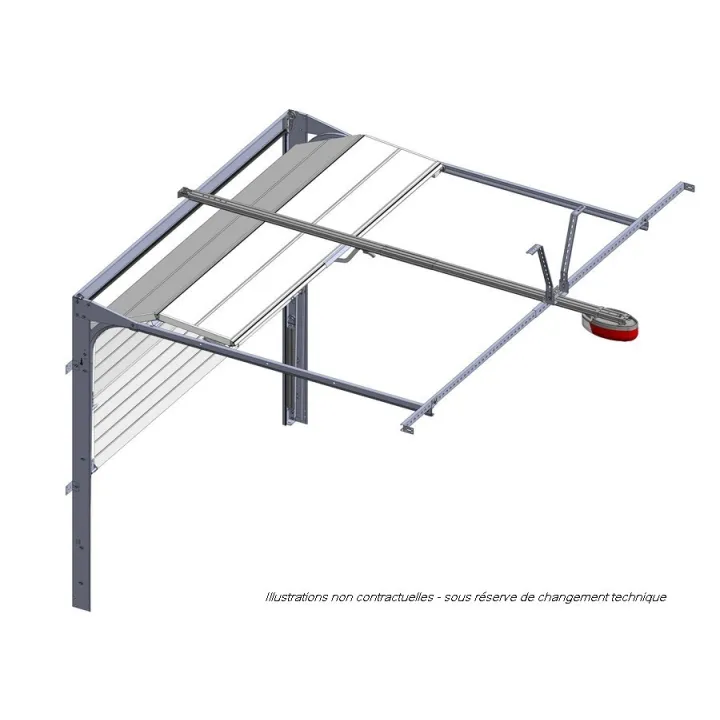

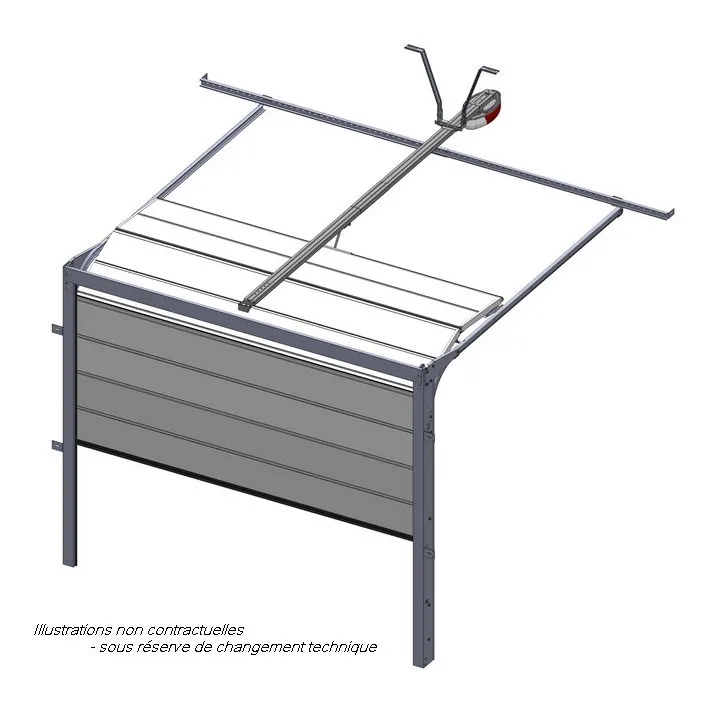

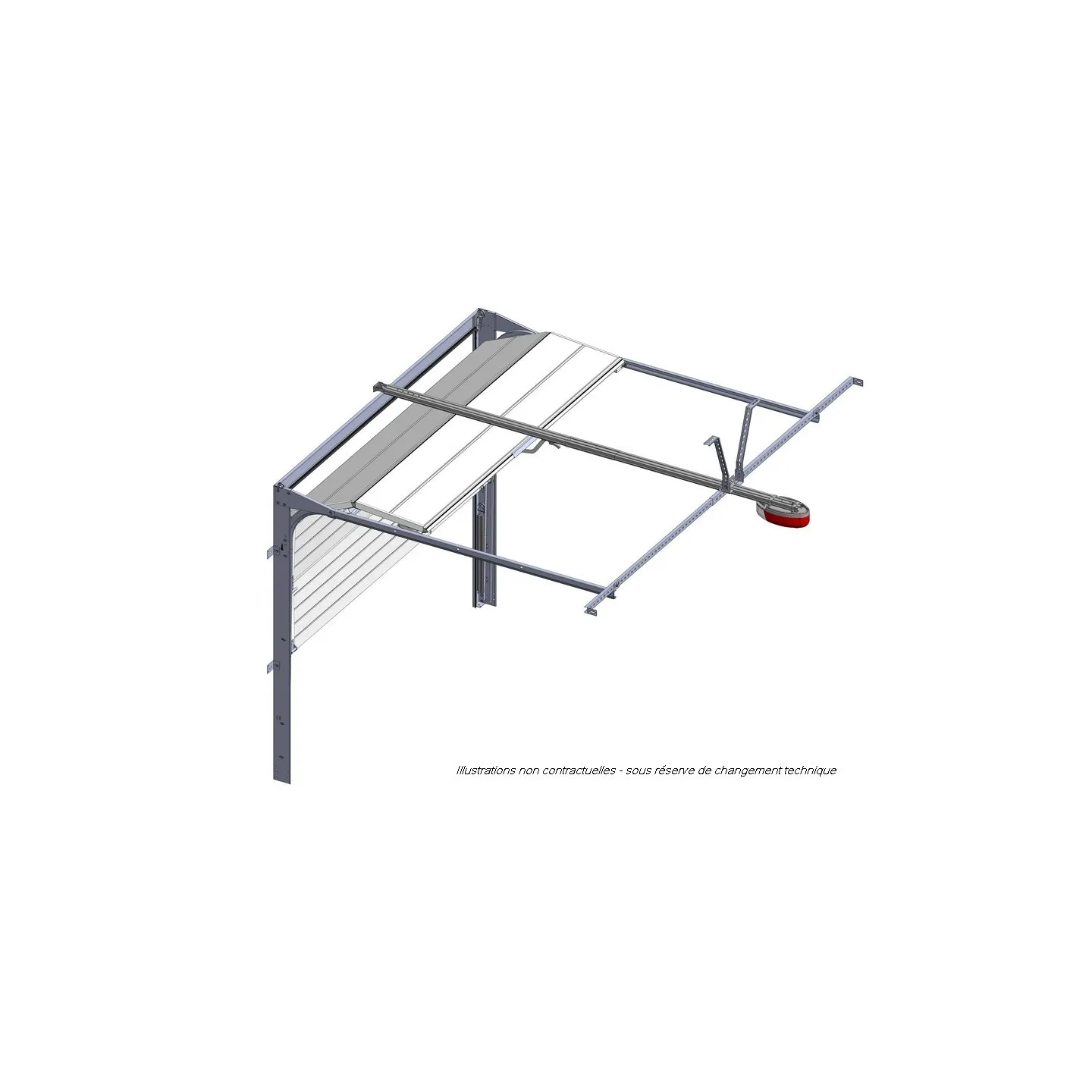

Garage door 60mm insulated sectional and motorized, 2 steel faces 0.35mm polyurethane foam 60 mm.

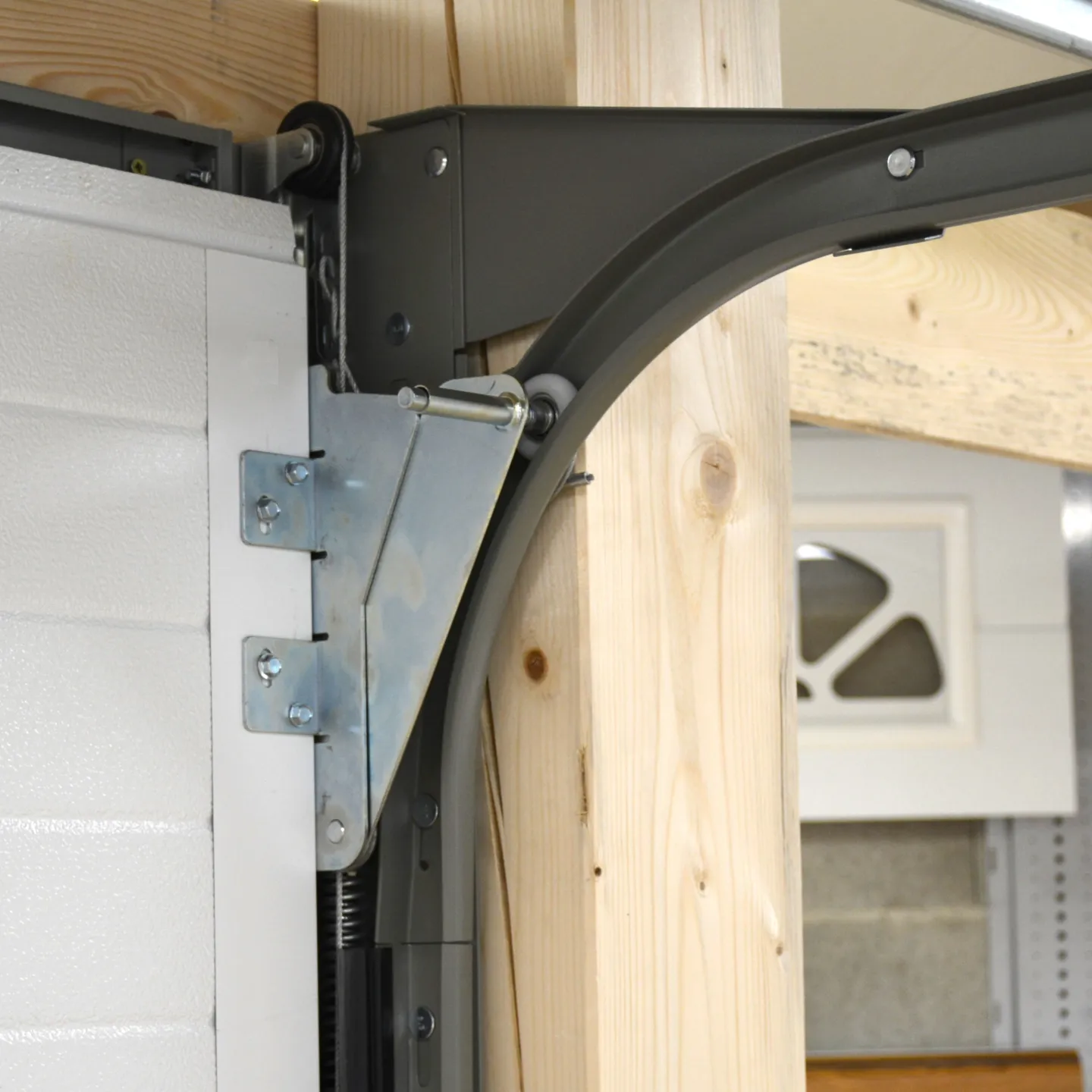

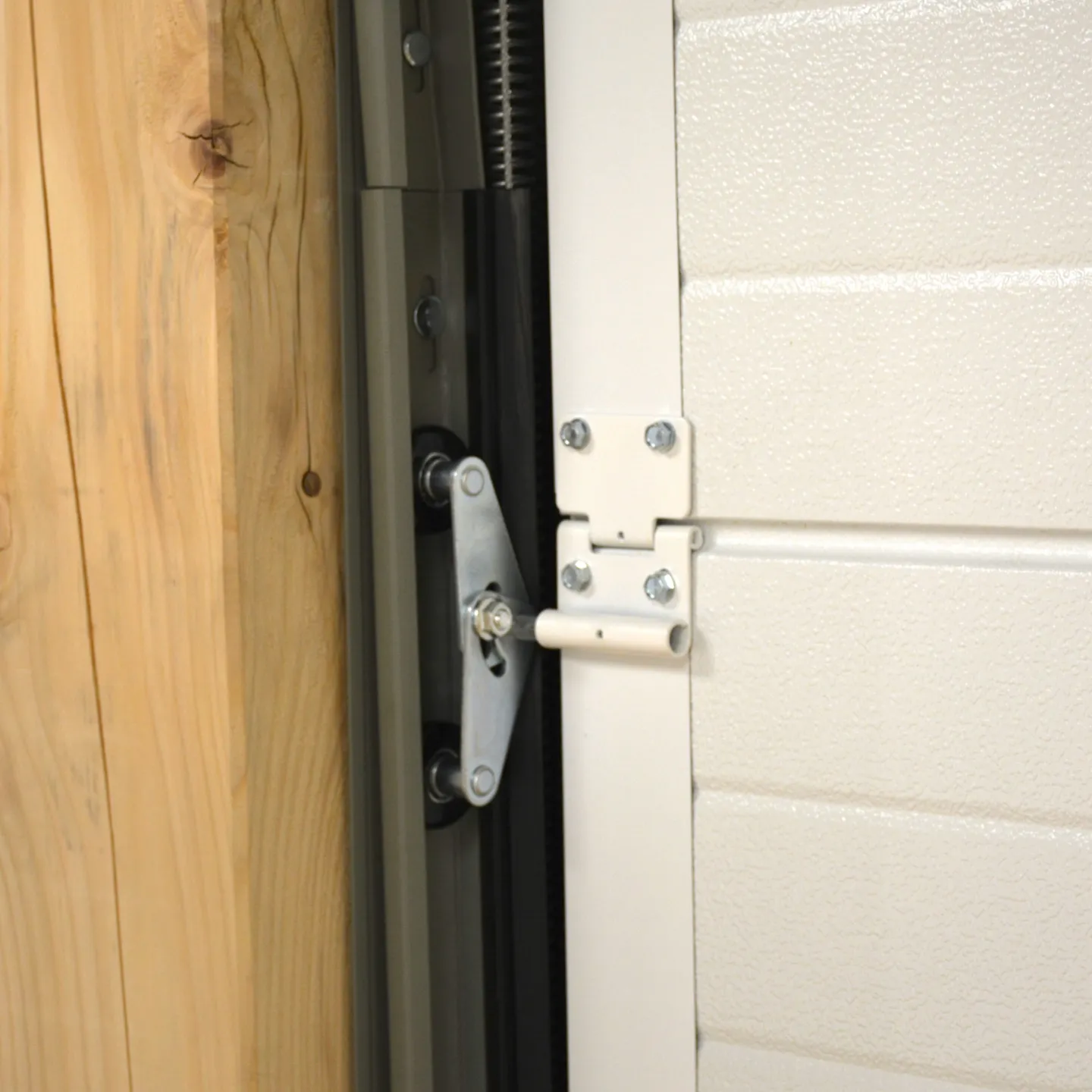

This Sessanta sectional door comes with ball-bearing tandem rollers and adjustable vertical rails. This allows for very precise adjustment during installation. The pulleys of the spring tension balancing system are made of steel overmolded with nylon and equipped with ball bearings. This ensures silent operation over time. The door frame is powder-coated in the color of the panels or in another color of your choice.

Regarding insulation, the frame is also insulated with a thickness of 40mm to minimize thermal bridging. The epdm bottom seal will fit the threshold to prevent air from seeping under the door. Your car will be able to stay warm ;)

This garage door is delivered to you in a pack (assembled in the factory and then partially disassembled) with an illustrated assembly manual in French, written by our design office (see Documentation tab).

Thermal resistance coefficients

Ud = 0.51 W/m²K for the panel alone

Ud = 0.90 W/m²K for the complete curtain (= assembled panels)

Ud = 1.43 W/m²K for an installed door, considering installation on a standard support

Measurement of sectional garage door
French-made garage door

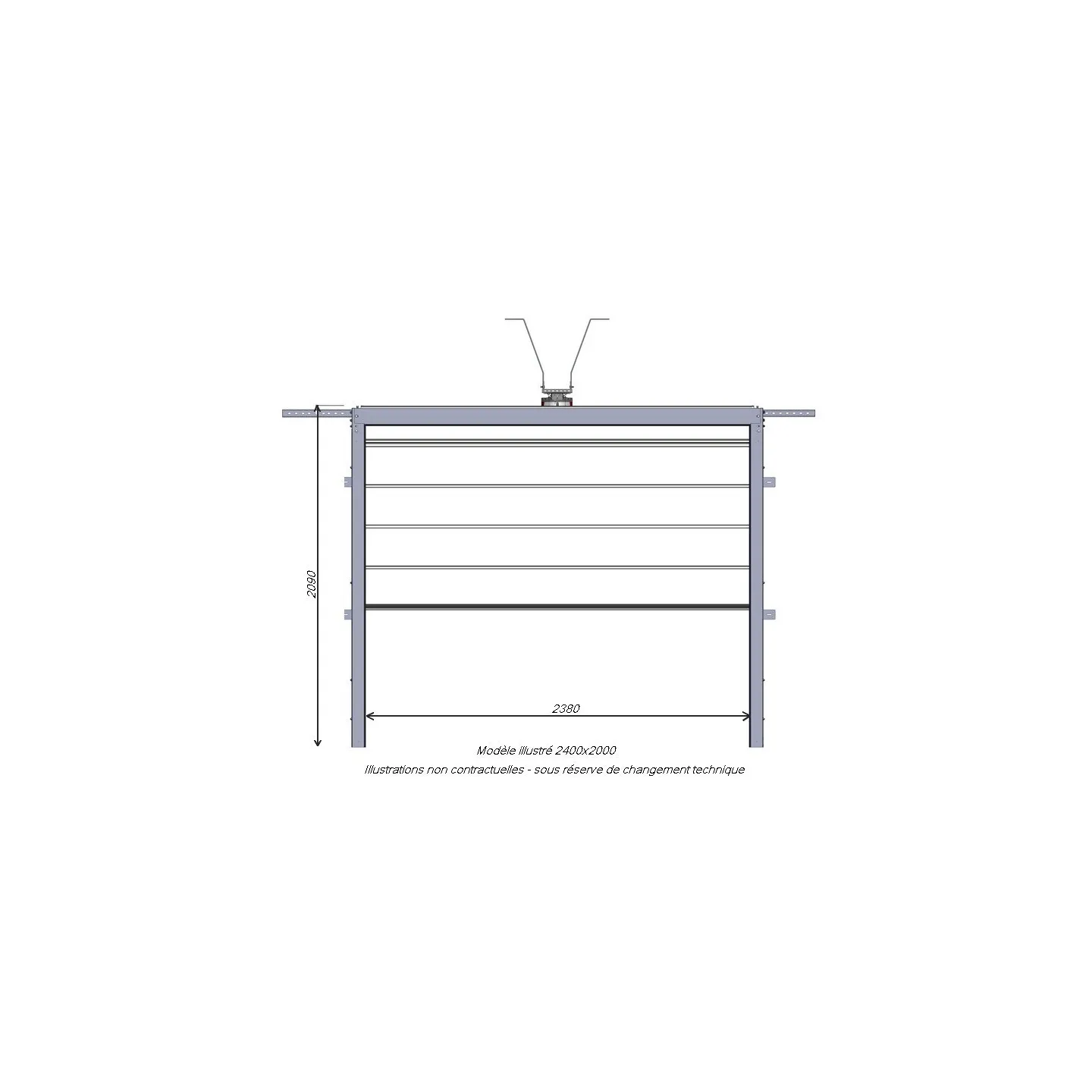

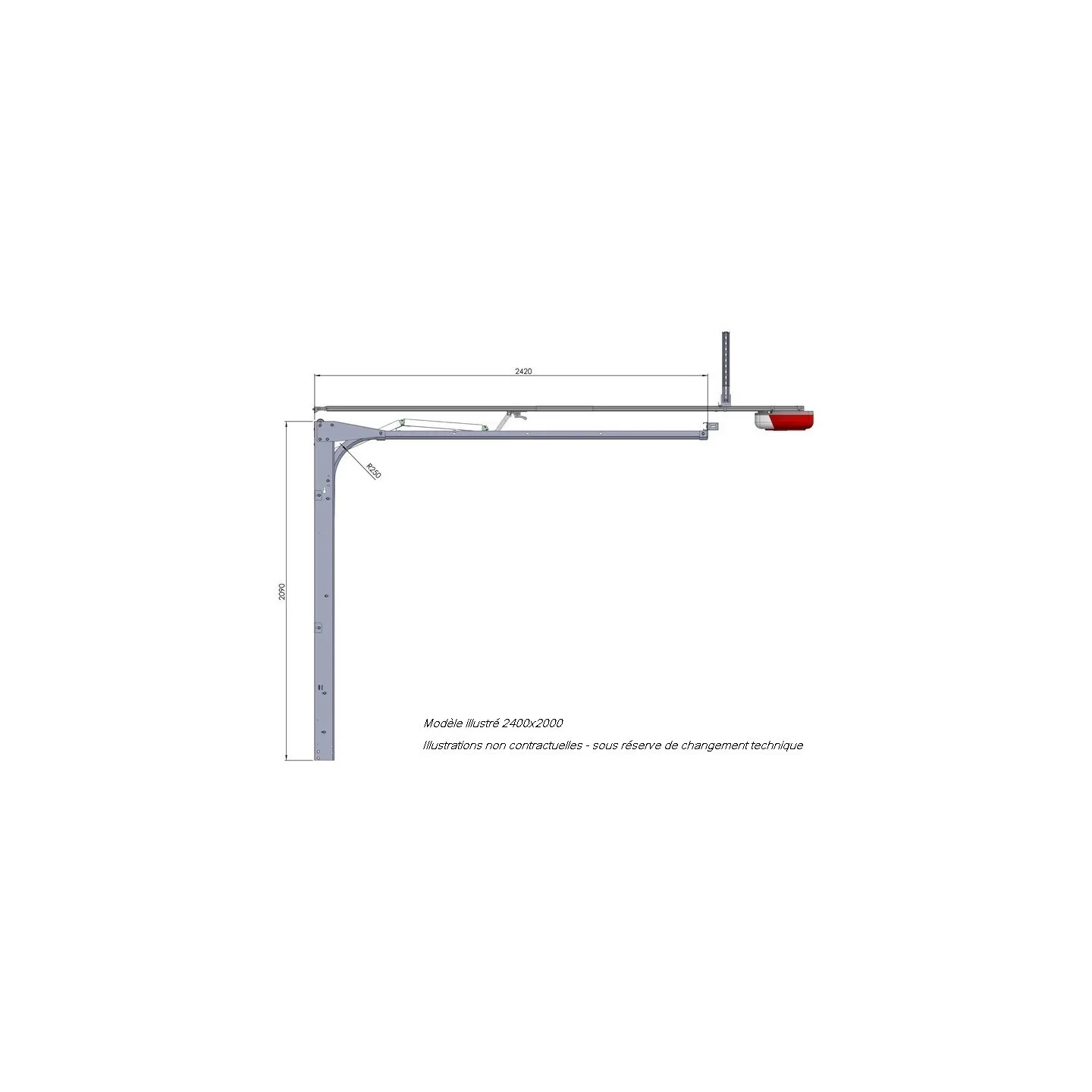

Dimensions

Available in 10 standard sizes:

  • L2400 / 2500 / 3000 / 4000 / 5000 mm and H2000 / 2125 mm

or custom-made:

  • Width from 2000mm to 5000mm
  • Height from 1700mm to 3000mm

The jambs must be at least 75 mm to install this sectional door (see measurements 3 and 4 on the sizing diagram). The lintel drop must be at least 150 mm (measurement 5 on the diagram).

The + products

  • Thermal and sound insulation (almost) perfect
  • Highly resistant break-in panels.
  • A meticulous finish

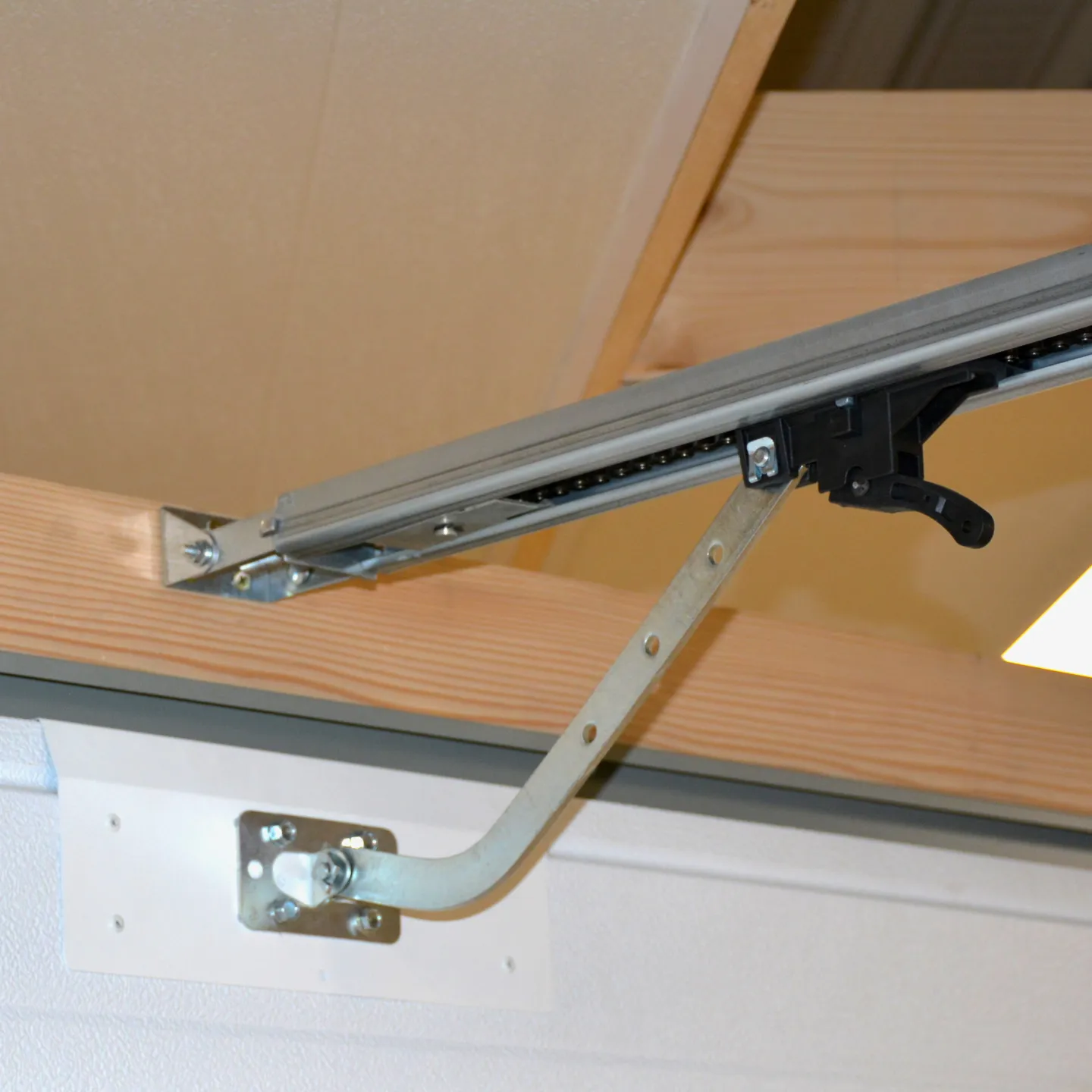

  • Fully mechanical anti-lift security on the motor
  • No exterior overhang
  • Robust steel mechanics

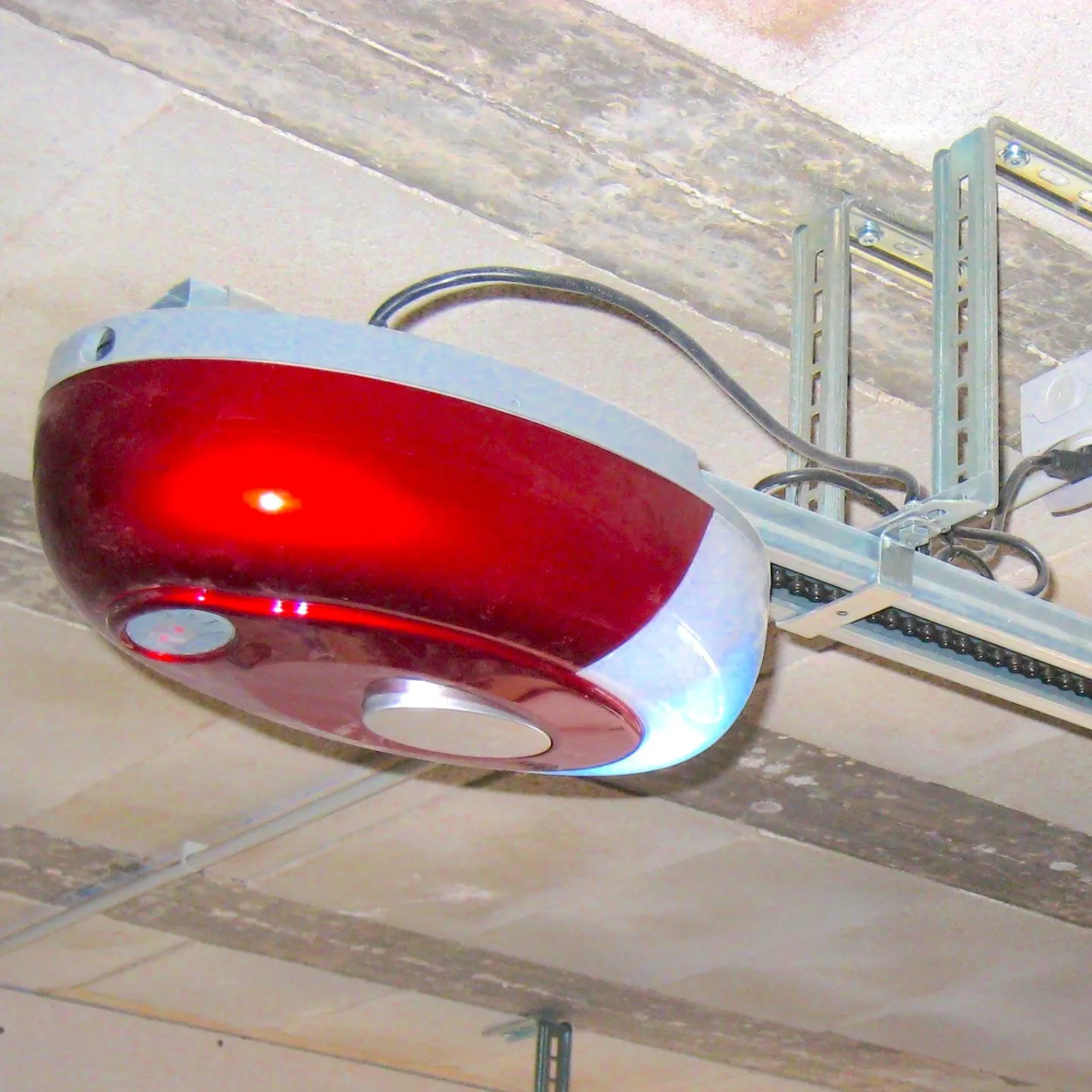

  • Motorized with 2 remote controls & very simple settings
