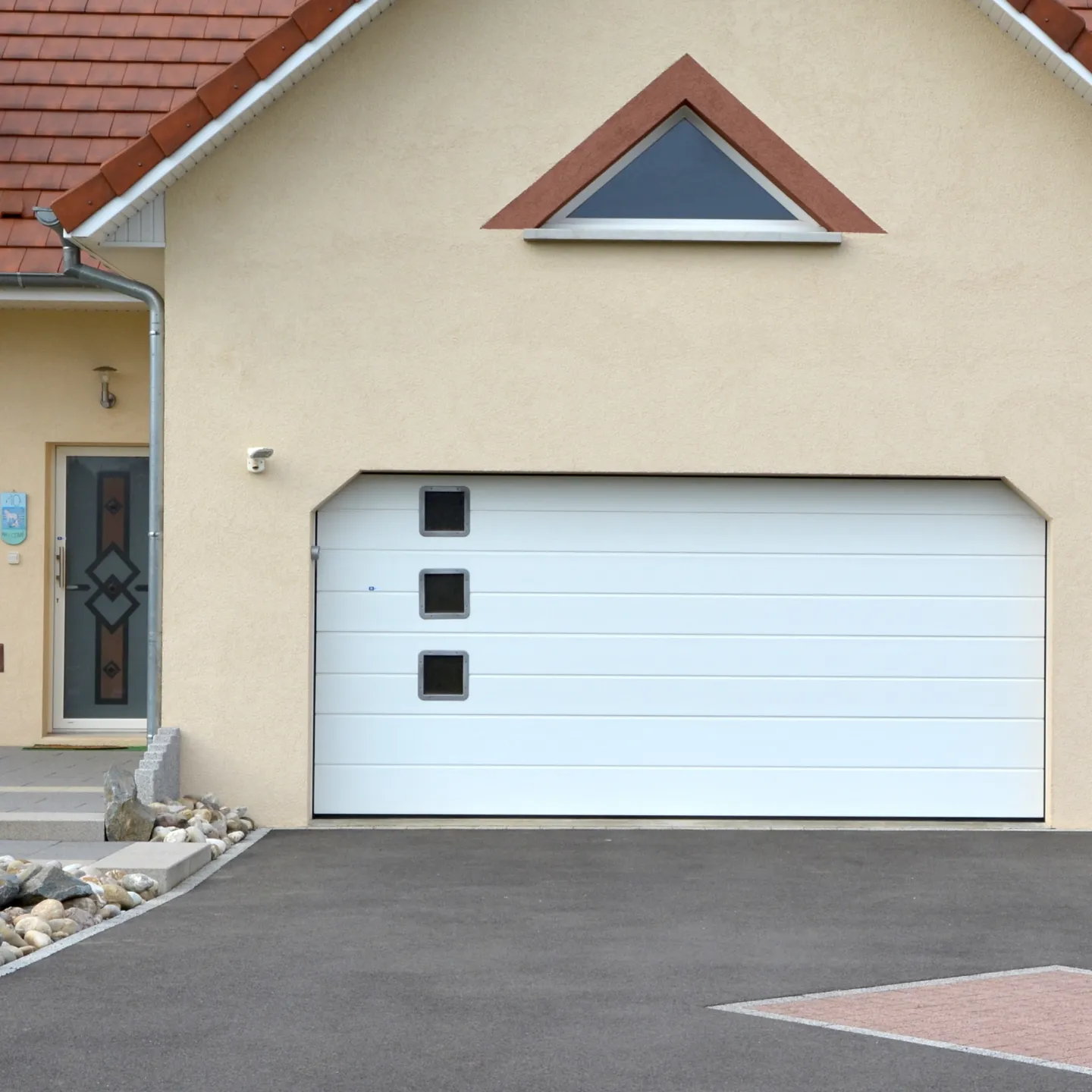

Bi-Place - Sectional garage door

The Bi-place sectional door and its 60mm insulated panels allow you to obtain a door up to 5 metres wide for a moderate price.

This insulation, which is higher than the market standard (60 vs 40mm), offers increased panel rigidity and therefore excellent resistance over large widths.

These sectional doors are delivered as a pack (factory assembled and partially disassembled).

Price: €1,776.00
Tax included

Need help ?

Chat with us !

Secure payement

Credit card - PayPal - Bank transfer

Pay in 3 times for free

from 150€ of purchase, by paying by credit card

Documentation

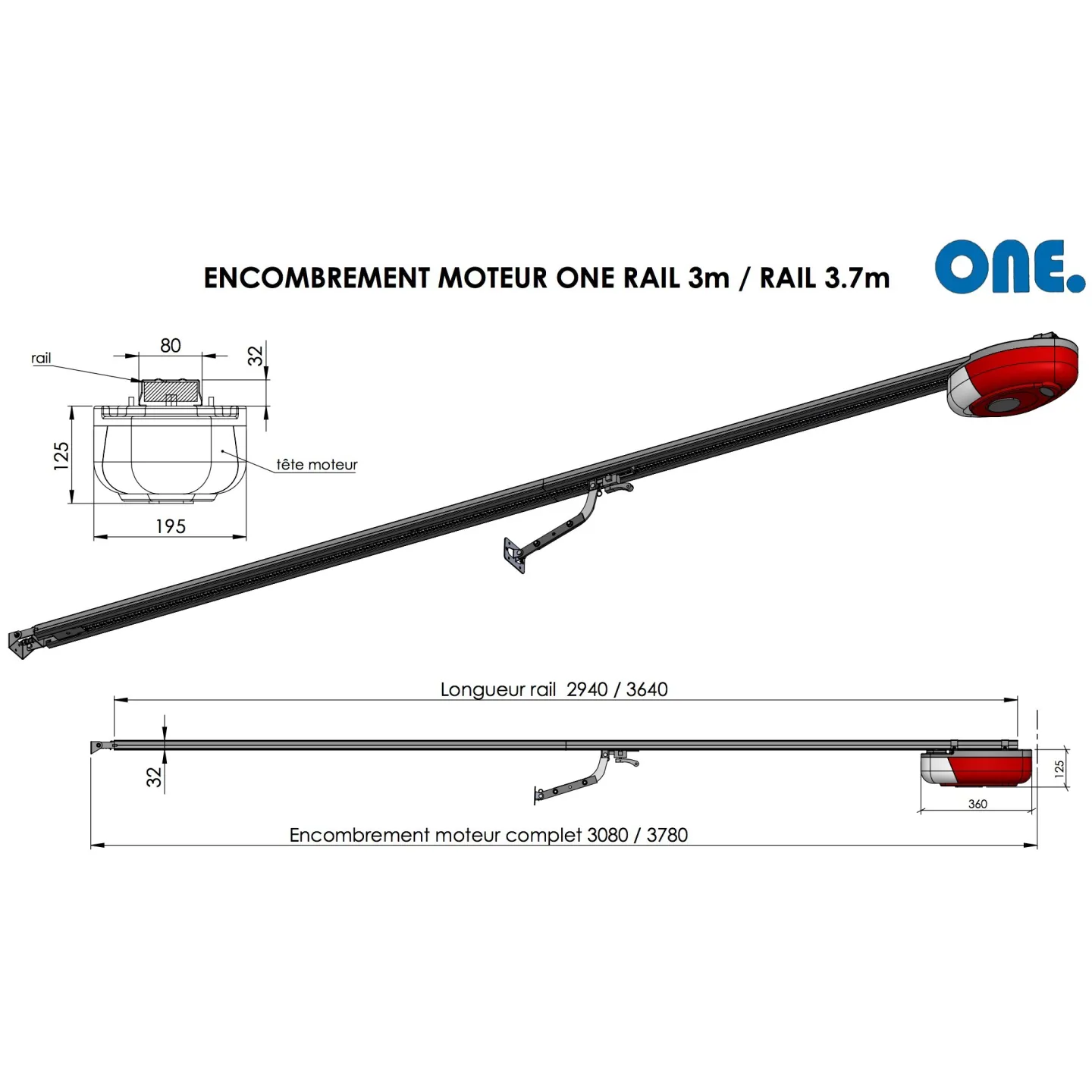

POSE INSTALLATION ENGINE ONE (FR

One 600 Engine Installation Manual, One 1000 and One 1200

Installation instructions Secura

Installation Guide for Securora doors delivered in Pack

Installation instructions Secura

Installation guide for pre-mounted Secura doors

Bi-place measurement sheet (FR)

Measurement sheet for quotation and dial-up order

Garage door configurator presentation image

Configure your garage door and get a free quote

Create a garage door to your liking with our interactive configurator.

You can choose from all our ranges of up-and-over and sectional doors.

In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.

10-year warranty

Our guarantees

The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.

Learn more

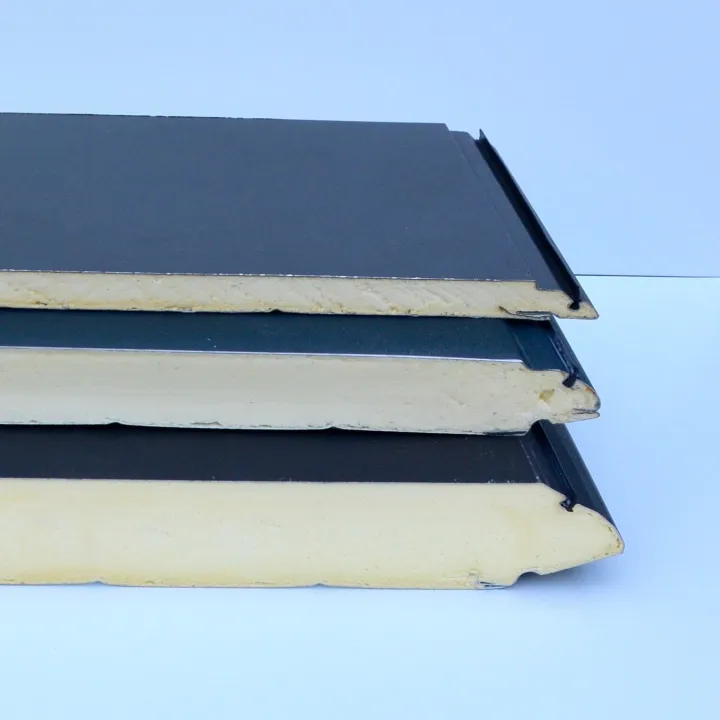

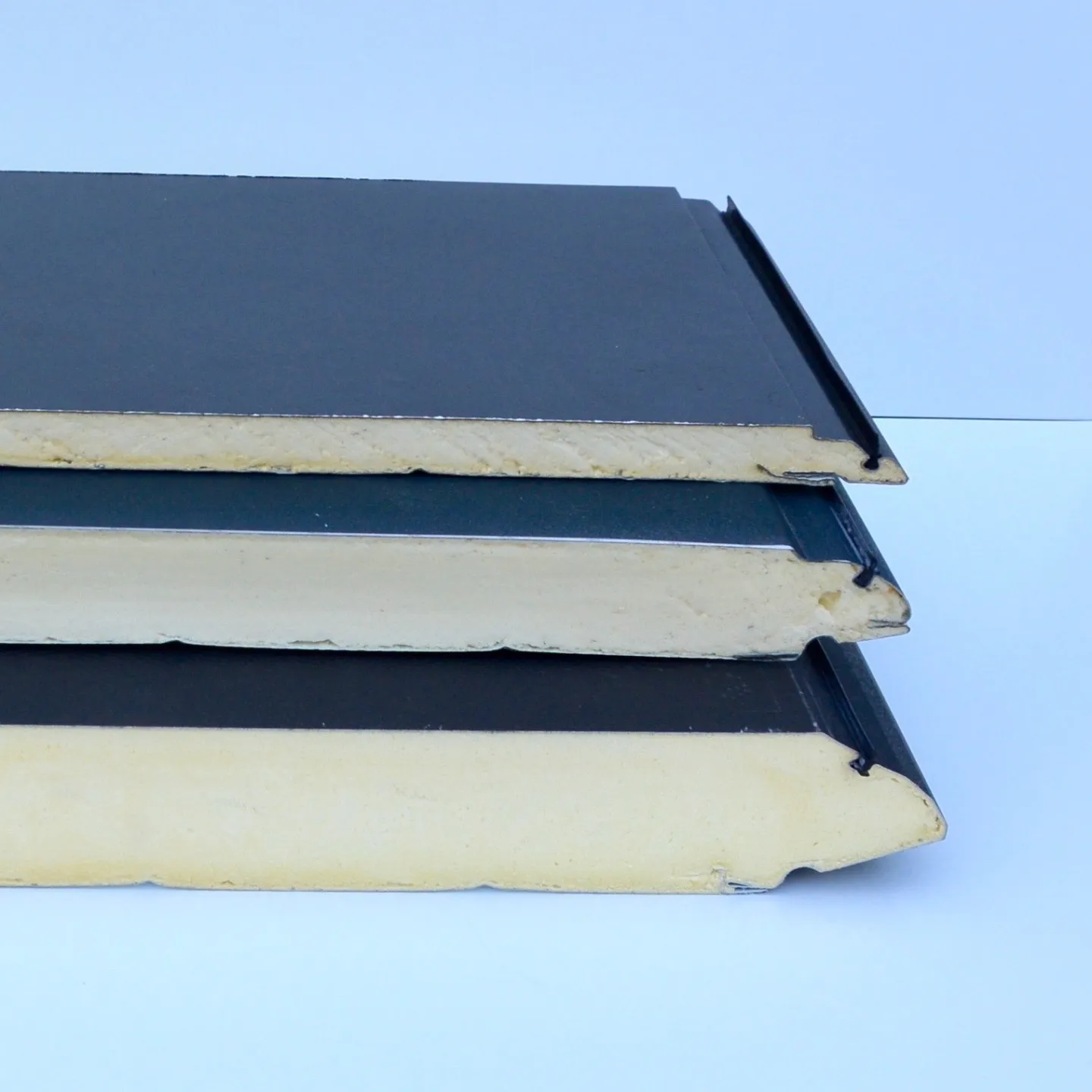

Insulating sectional garage door 60mm insulated, 2 steel faces 0.35mm polyurethane foam.

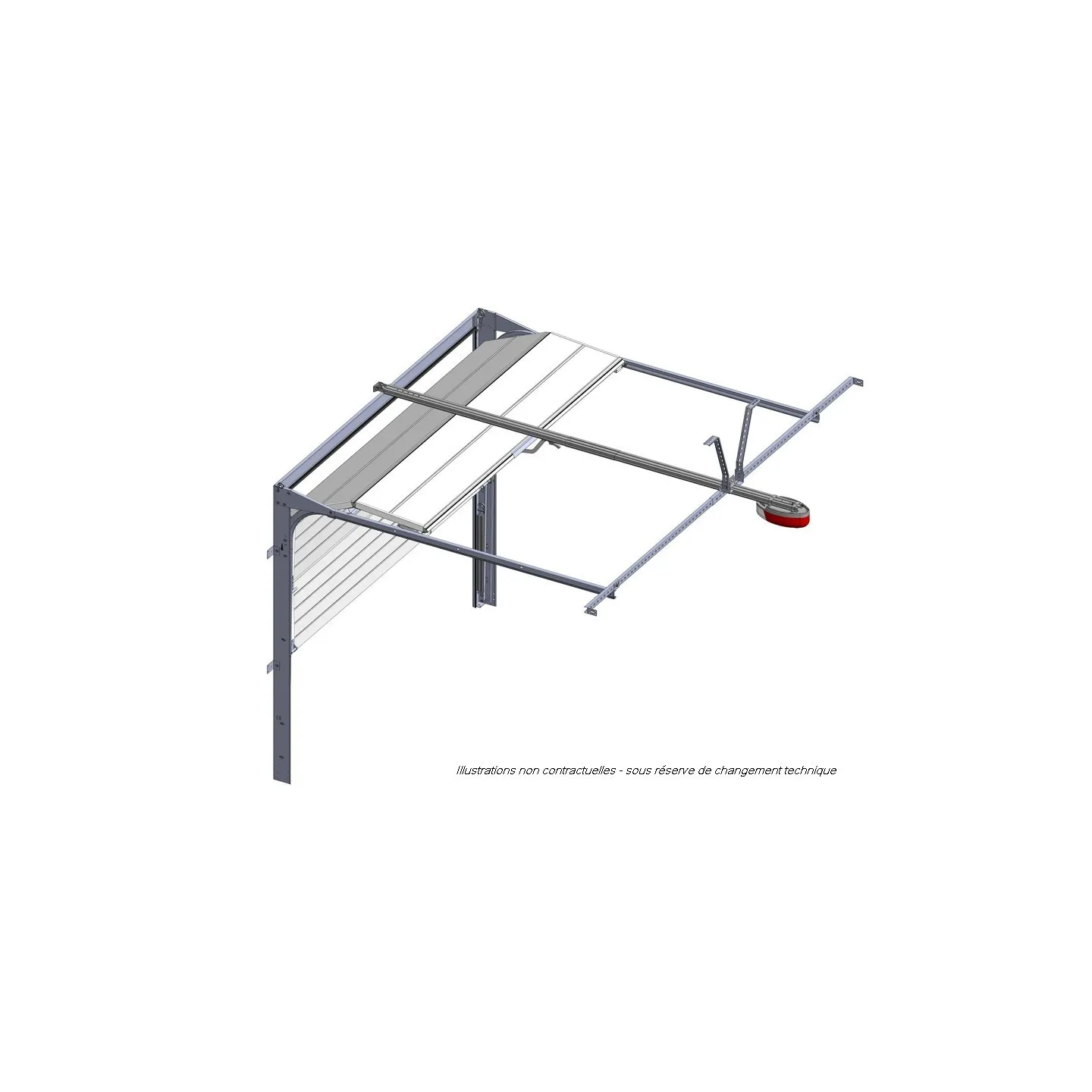

This sectional two-car garage door is delivered with ball-bearing or double rollers for custom heights. The pulleys are made of steel overmolded with Nylon for extended lifespan. At the bottom of the door, an EPDM bead seal ensures maximum insulation, coupled with 60mm thick panels. This seal also allows for the absorption of slight ground deformations under the door.

This sectional door is delivered to you in a pack (fully assembled in the factory then partially disassembled for transport) with an illustrated assembly manual in French, drafted by our design office (see Documentation tab).

Thermal resistance coefficients

Ud = 0.51 W/m²K for the panel alone

Ud = 0.90 W/m²K for the complete curtain (= assembled panels)

Ud = 1.43 W/m²K for an installed door, considering installation on a standard support

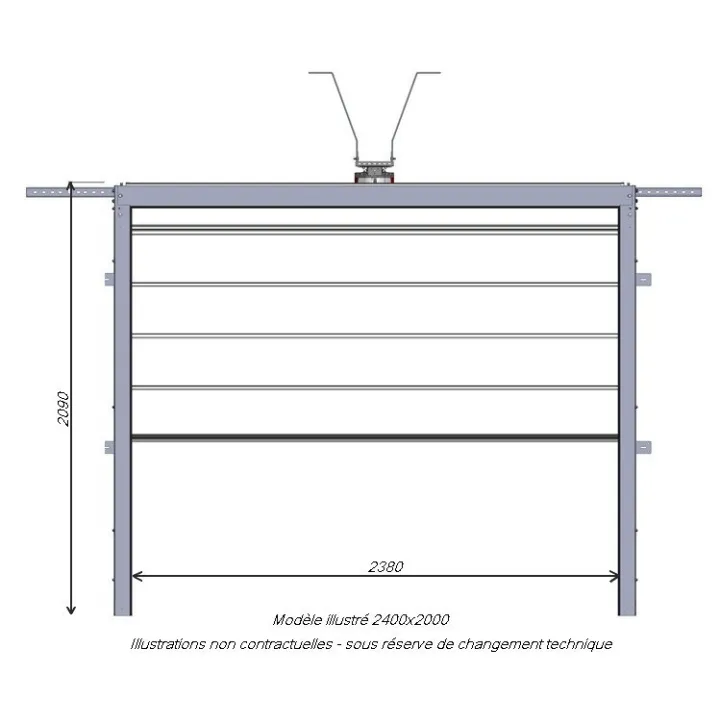

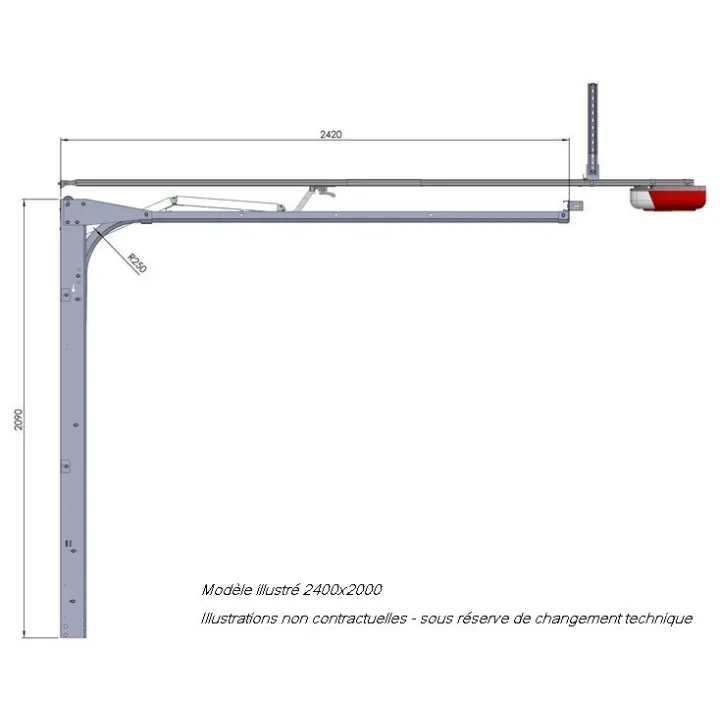

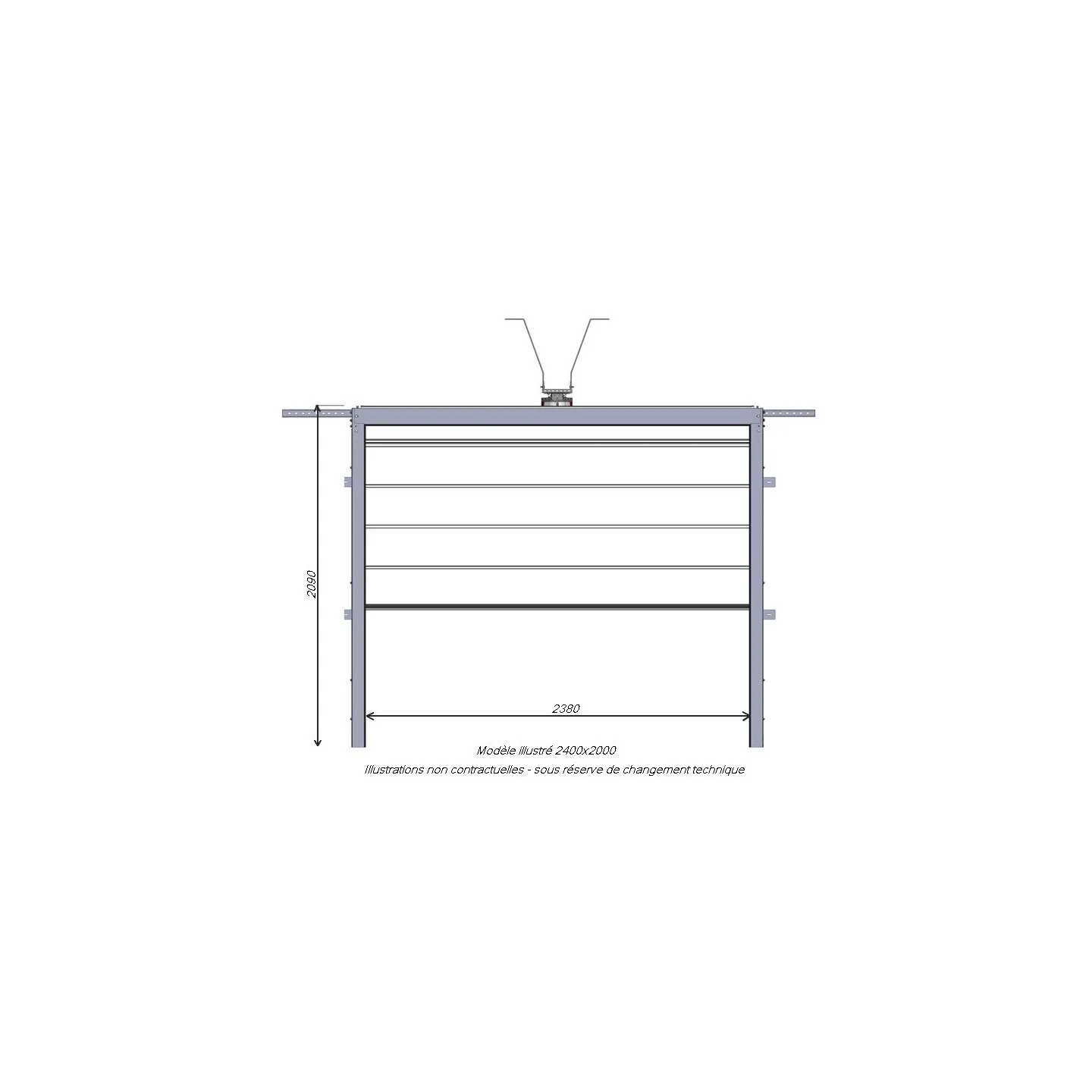

Measurement of sectional garage door
French-made garage door

Dimensions

Available in 10 standard sizes:

  • L2400 / 2500 / 3000 / 4000 / 5000 mm and H2000 / 2125 mm

or custom-made:

  • Width from 2000mm to 5000mm
  • Height from 1700mm to 2500mm

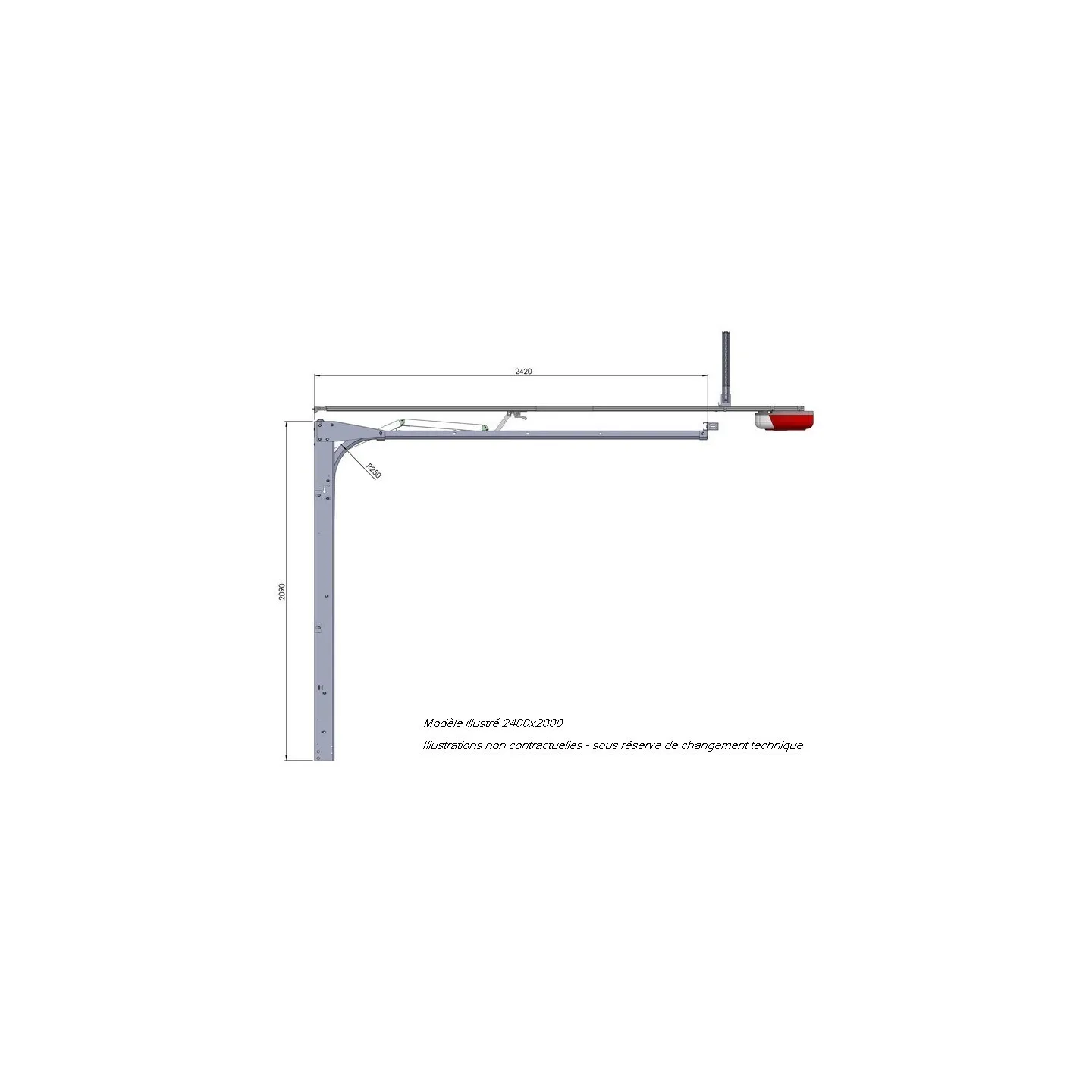

The side room must be at least 75 mm to install this sectional door (see dimensions 3 and 4 on the measurement diagram). The lintel drop must be at least 150 mm (measurement 5 on the diagram).

The + products

  • Excellent thermal and sound insulation with 60mm panels
  • A very wide door

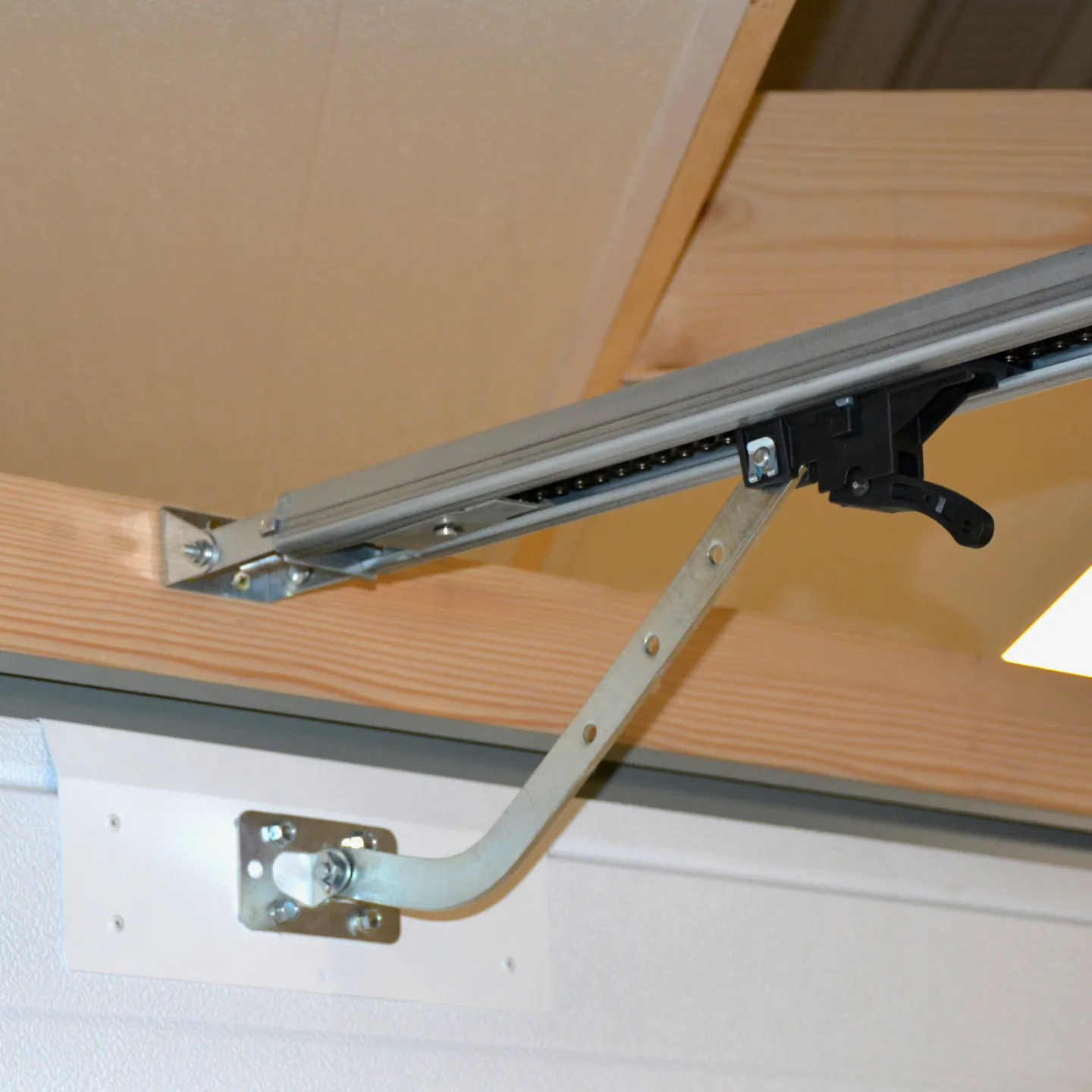

  • Fully mechanical anti-lift security on the motor
  • No external overflow
  • Robust steel mechanics

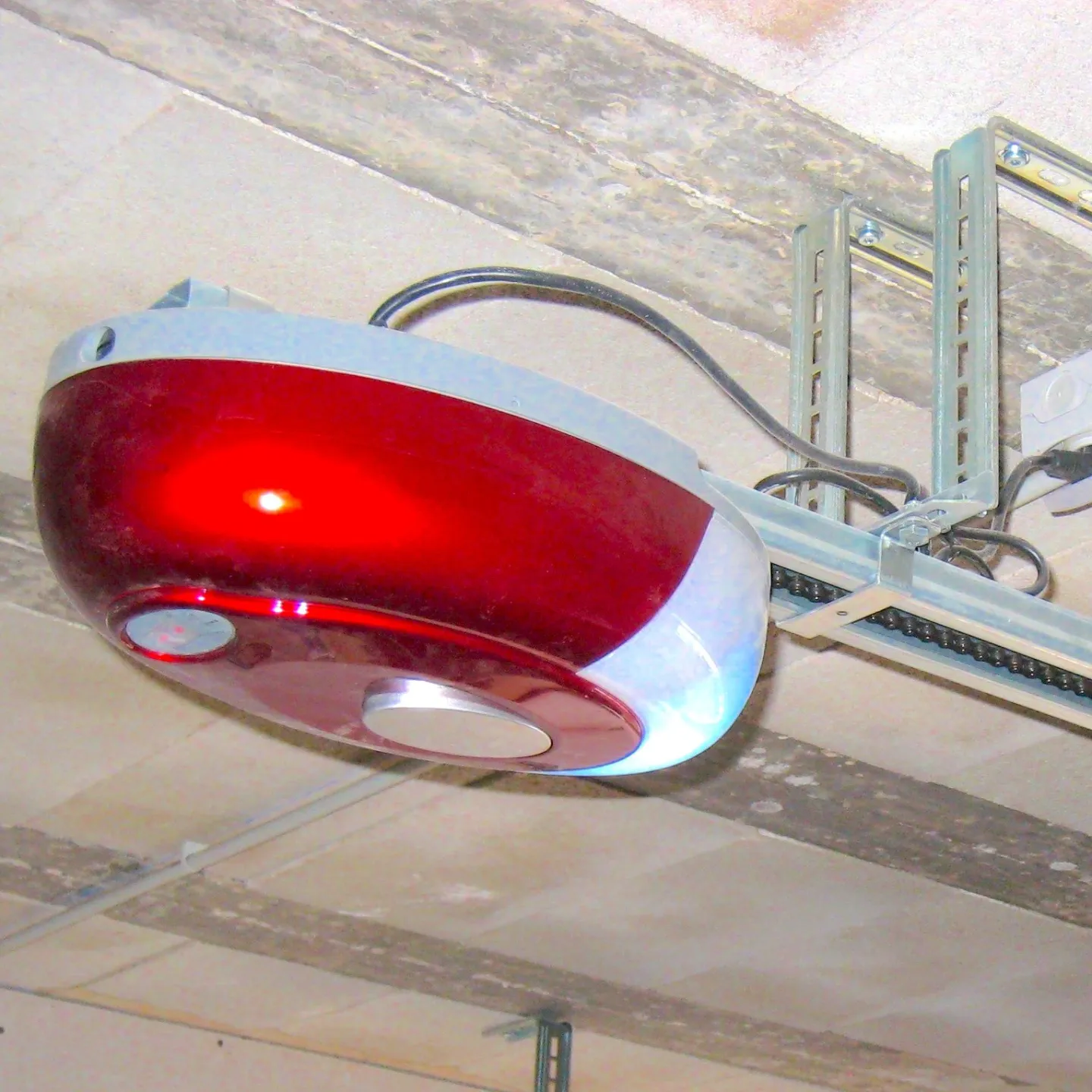

  • Motorized with 2 remote controls and very simple settings
