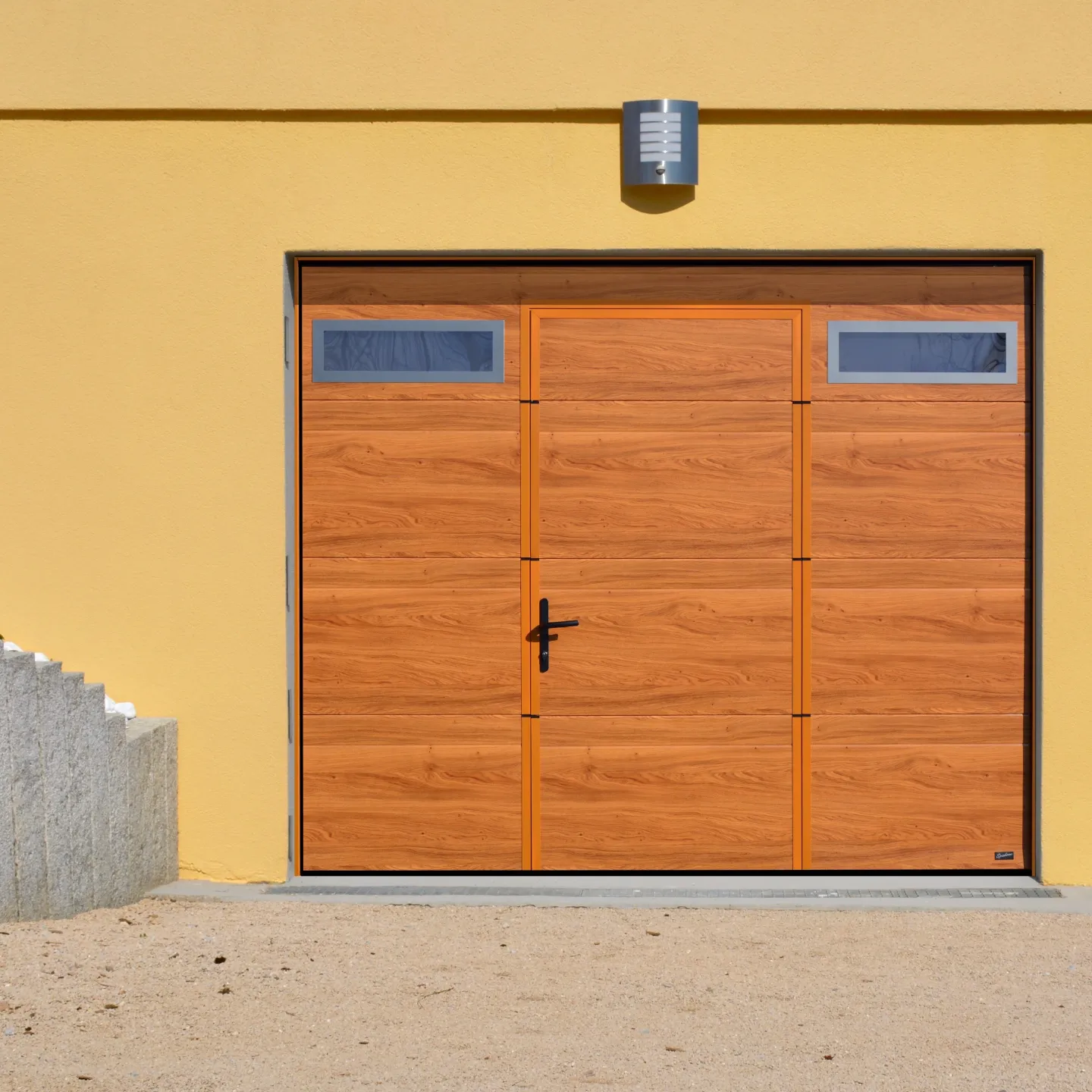

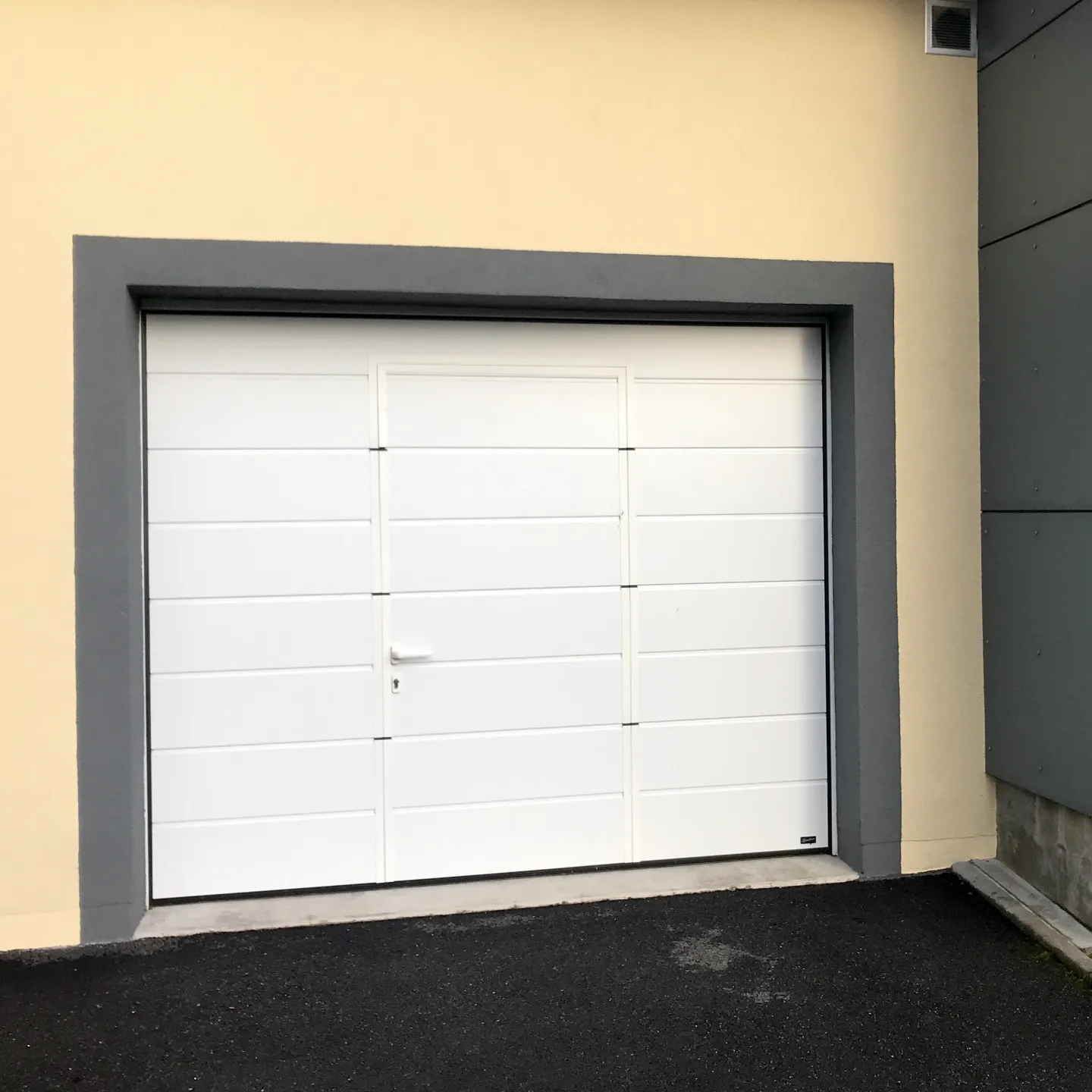

Isola - Sectional garage door with wicket door

This sectional door with wicket door is an evolution of our renowned Isola sectional door.

As for the original version without wicket door, it is motorized and insulated 40mm.

It is a door delivered pre-assembled (completely assembled in the factory) or in a pack (assembled in the factory then partially disassembled) depending on the dimensions.

This door is also available in a version without a wicket door.

Price: €3,240.00
Tax included

Need help ?

Chat with us !

Secure payement

Credit card - PayPal - Bank transfer

Pay in 3 times for free

from 150€ of purchase, by paying by credit card

Documentation

POSE INSTALLATION ENGINE ONE (FR

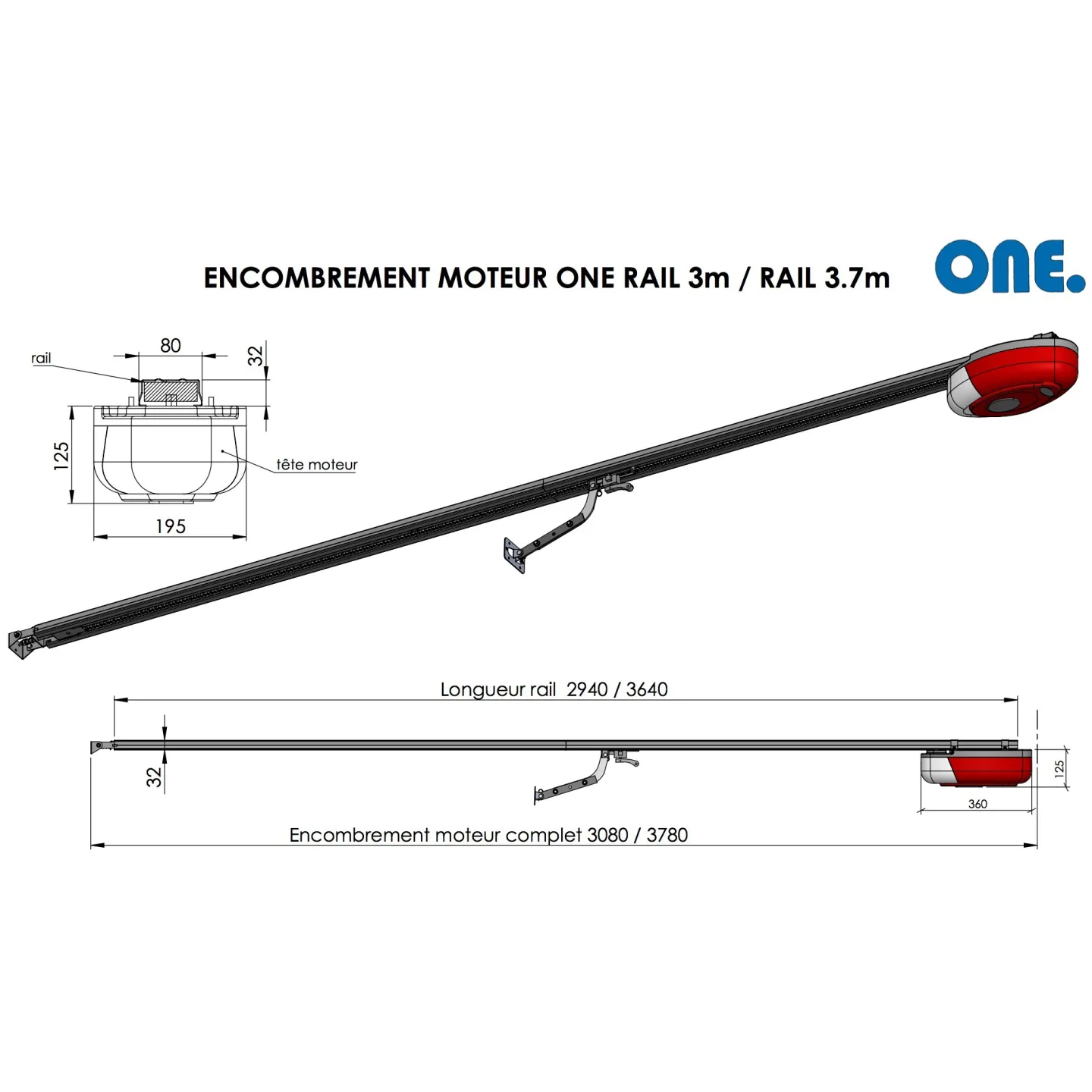

One 600 Engine Installation Manual, One 1000 and One 1200

Installation instructions Isola

Isolated sectional door mounting guide pre-assembled

Installation instructions Isola

Isolated sectional door mounting guide in Pack

Types of panels (FR)

List of aesthetics of possible panels in ISO 40 and ISO 60mm

Measurement sheet door isola (FR

Measurement sheet for Quotation and Order Door Isola

Garage door configurator presentation image

Configure your garage door and get a free quote

Create a garage door to your liking with our interactive configurator.

You can choose from all our ranges of up-and-over and sectional doors.

In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.

10-year warranty

Our guarantees

The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.

Learn more

Garage door sectional with insulated wicket door 40mm with sandwich panels with 2 steel faces 0.35mm and polyurethane foam.

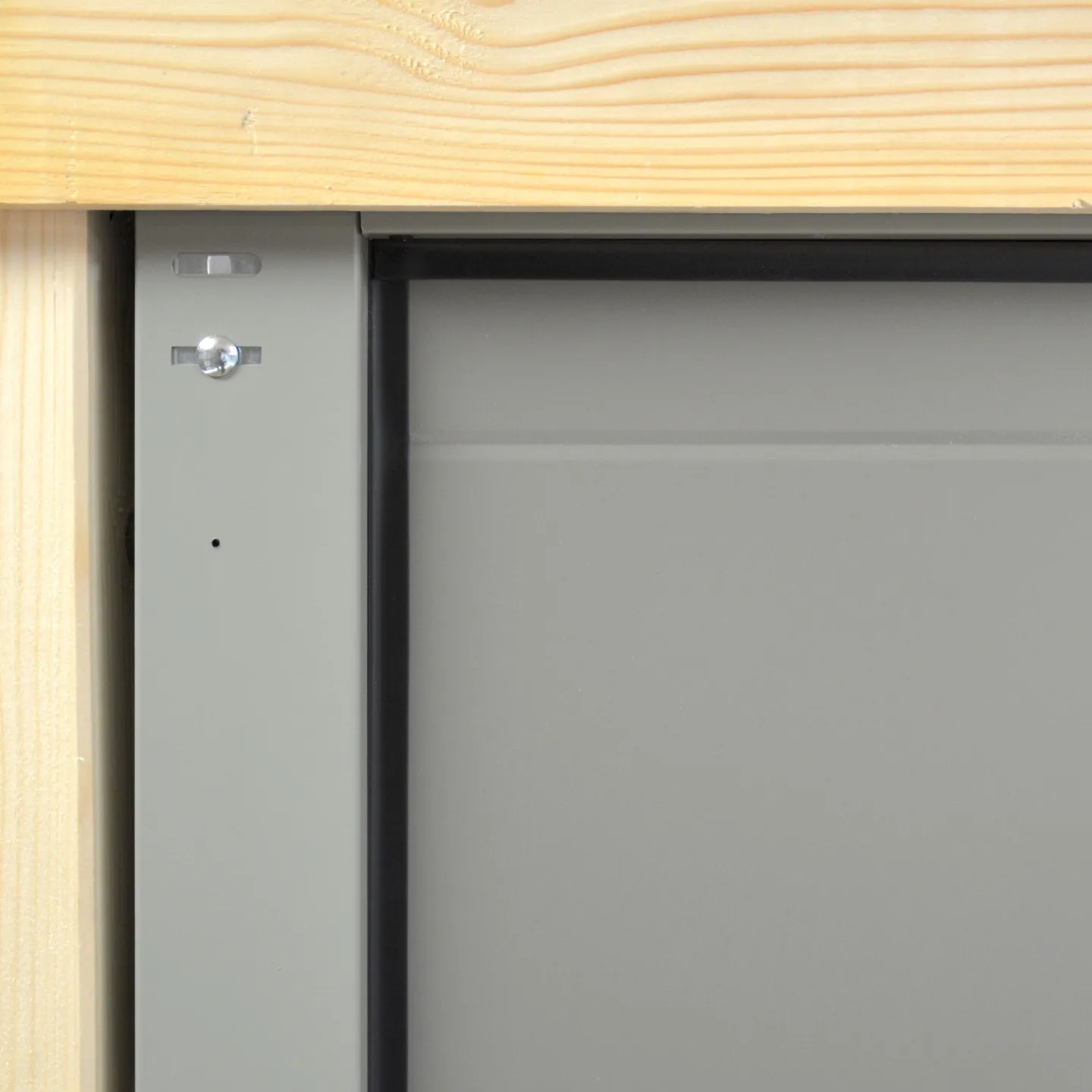

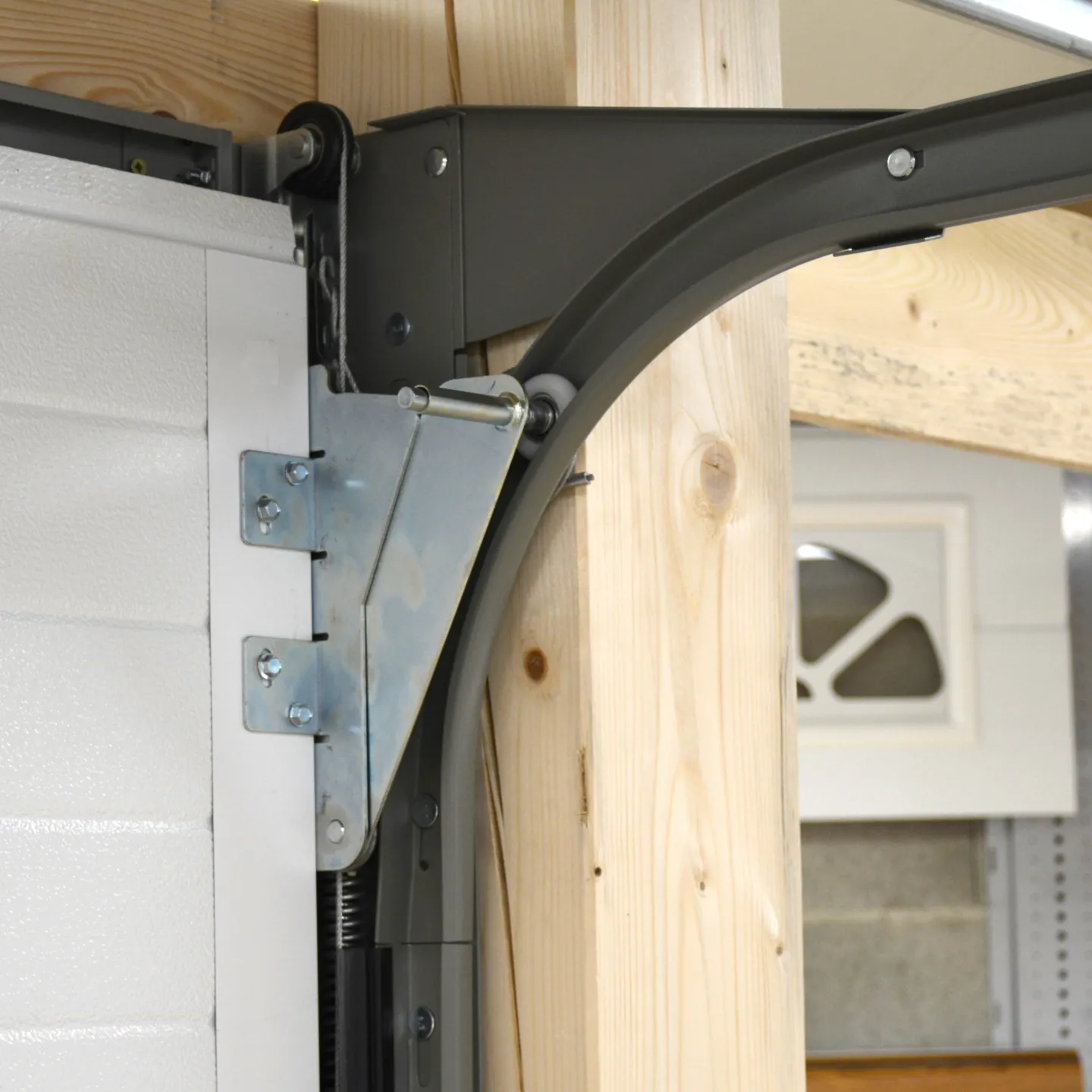

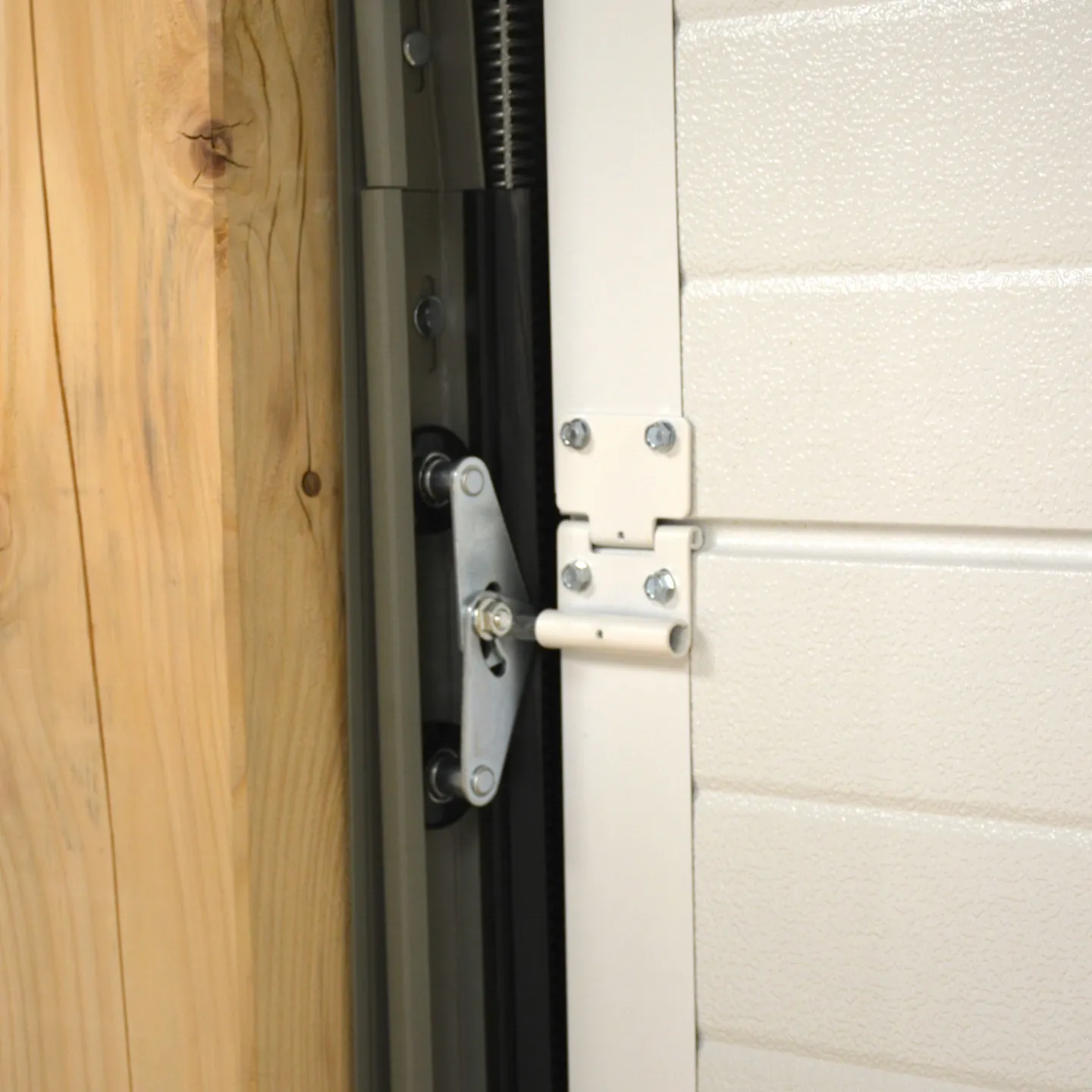

All the advantages of the Isola sectional door are found in this model with a wicket door. The frame (the casing) is powder-coated in the color of the door or in another color of your choice. The tandem rollers and nylon overmolded pulleys come with ball bearings. The flexible side seals and the bottom door seal complete the insulation of the 40mm panels. All the accessories facilitating installation are included with this model.

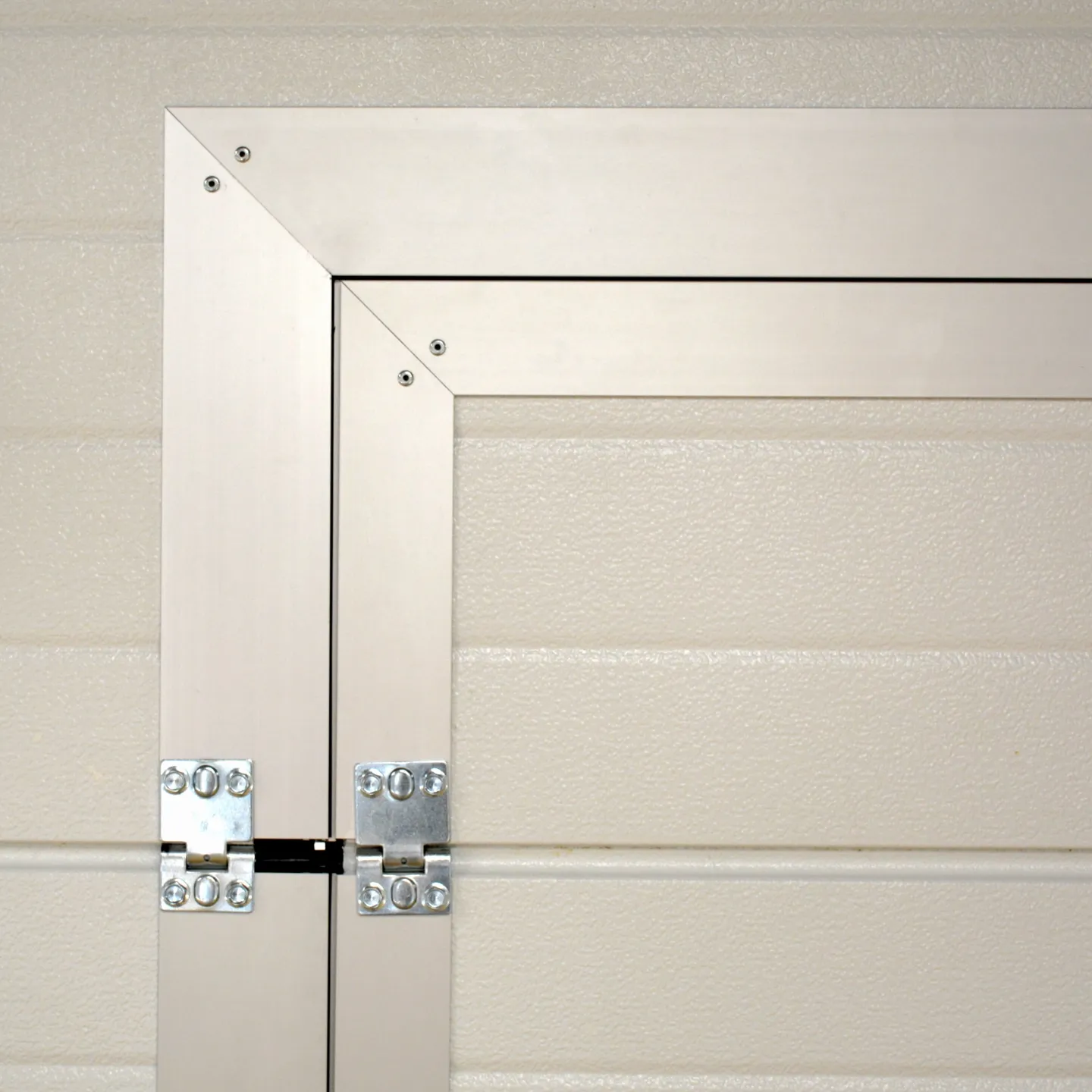

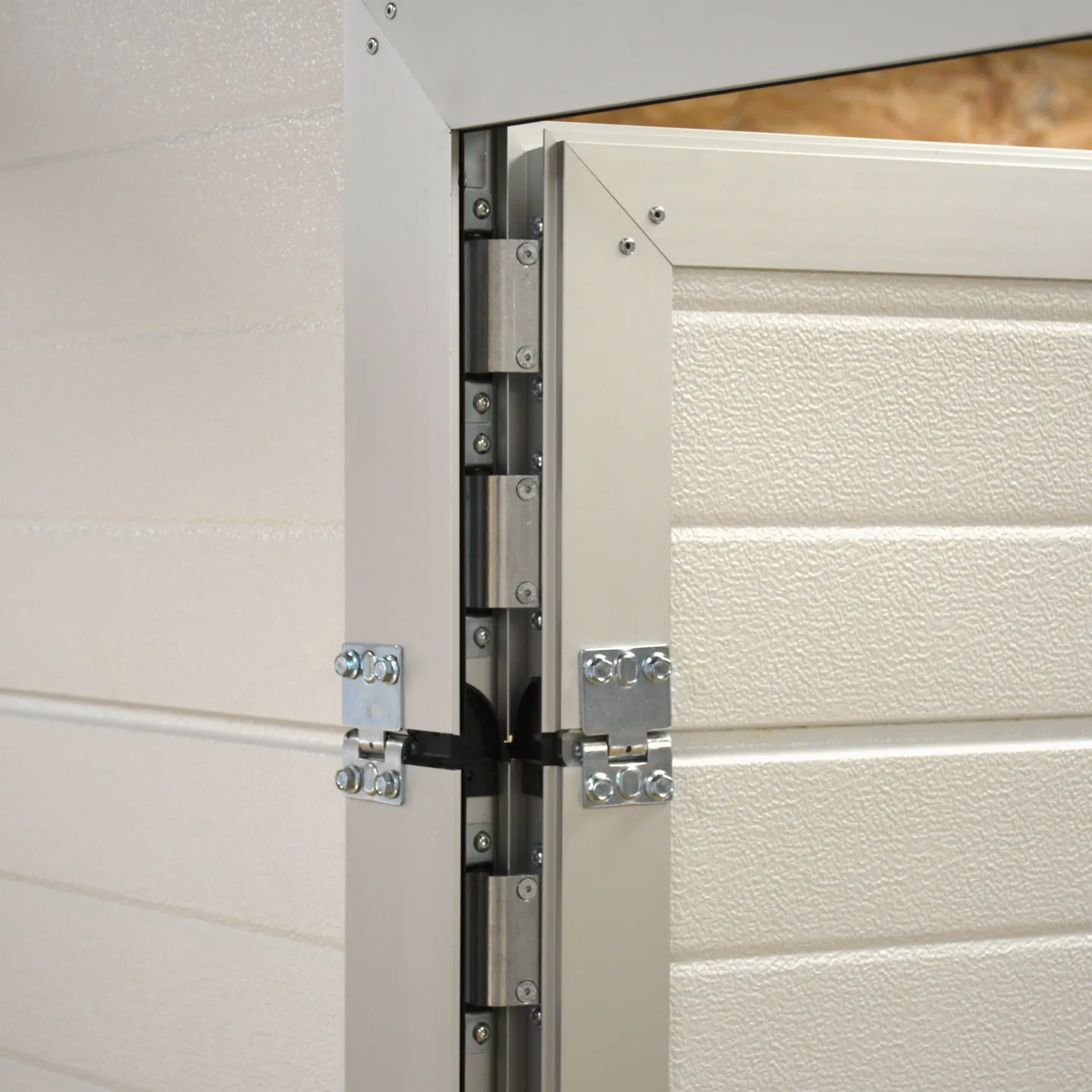

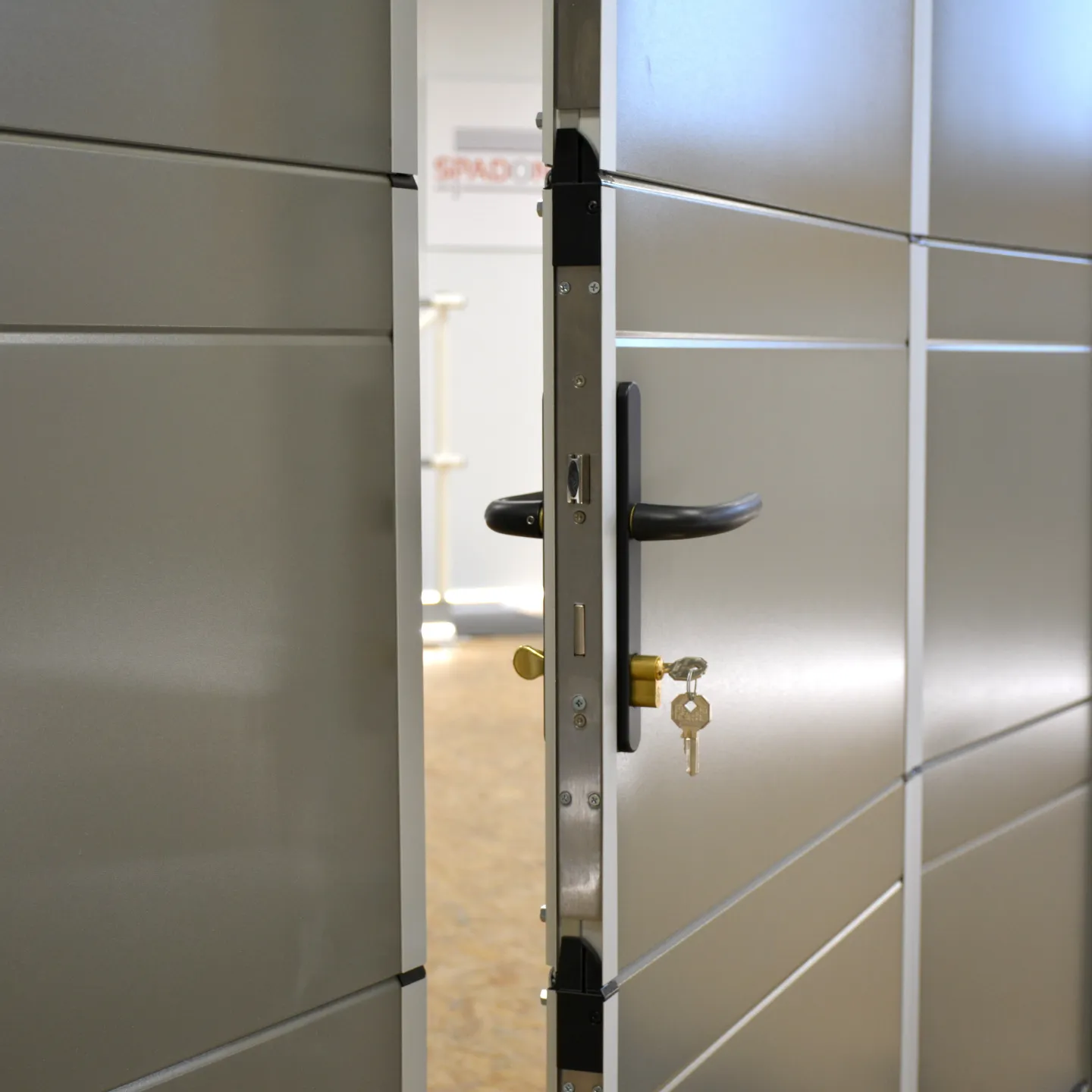

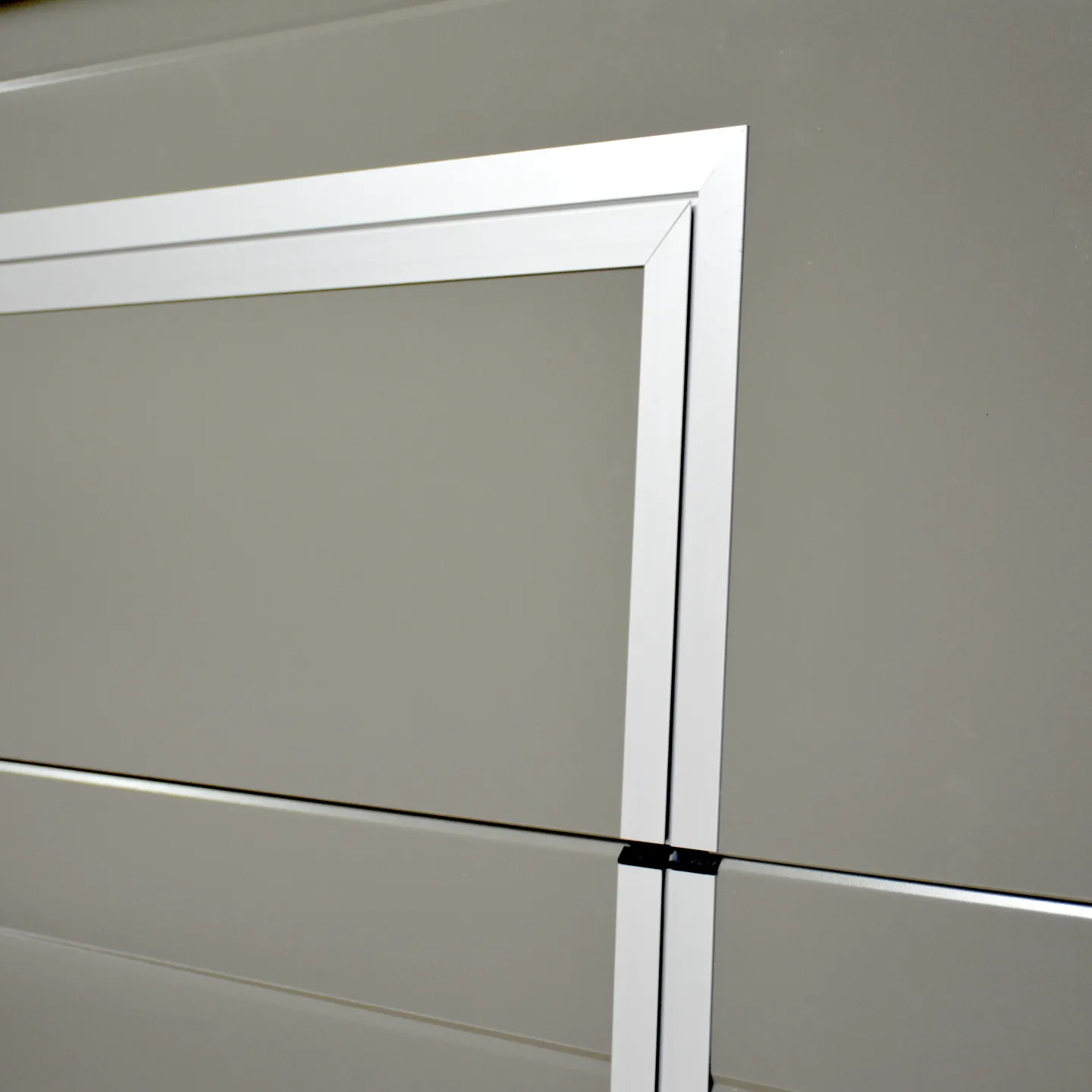

The central wicket door is equipped with a 5-point lock for maximum security. The frame of the wicket door is made of anodized aluminum, powder-coated in the color of the panels to blend in with the door and be as discreet as possible.

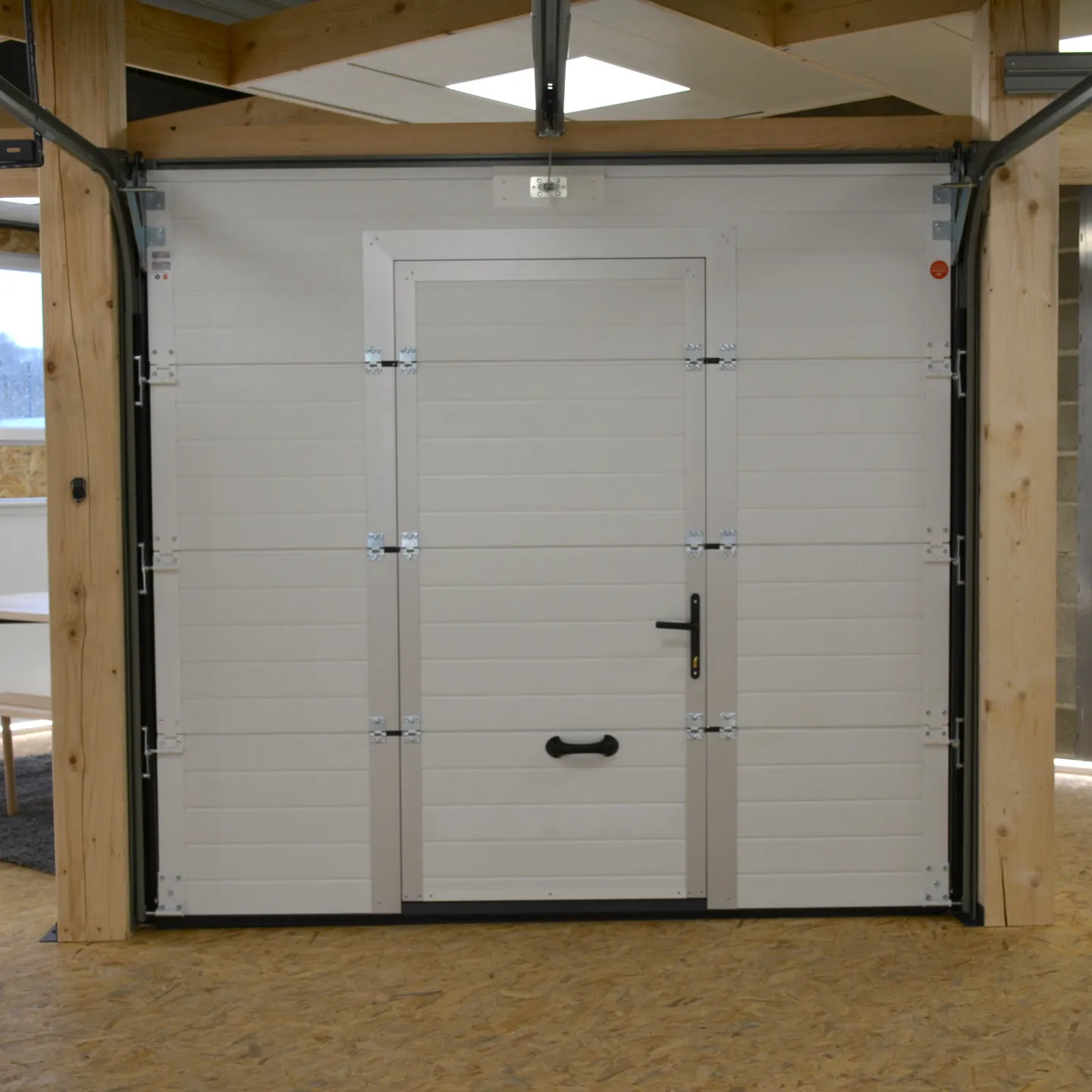

The wicket door is always positioned at the center of the door to maintain good balance during operation. It opens outwards by pulling straight (handle on the left and hinges on the right). The wicket door of this sectional door has a passage width of 830mm and a passage height of 1890mm. For doors less than 2000mm in height, the wicket door will be trimmed at the bottom and the passage height will be less.

The wicket door is equipped with an electrical safety system connected to the motor: if the wicket door is not completely closed, the motor is blocked to prevent damage to the door during operation.

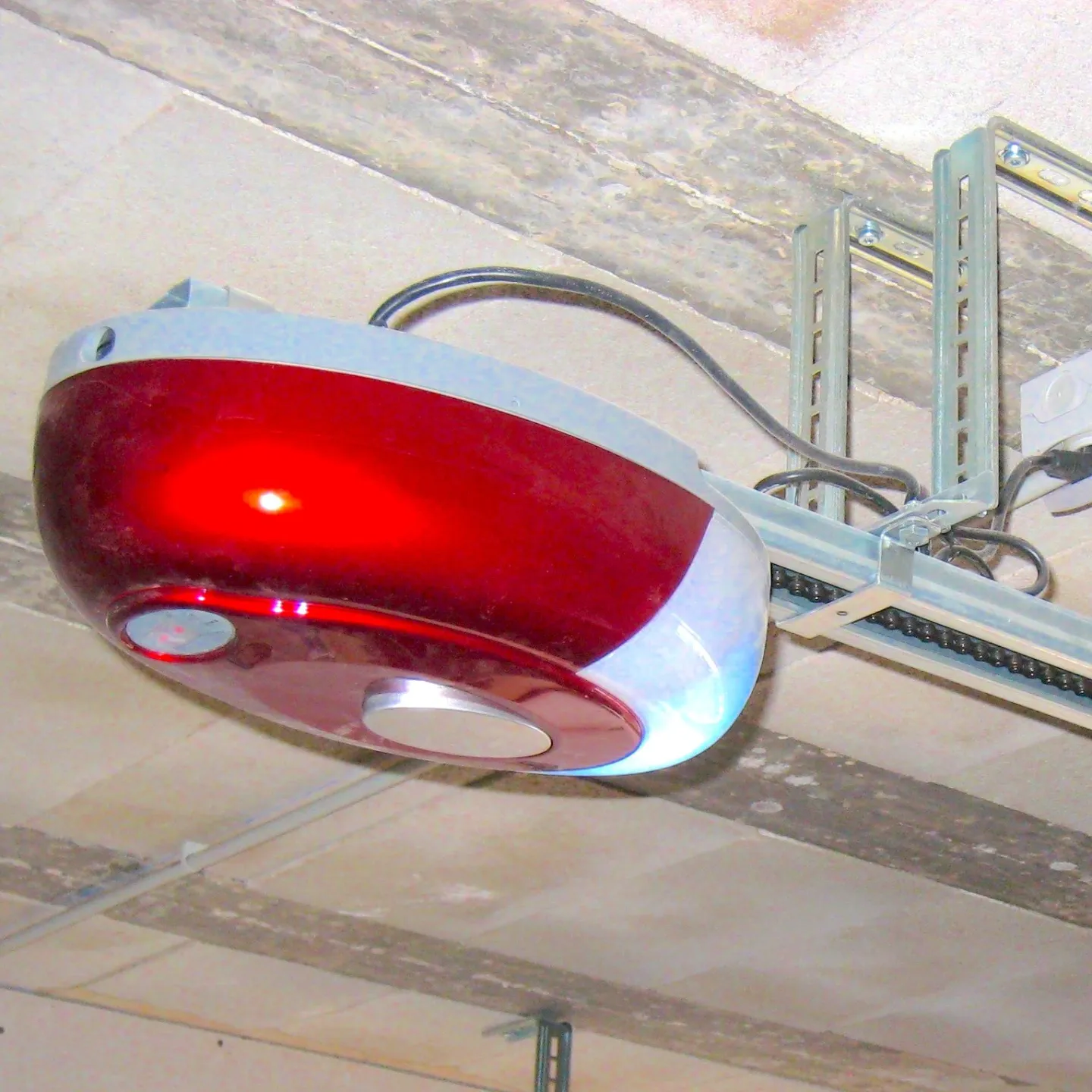

The Isola sectional door with wicket door is available only motorized. With a One operator or another motor of your choice. It is not available in a manual version, as the wicket door prevents the installation of a handle and a 2-point lock at the center of the door.

This garage door comes with an illustrated assembly manual in French, written by our design office (see Documentation tab).

Thermal resistance coefficients

Ud = 0.56 W/m²K for panel only

Ud = 0.95 W/m²K for the complete curtain (= assembled panels)

Ud = 1.48 W/m²K for an installed door, considering installation on a standard support

Presentation video

Measurement of sectional garage door
French-made garage door

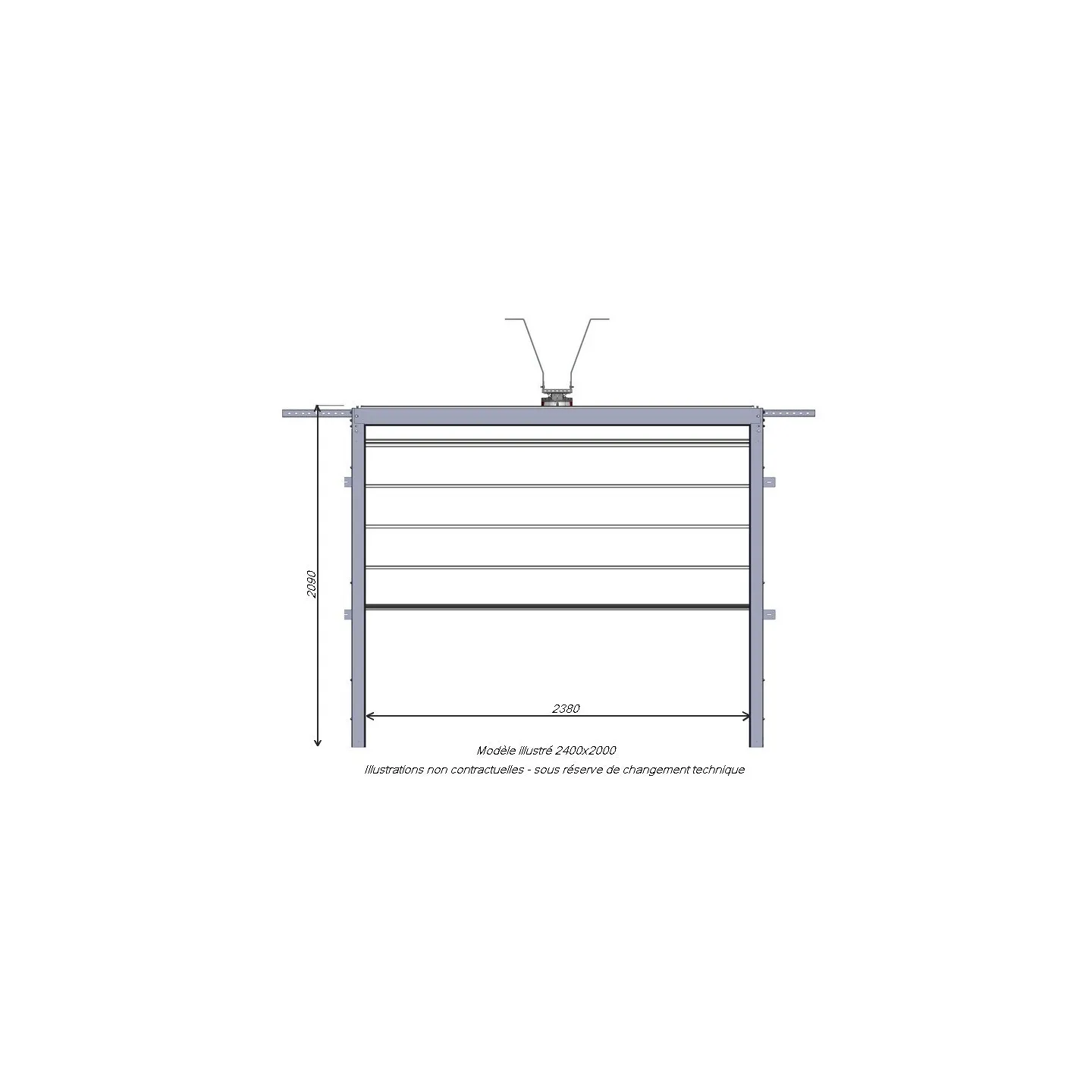

Dimensions

Available in 6 standard sizes:

  • L2400 / 2500 / 3000 mm and H2000 / 2125 mm

or custom-made:

  • Width from 2000mm to 4000mm
  • Height from 1700mm to 3000mm

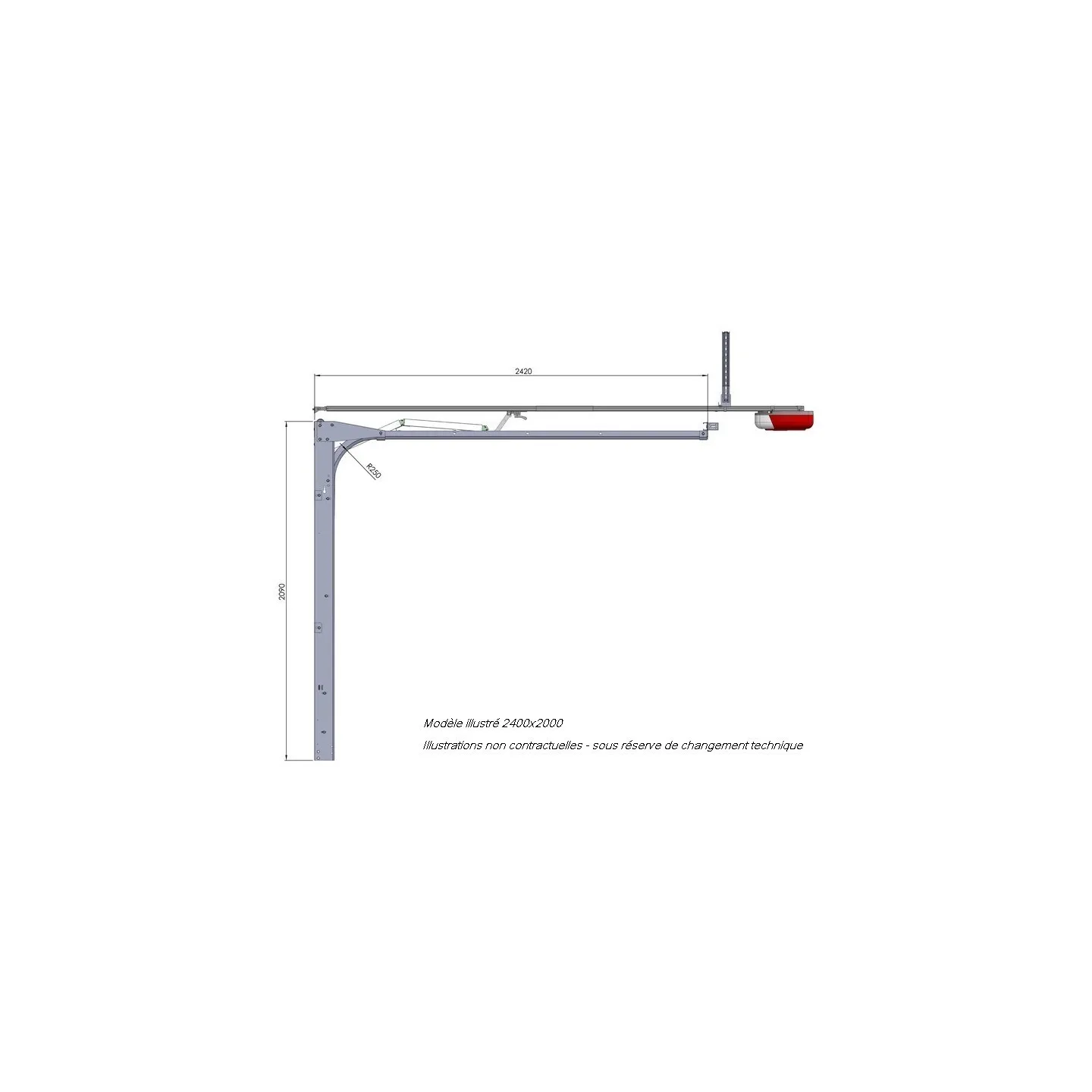

The spacing must be at least 75 mm to install this sectional door (see measurement 3 and 4 of the measurement diagram). The lintel drop must be at least 150 mm (measurement 5 on the diagram).

The + products

  • A gate with a 5-point lock
  • Excellent thermal and sound insulation
  • Fully mechanical anti-lift security on the motor
  • No exterior overflow
  • Robust steel mechanics
  • Motorized with 2 remote controls & very simple settings
