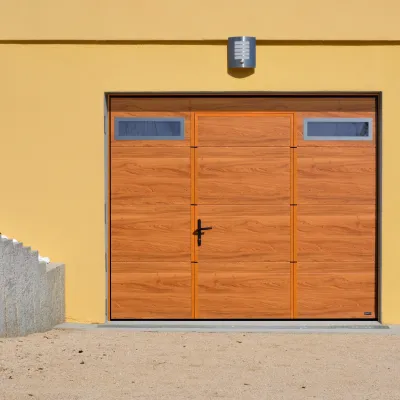

Presentation video (Version with wicket door) |

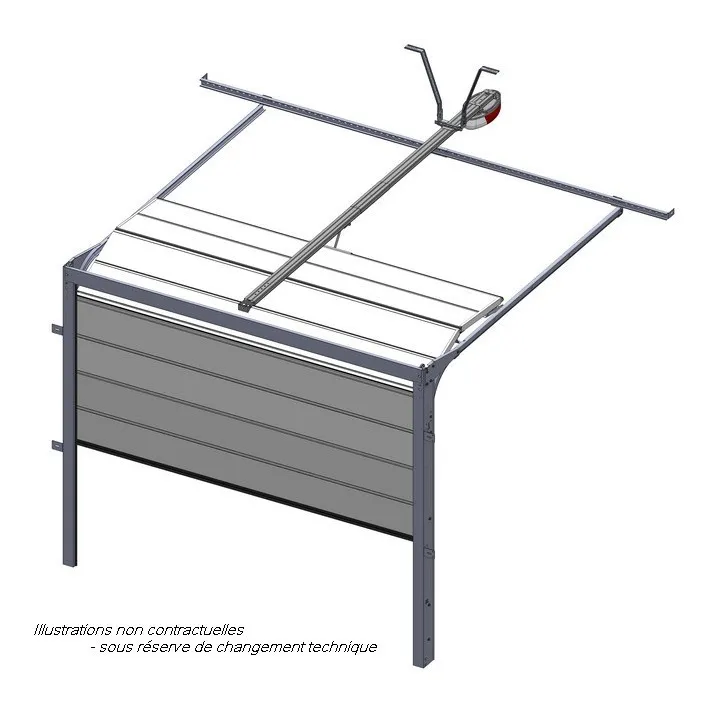

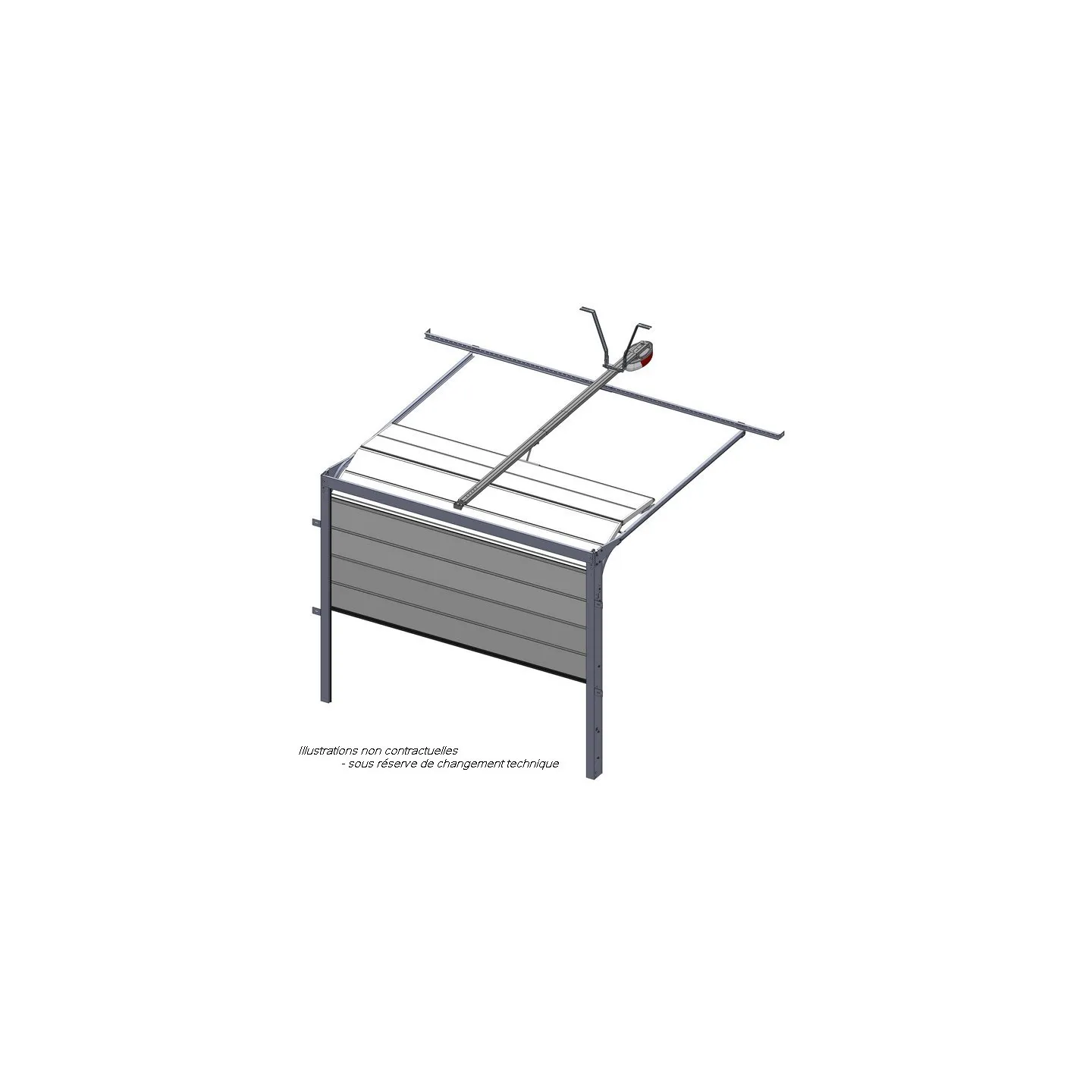

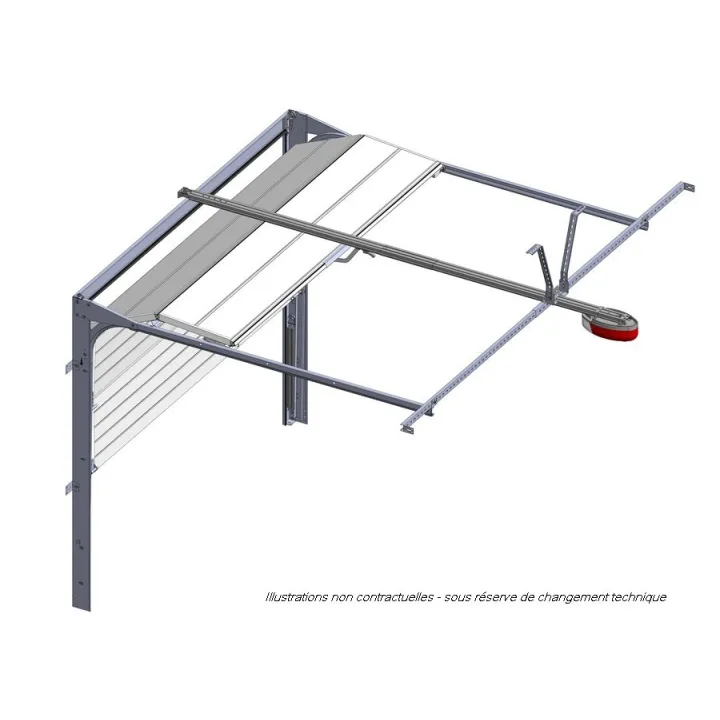

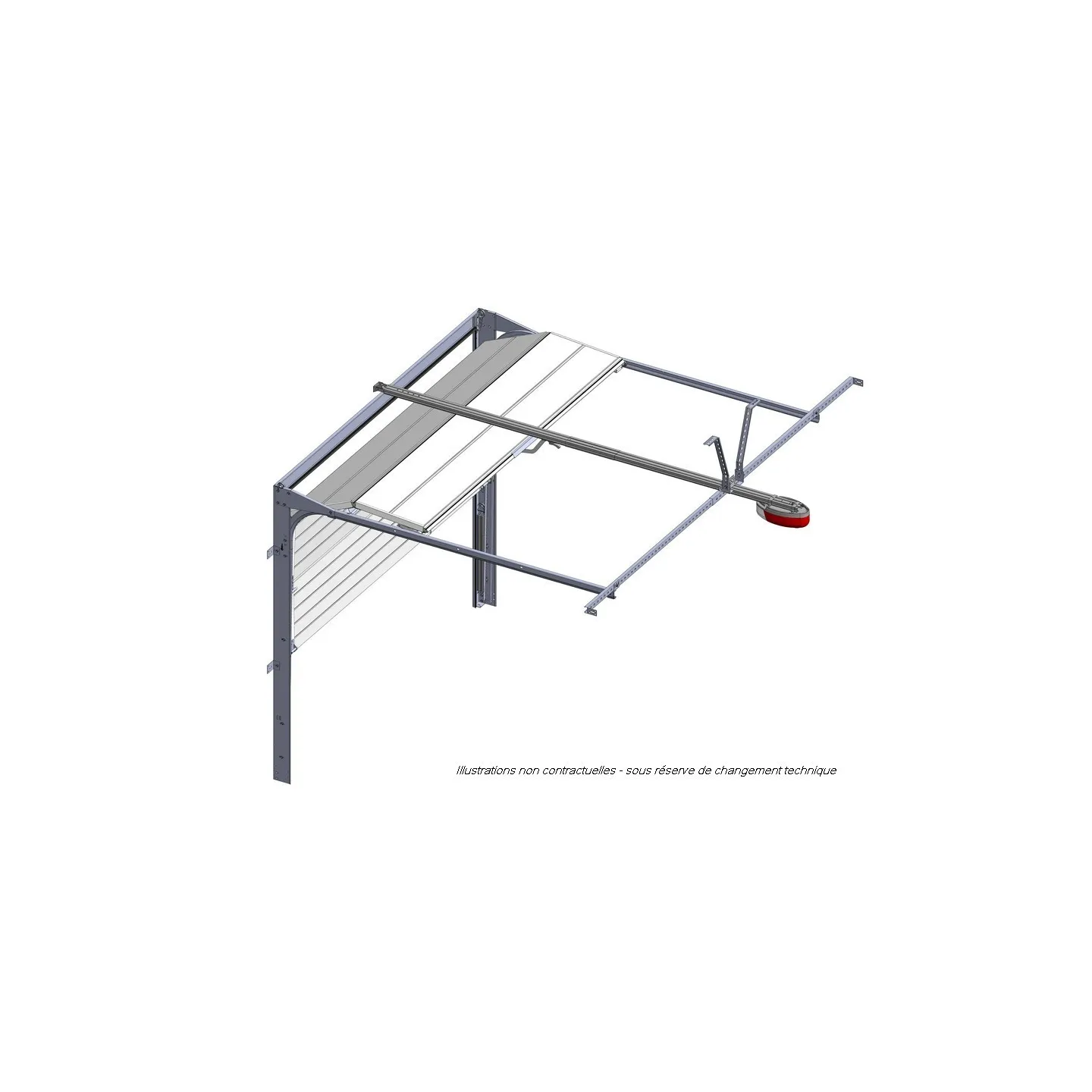

Insulating and motorised sectional garage door, 2 sides steel 0.35mm polyurethane foam 40 mm.

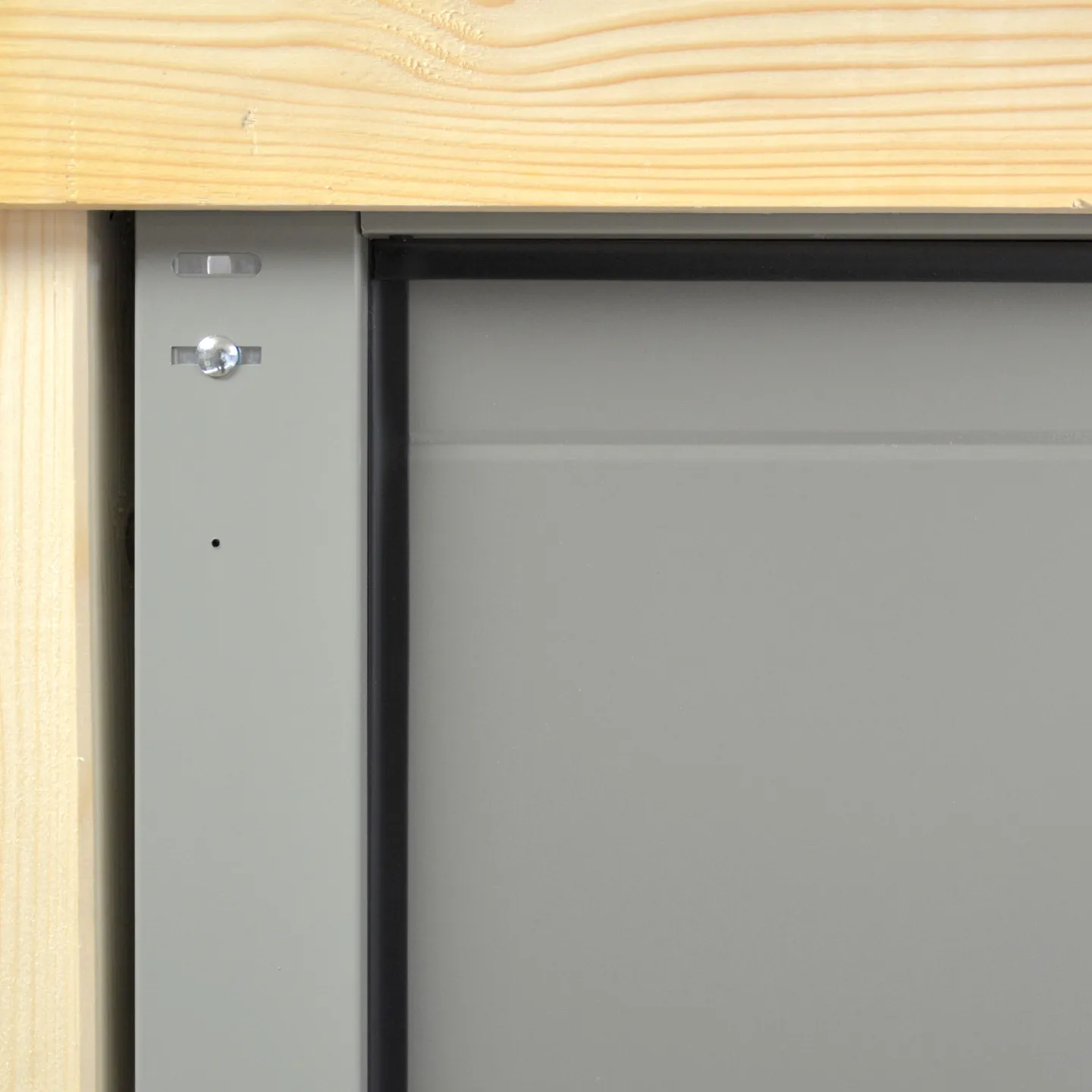

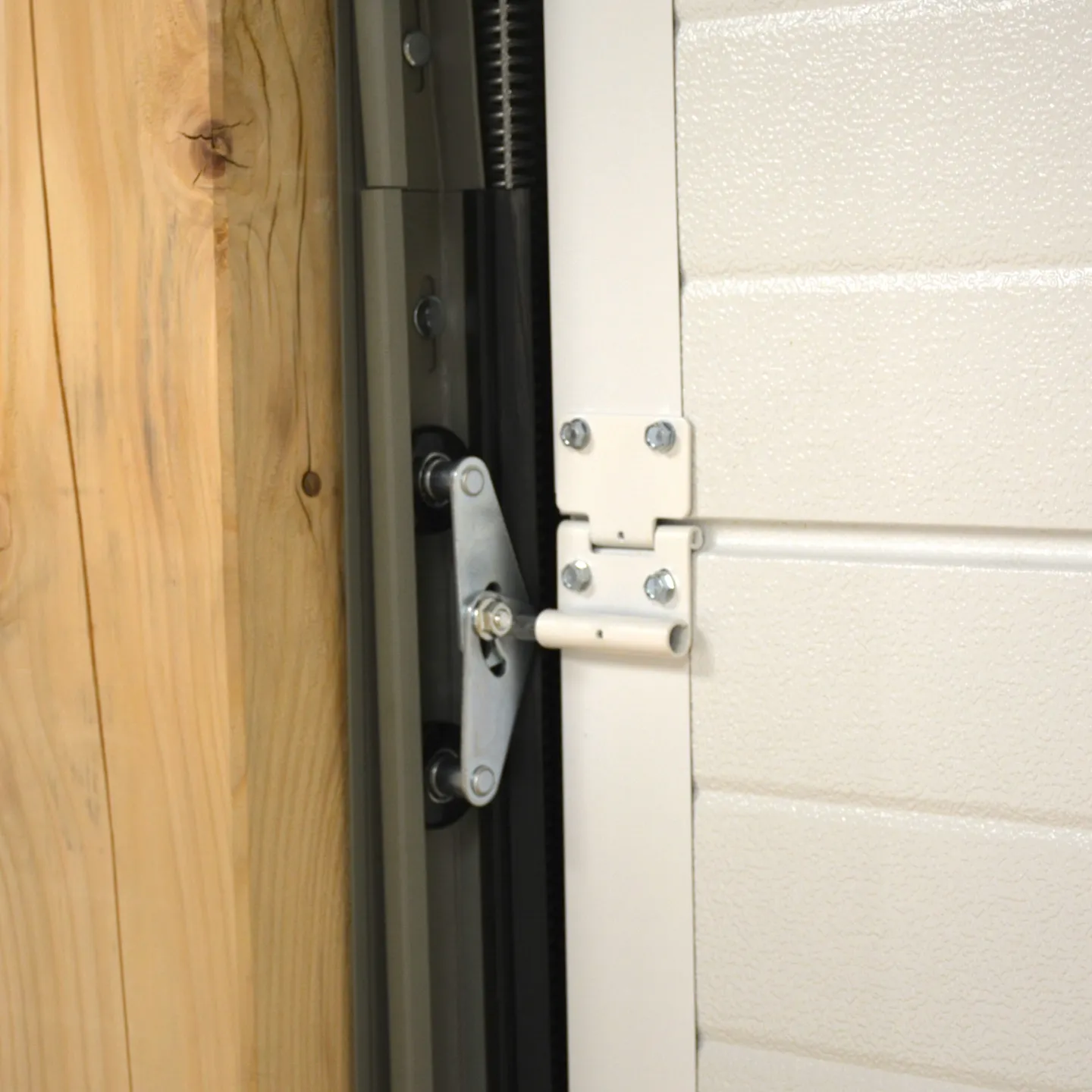

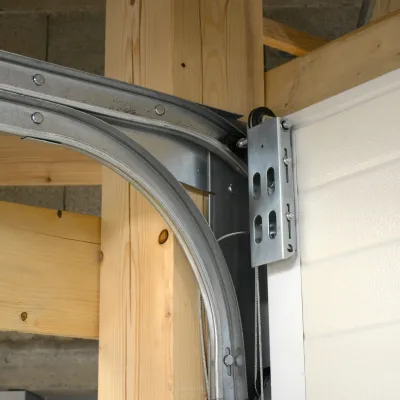

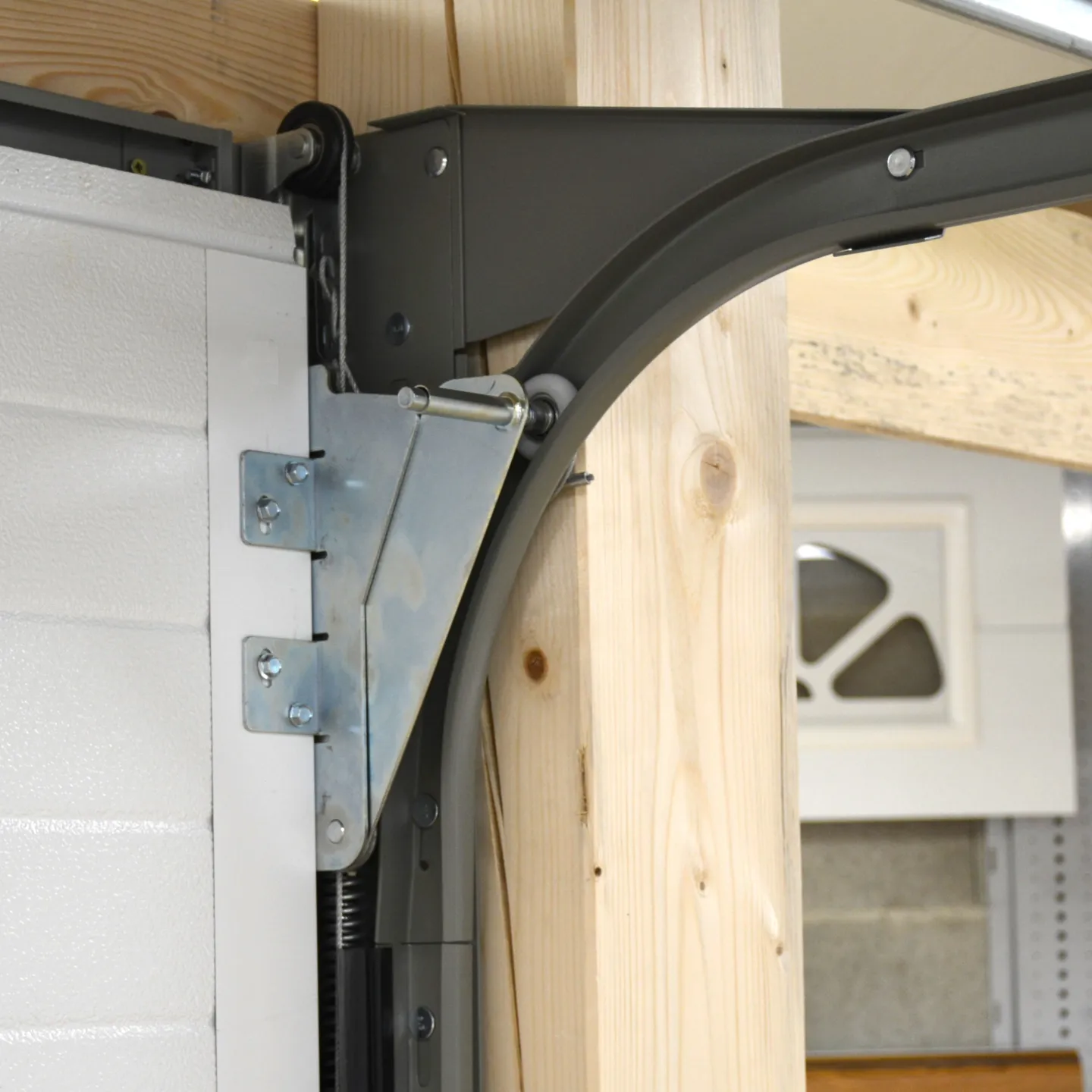

The Isola sectional door is supplied with tandem ball bearing rollers. The pulleys are made of nylon-moulded steel for longer life and quiet operation. The epdm bead seal on the bottom of the door follows the shape of your threshold to provide maximum insulation, complementing the insulation of the 40mm panels. The door frame is powder coated in the colour of the door or in another colour of your choice. Finally, the uprights integrate inside the foam in order to eliminate the noise of the springs in operation.
This garage door is delivered pre-assembled with illustrated assembly instructions in French, written by our design office (see Documentation tab).
Coefficients of thermal resistance
Ud = 0.56 W/m²K for single panel
Ud = 0.95 W/m²K for the complete deck (= assembled panels)
Ud = 1.48 W/m²K for an installed door, taking into account the installation on a standard support.
Dimensions
Available in 6 standard sizes:
W2400 / 2500 / 3000 mm and H2000 / 2125 mm
or custom-made:
Width from 2000mm to 4000mm
Height from 1850mm to 3000mm

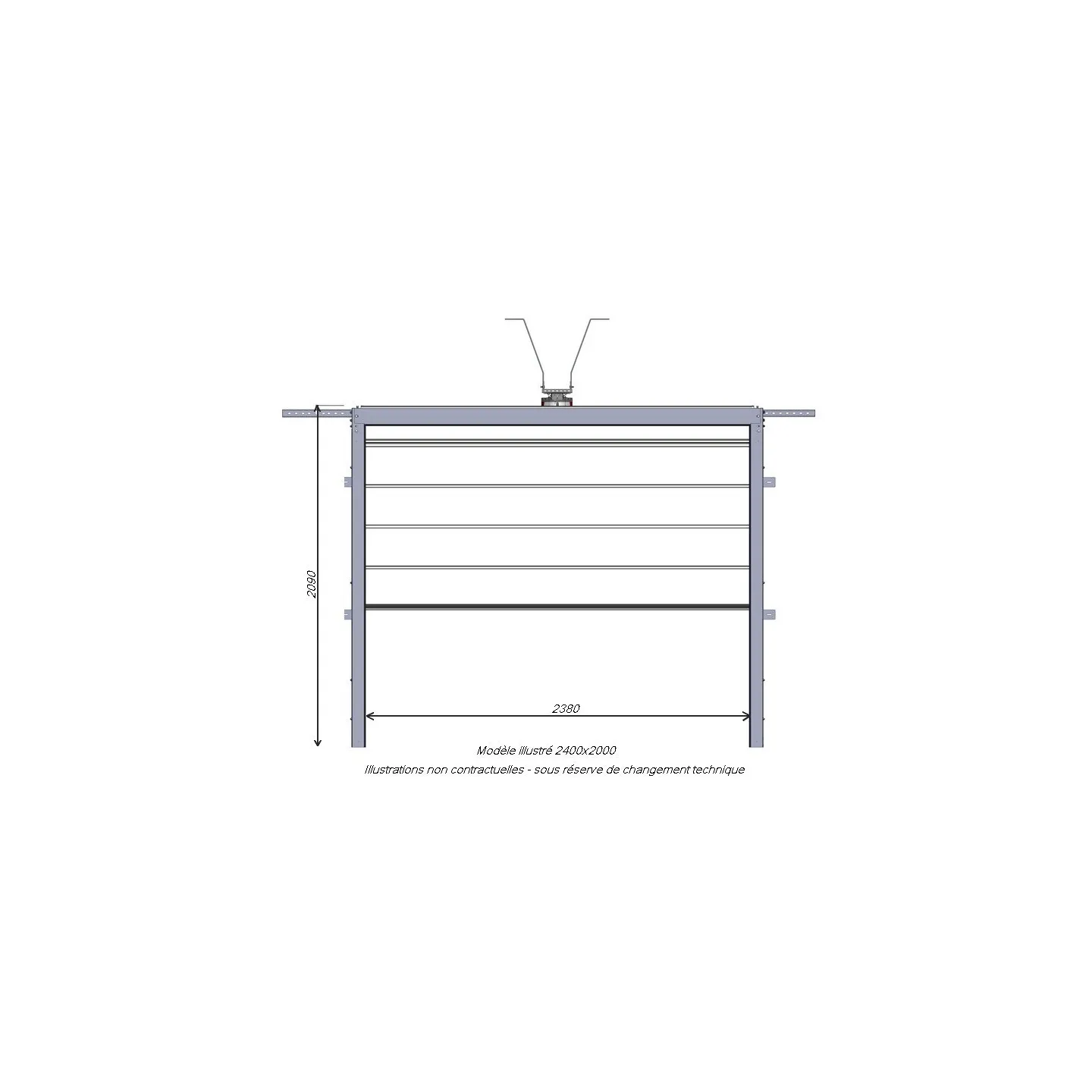

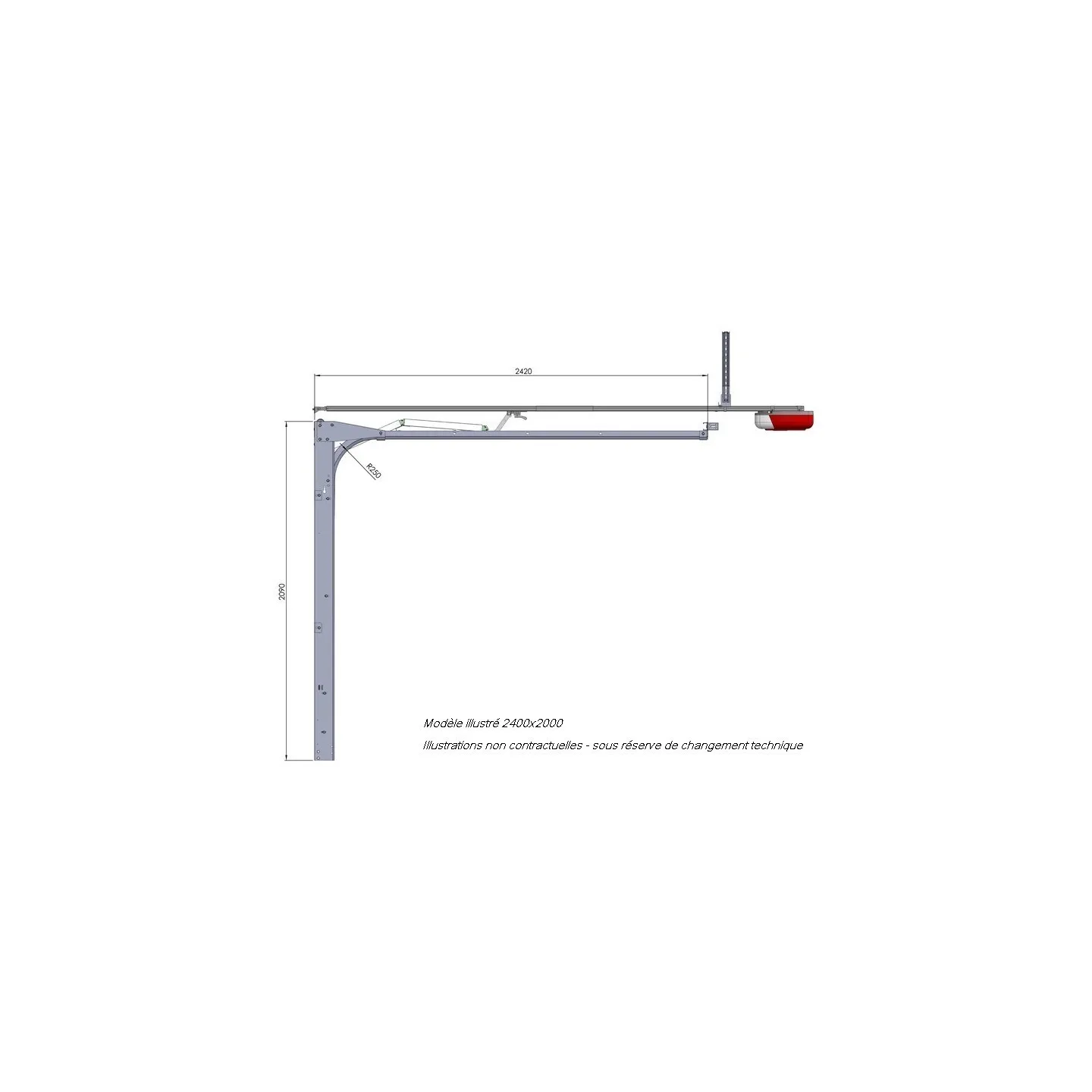

The minimum distance between the mounting brackets for this sectional door is 75 mm (see measurements 3 and 4 in the dimensional drawing). The lintel drop must be at least 150 mm (measure 5 on the diagram).
The + products
Excellent thermal and sound insulation
A perfect finish
Fully mechanical anti-lift safety device on the engine
No external overflow
Robust steel mechanics

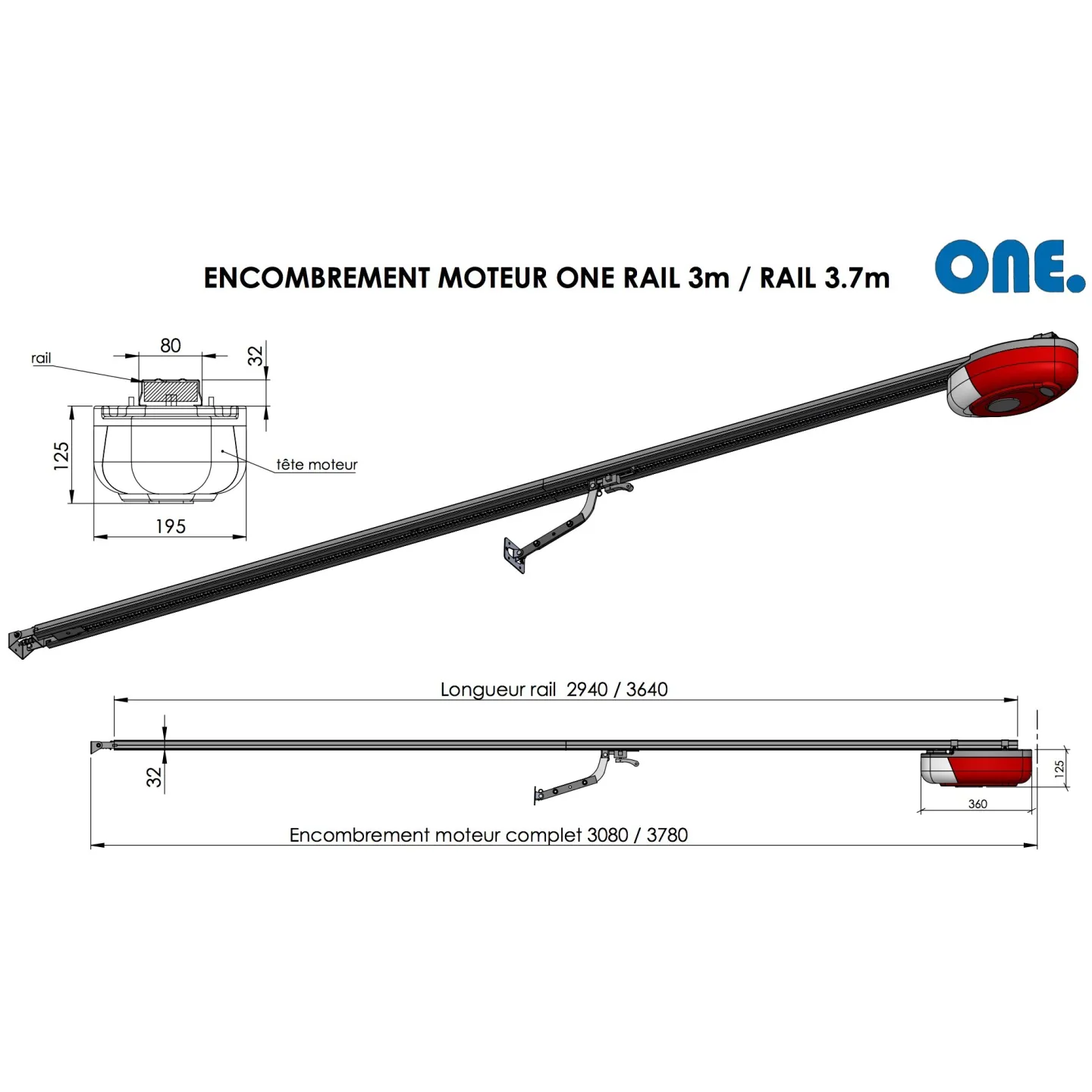

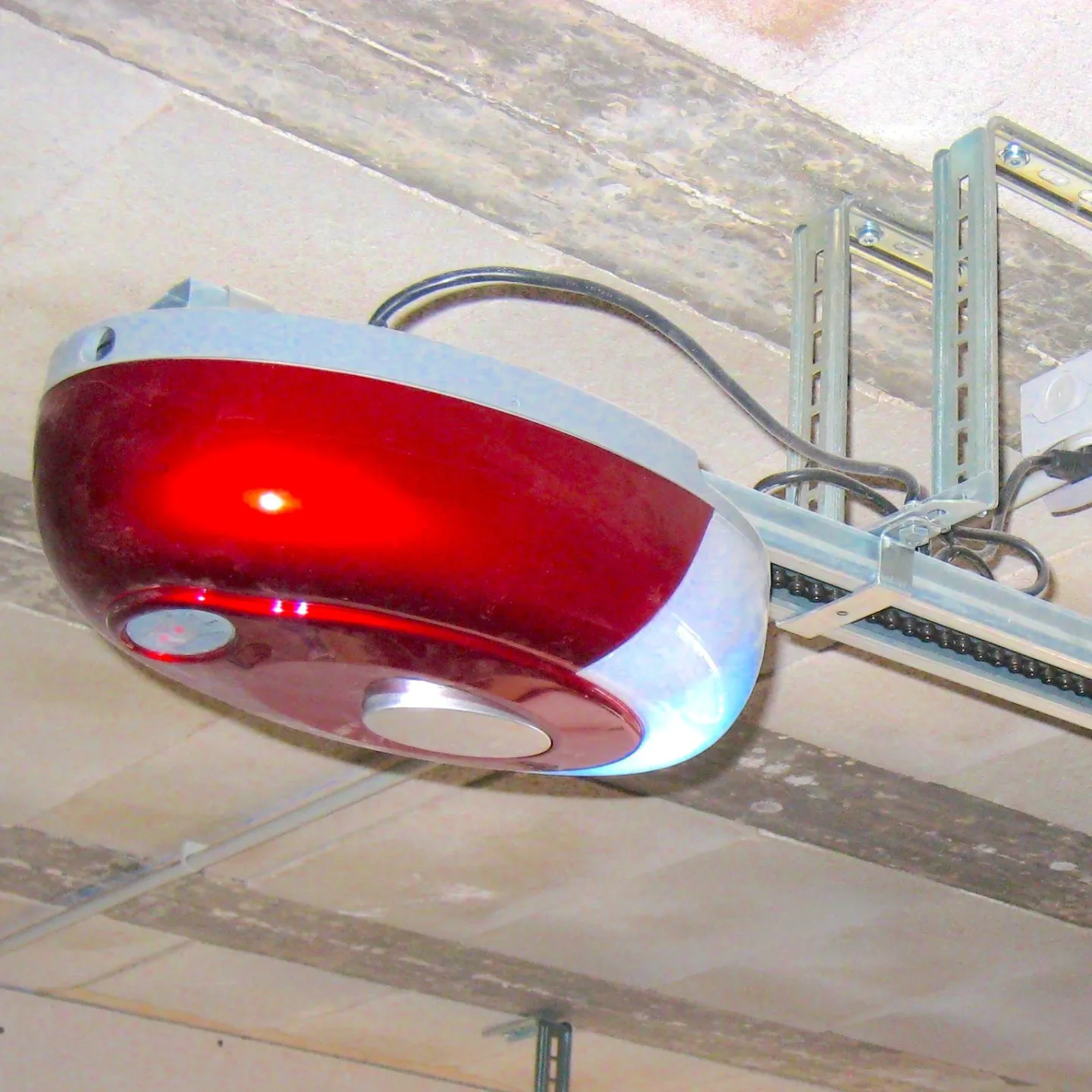

Motorized with 2 remote controls & very simple settings
