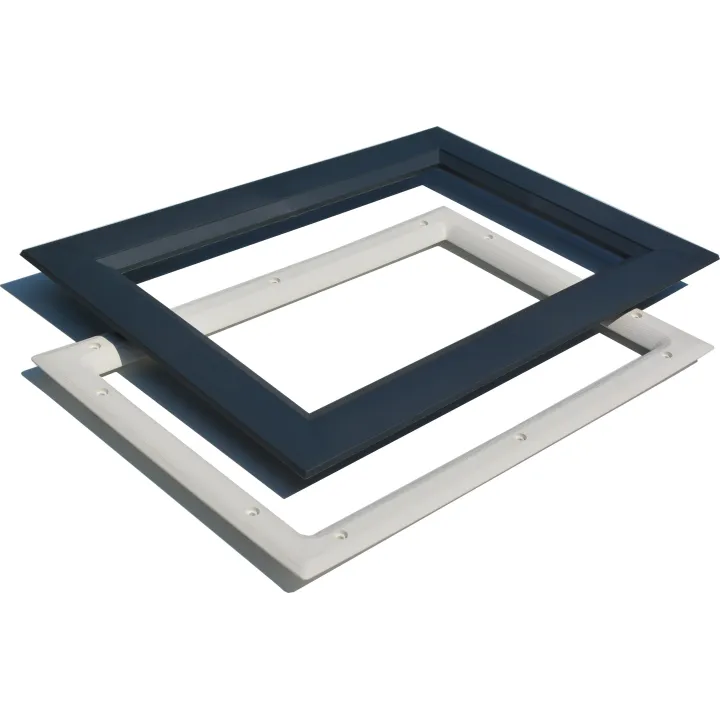

Rectangular Window MPM NEW GARONA (Frames only)

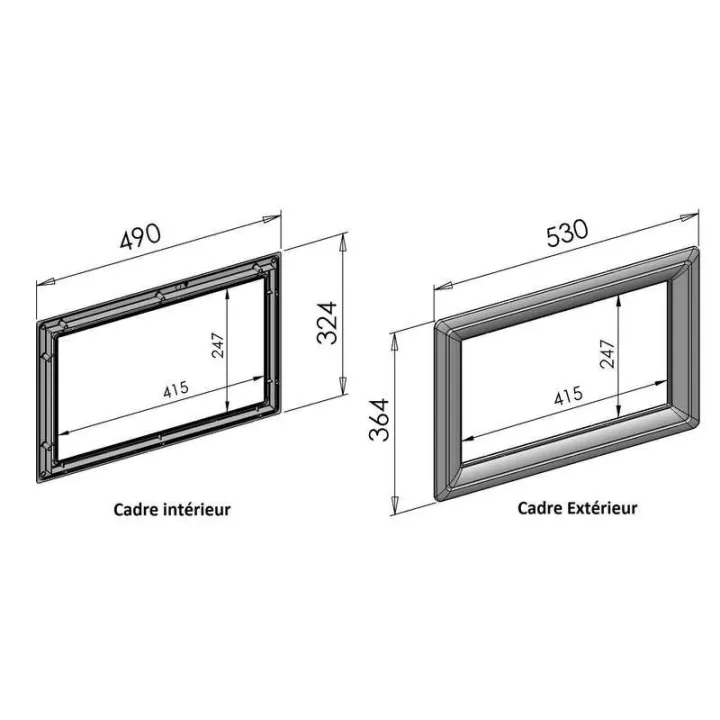

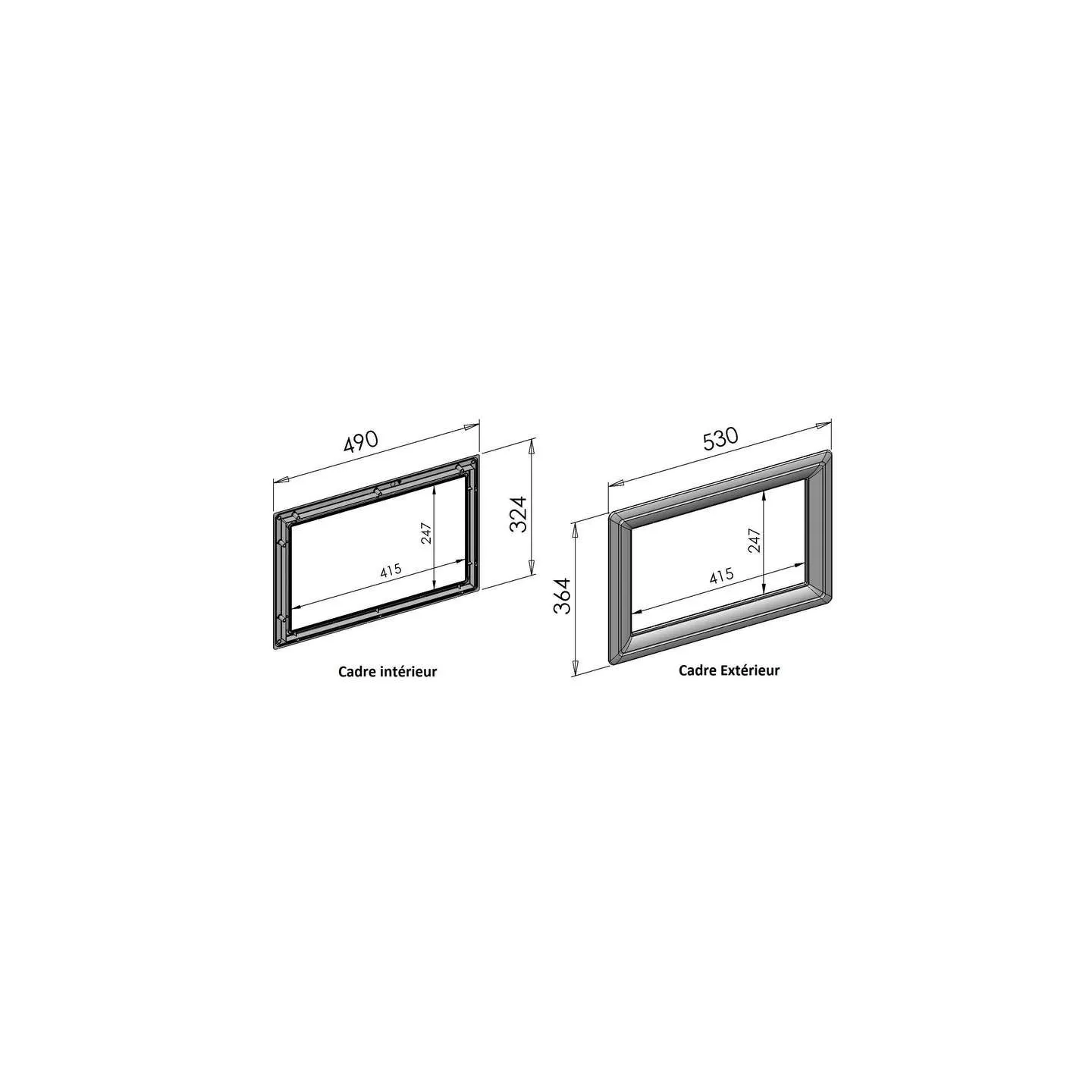

Dimensions Rectangular Porthole New Garona

Rectangular Porthole New Garona (Complete Kit)

Rectangular Porthole New Garona (Complete Kit)

4.8 / 5 (66 reviews)

New Garona rectangular porthole for garage door.

Inner frame PVC white 490x325 + 10 screws 5x40

Outer frame colour PVC 530x365

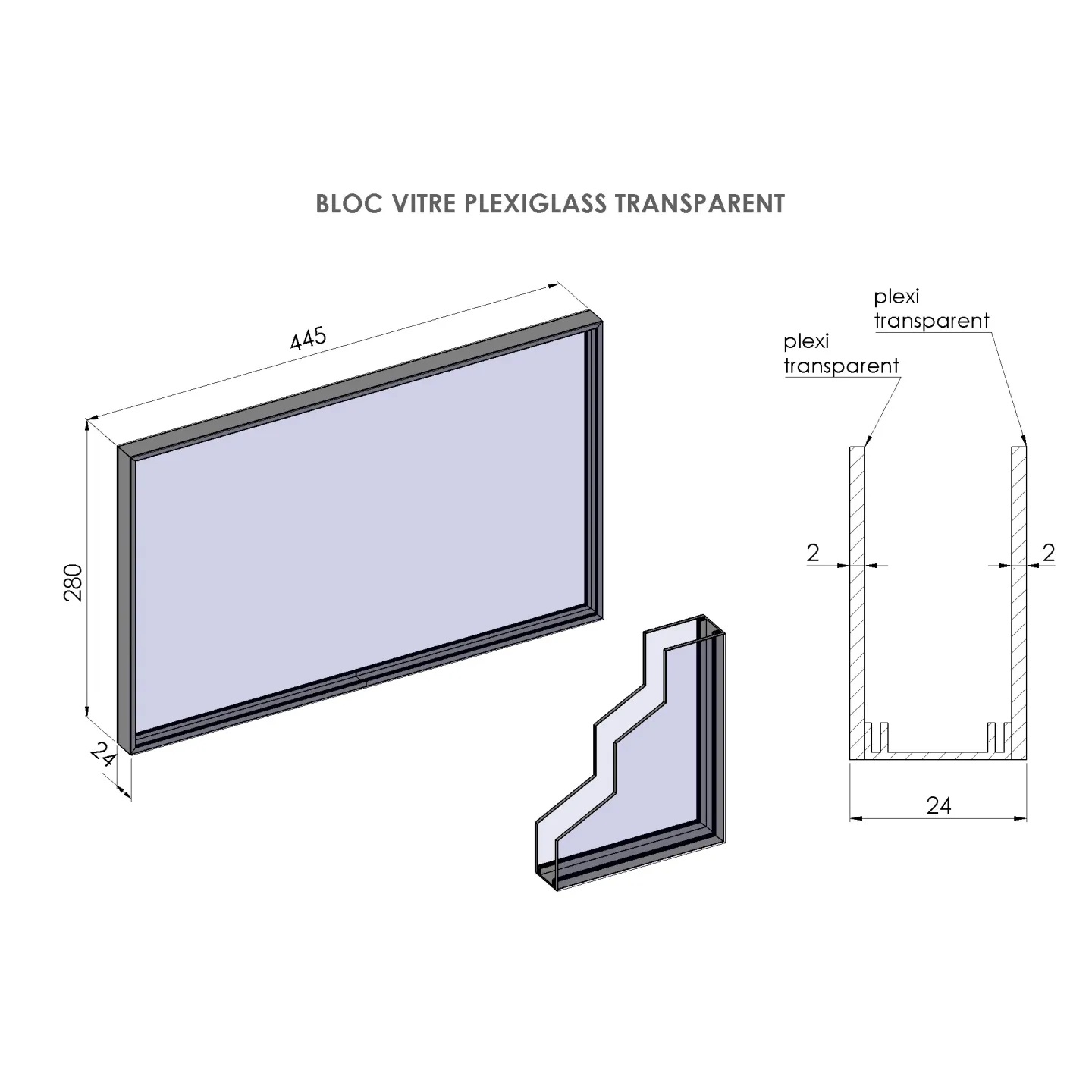

4 types of glazing: clear plexi, granite or safety clear glazing or granite

Installation template included : Easy to install, one jigsaw cut and screwed together from the inside

Available in 3 colours:

- White RAL 9016
- Anthracite Grey RAL 7016
- Golden Oak RAL 8003

Glazing type Plexi transparent

Plexi transparent Plexi granite Transparent secure GRANITY SECURITY

Color RAL 7016 anthracite gray

In stock, delivery within 48 hours

€59.90

Tax included

€49.92 HT

Fast delivery by Colissimo International

Satisfied or refunded

during 30 days

Need help ?

Chat with us !

Secure payement

Credit card - PayPal - Bank transfer

Pay in 3 times for free

from 150€ of purchase, by paying by credit card

Delivery En savoir plus

Order today before 1pm and receive your order on Wednesday 18 November 2026 (Delivery time to France)

Configure your garage door and get a free quote

Create a garage door to your liking with our interactive configurator.

You can choose from all our ranges of up-and-over and sectional doors.

In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.

Our guarantees

The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.

Learn more

This porthole is designed for assembly on panels with a thickness of 40-42 mm.

However, it is possible to mount it on panels of different thicknesses.

Thickness less than 40 mm

You will need to create small strips to compensate for the difference, to be placed on the interior frame side of the porthole.

Example: if your panel is 30mm thick, you will need to make 4 strips of 10mm.

Thickness greater than 40 mm

You will need to increase the size of the screws and make strips to stabilize the glazing.

Example: if your panel is 50mm, you will need to find 5x50 screws and make 4 strips of 5mm to wedge behind the glazing and the interior frame.

These portholes are customizable by adding "decorations" (not provided) to be inserted inside the glass block.

CAUTION WHEN SCREWING, TIGHTEN MODERATELY

Installation tips:

If possible, place the panel on trestles to trace and cut flat and to assemble. (Make sure to check the tracings before cutting!). Cut size of 470x300mm
Use masking tape to avoid scratching the panel with the jigsaw.
