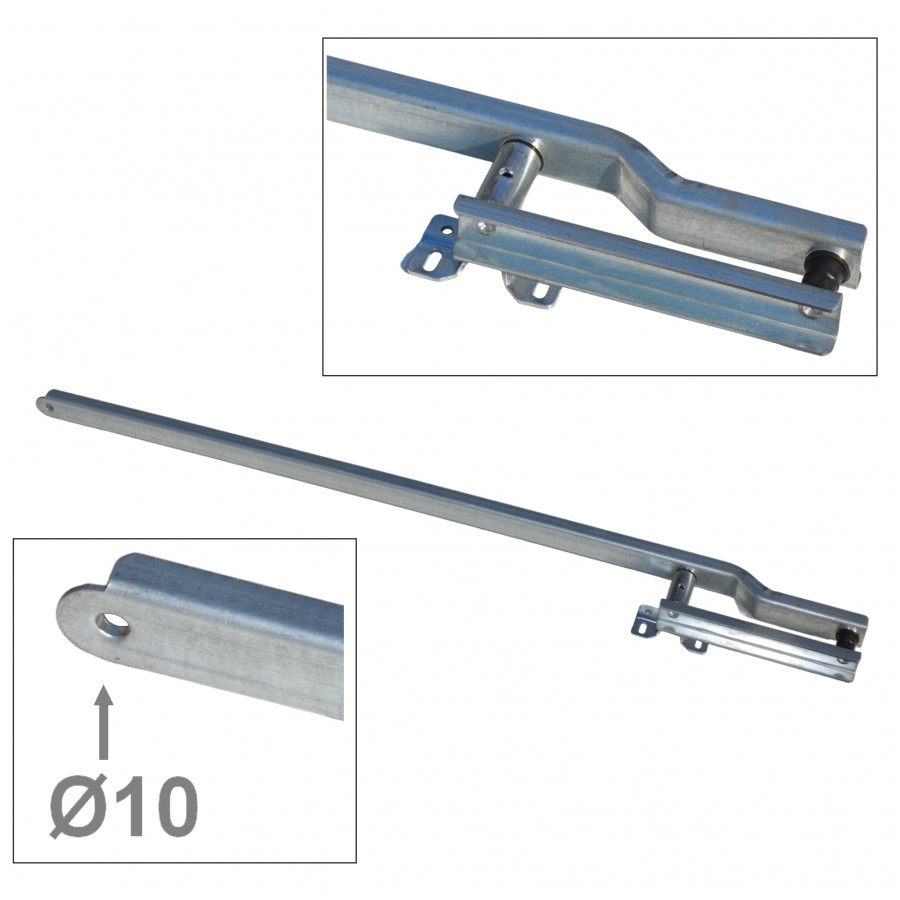

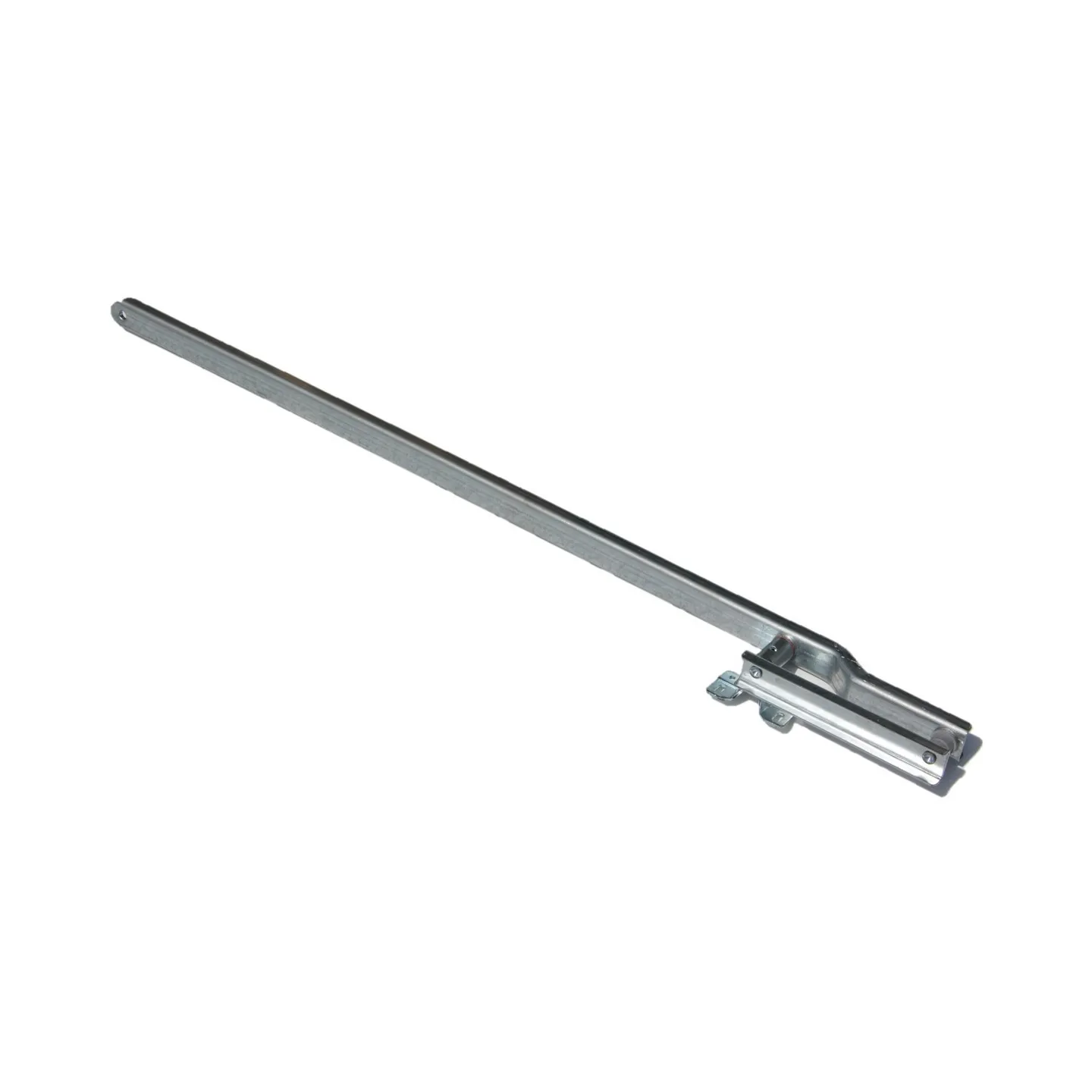

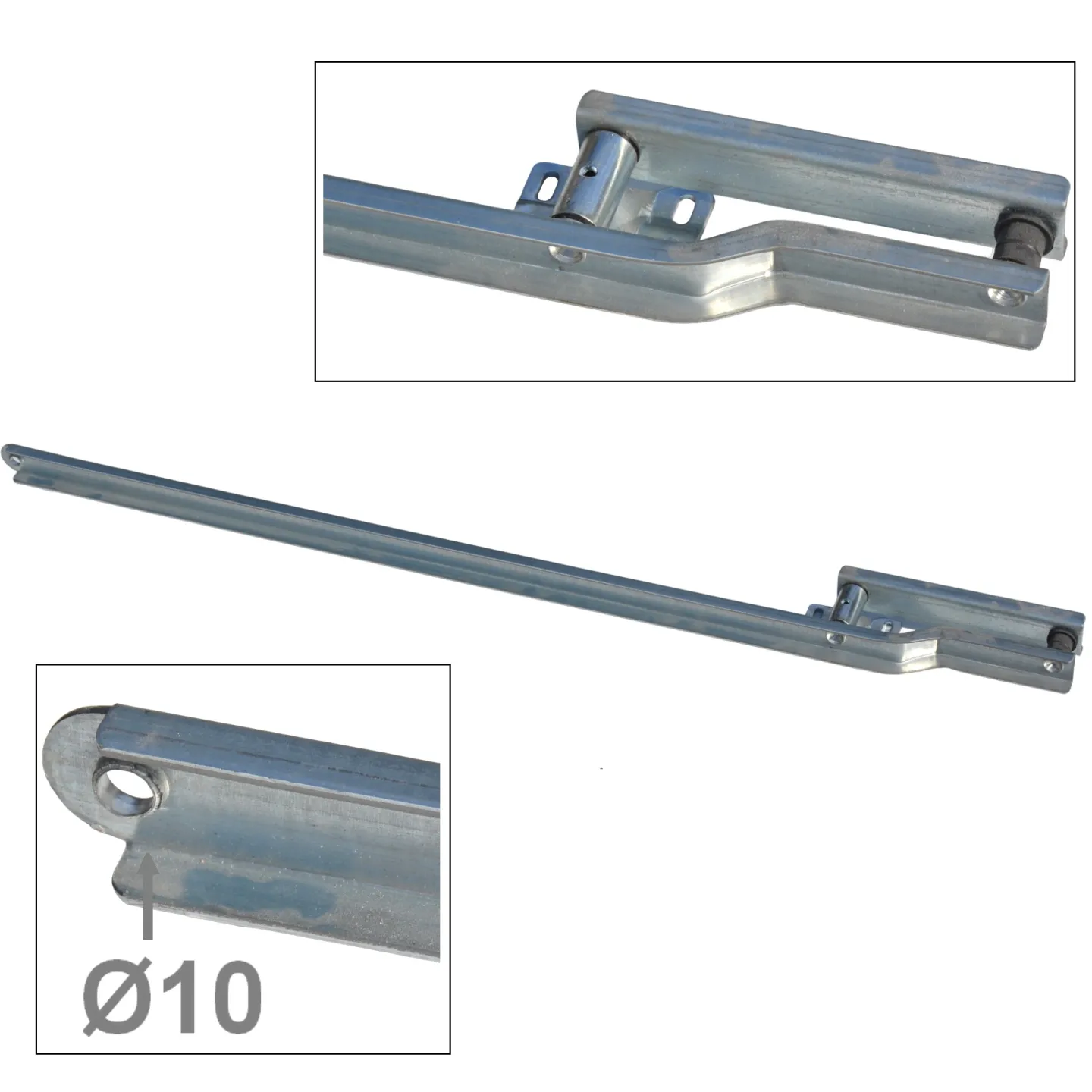

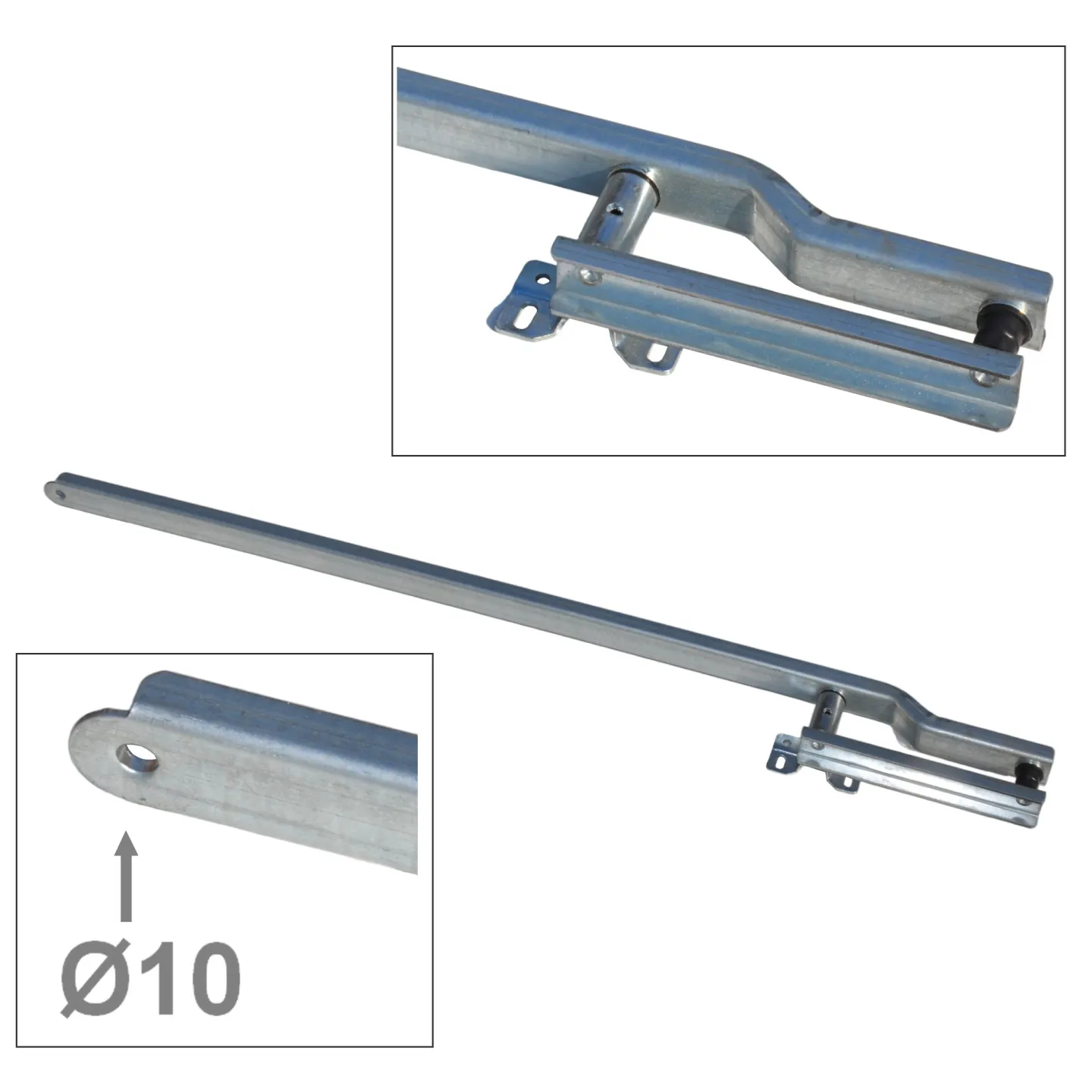

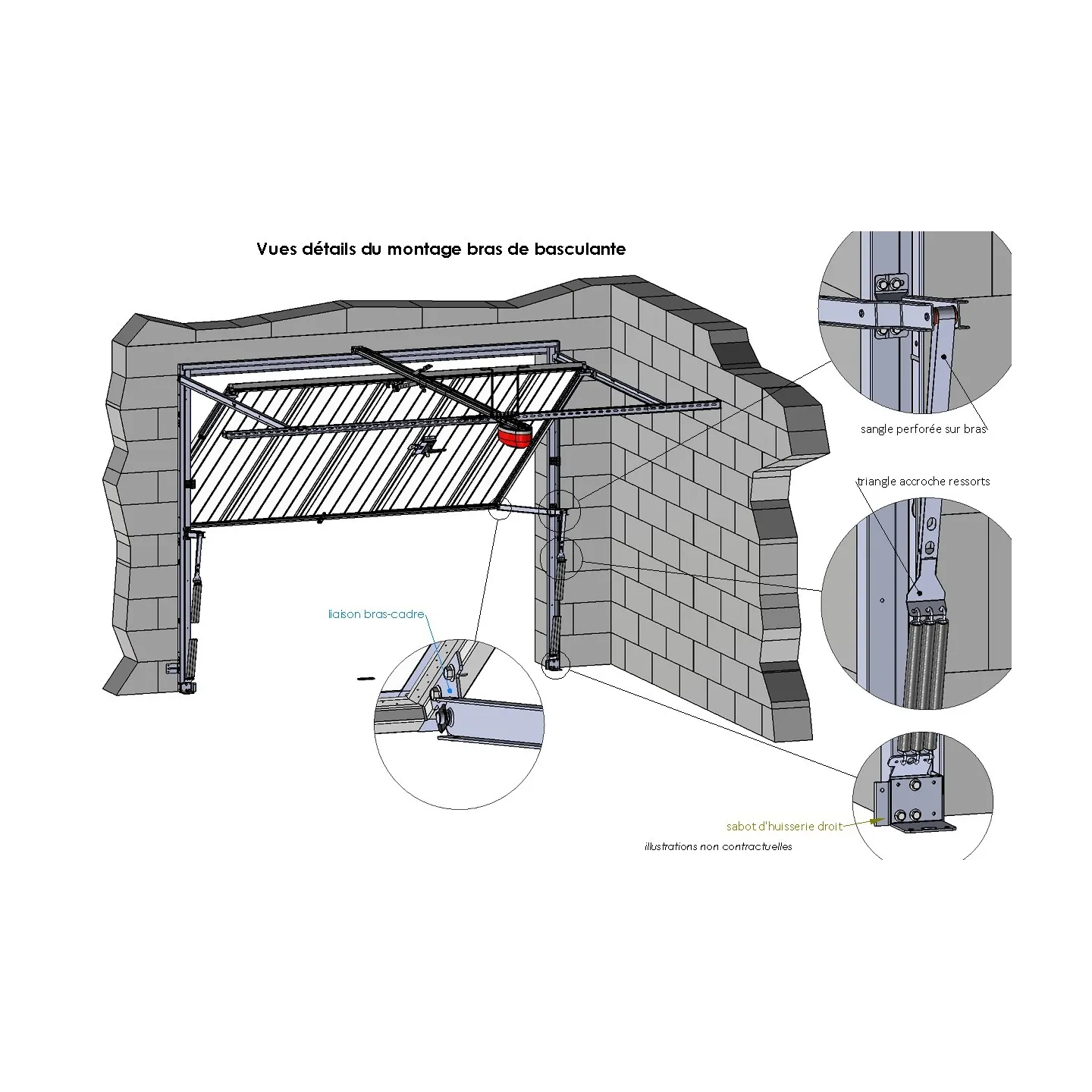

Swing arm for an overhead garage door.

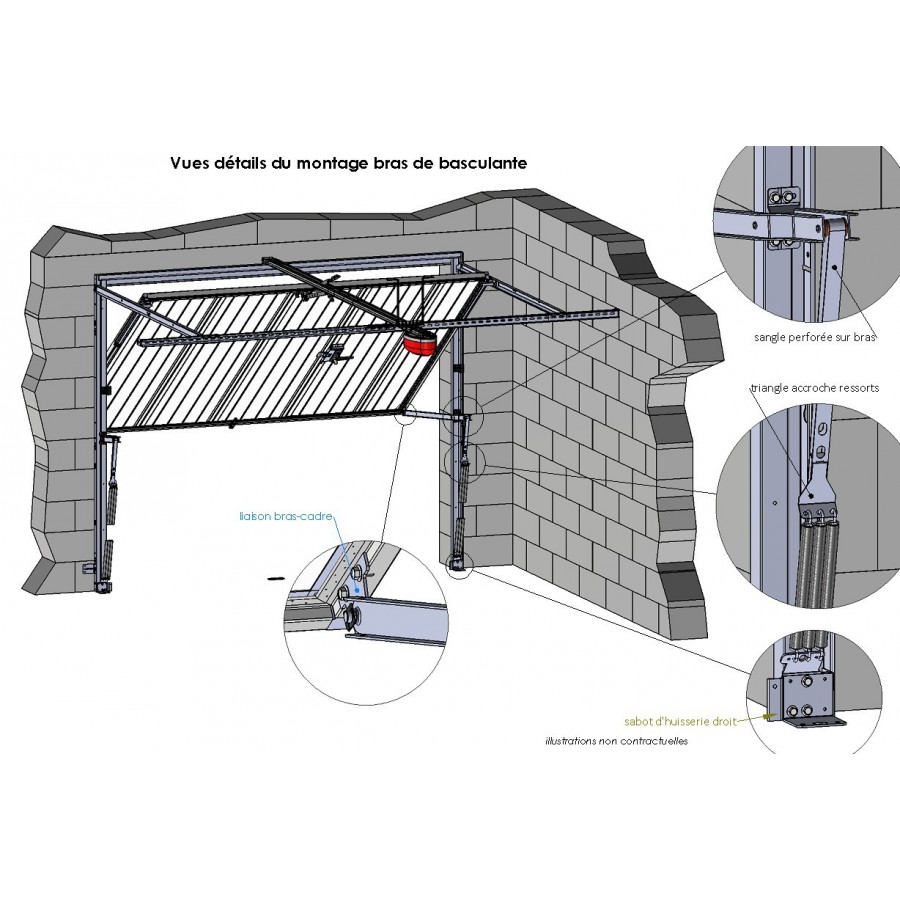

This kit includes 1 arm + 1 spring hanger strap + 1 frame/arm connection.

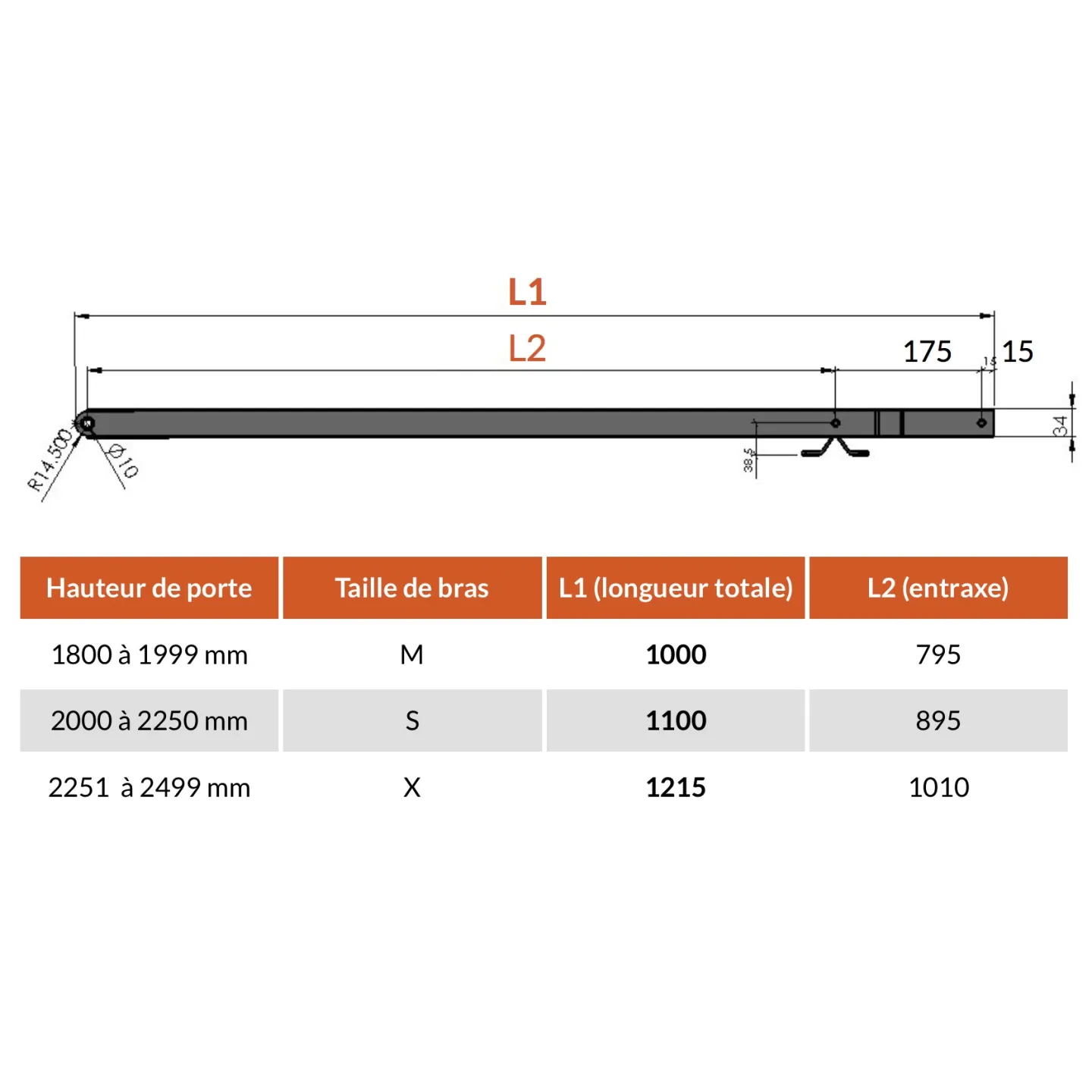

3 arm lengths available :
Door height 1800-1999 Ref. M
Door height 2000-2249 Ref. S
Door height 2250-2499 Ref. X
If the length of your installed arms differs from the indicated length, change both sides to keep your door balanced.
This kit includes:
- 1 swingarm (size M, S or X)
- 1 strap
- 1 frame/arm linkage.
This arm is reversible and is suitable for the left or right side of a door.

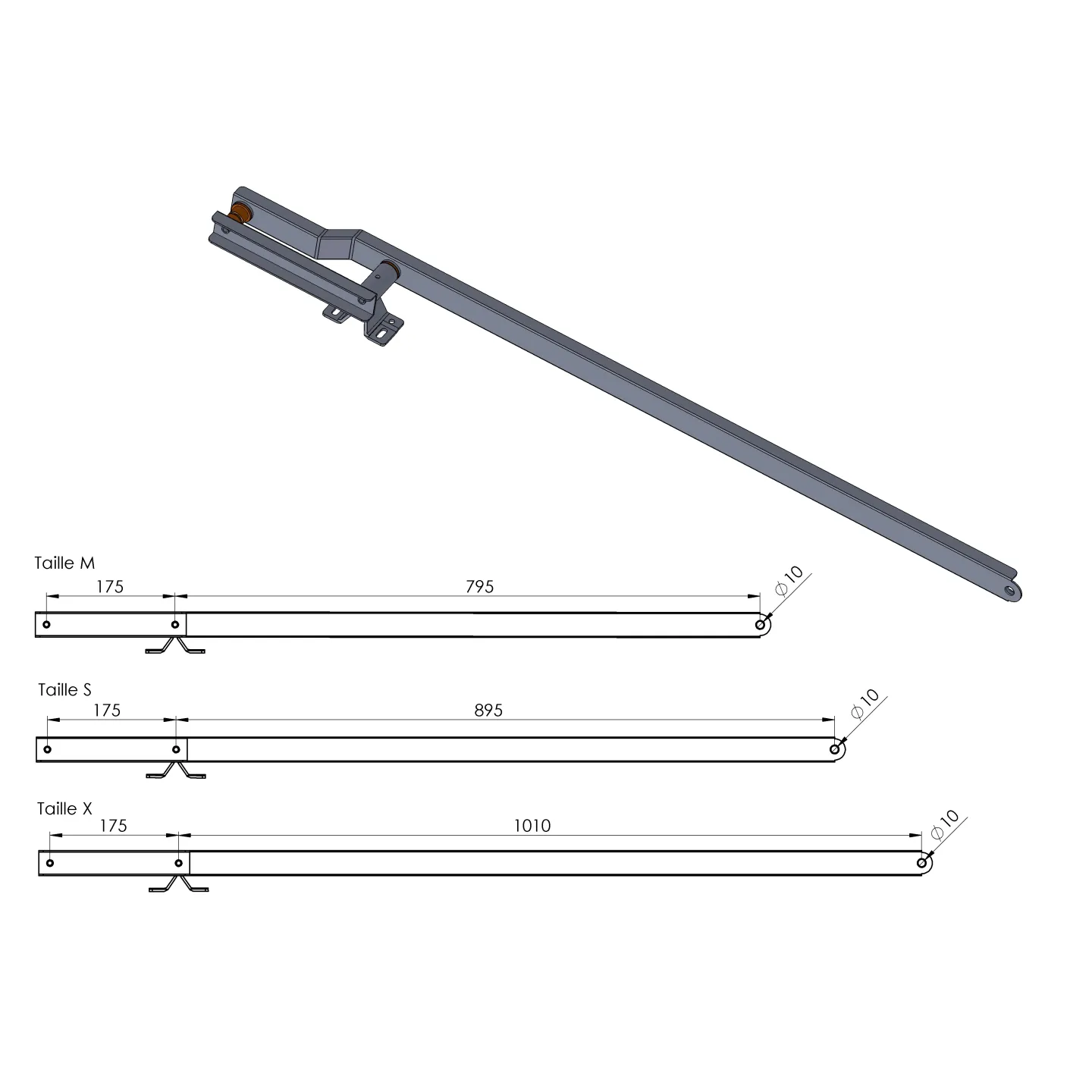

The M-arm measures 1000 mm in total.
The S-arm measures 1100 mm in total.
Arm X measures 1215 mm in total.
To know the version of your arm measure it.
If the length of your installed arms differs from the indicated length, change both sides to keep your door balanced.
By keeping both sides of your door symmetrical, you ensure smooth operation. It is therefore entirely possible to change your door arms if the dimensions are not identical. Our technicians are at your disposal to guide you through this operation by e-mail, chat or call and advise you on the feasibility of the operation.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order before 1:00 p.m. tomorrow and receive your package on Monday 29 April (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 | 28 | |
|---|---|---|
| 4 | 3 | |
| 3 | 0 | |
| 2 | 0 | |
| 1 | 1 |
Bras de porte de garage basculante
Livraison très rapide. Produit conforme à mes attentes Montage super rapide car la pièce est de qualité. J'ai enfin trouvé un professionnel ... professionnel ;) merci
porte de garage novoferm
pièce identique à celle d'origine. Montage facile. Fonctionnement impeccable. la livraison a été très rapide. Merci. Site à recommander
Porte garage spadone
Excellent team!
Porte de garage Vial
Que du positif: le meilleur prix, navigation intuitive et rapide sur site, livraison rapide , remboursement efficace pour une pièce qui n'a pas finalement été utilisé.
Bras porte garage basculante
J’ai reçu un bras m alors que j’ai commandé un s , j’ai donc été obligé de le rallonger, pas très cool …
Notre réponse : Navré pour cette erreur de préparation, nous pouvons bien procéder à un échange si vous n'avez pas encore installé le bras.
Cdlt, Joseph
Strap for tilting arm (pair) - 12,90 €
Steel tensioning strap for manual up-and-over garage door springs.
Allows you to connect the springs attached to the bottom of your door jamb to the door arm axle.
Sold in pairs
In galvanized steel
Width of the strap: 20mm
2 sizes: 6 or 13 holes
(Sold alone, without spring hook)Bridging strap for rocker arm (pair) - 24,96 €
Bridge strap for a motorized or manual up-and-over garage door arm. The pair For overhead door 4 screws M8x20 + nuts supplied Sold alone, without spring hooks (sold alone, without spring hook)Connection Frame / Tilt Arm (pair) - 9,90 €

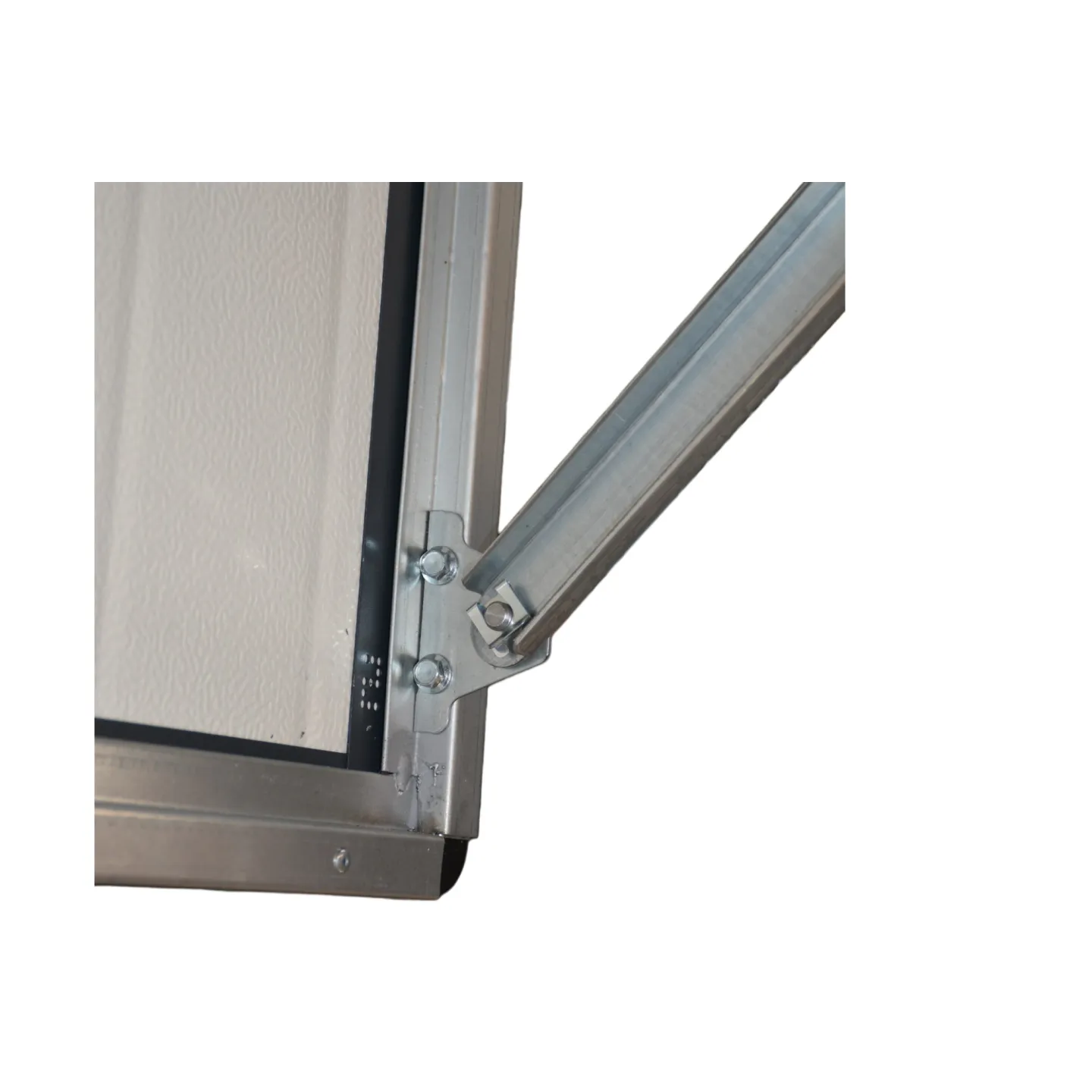

These parts are attached to the bottom left and right corners of your overhead door frame and allow connection to the end of the swing arm.
Made of steel
+ 4 sewing screws
+ 2 clips
The pair
