The Cadrea overhanging overhead garage door is our most customizable model; it is a bare frame, therefore supplied without cladding, to adapt to the most demanding projects with a coordinated covering, most often in wood.
It incorporates the proven design of the Aura overhead door, to support a panel to be added on site, with a maximum weight of 90 kg.

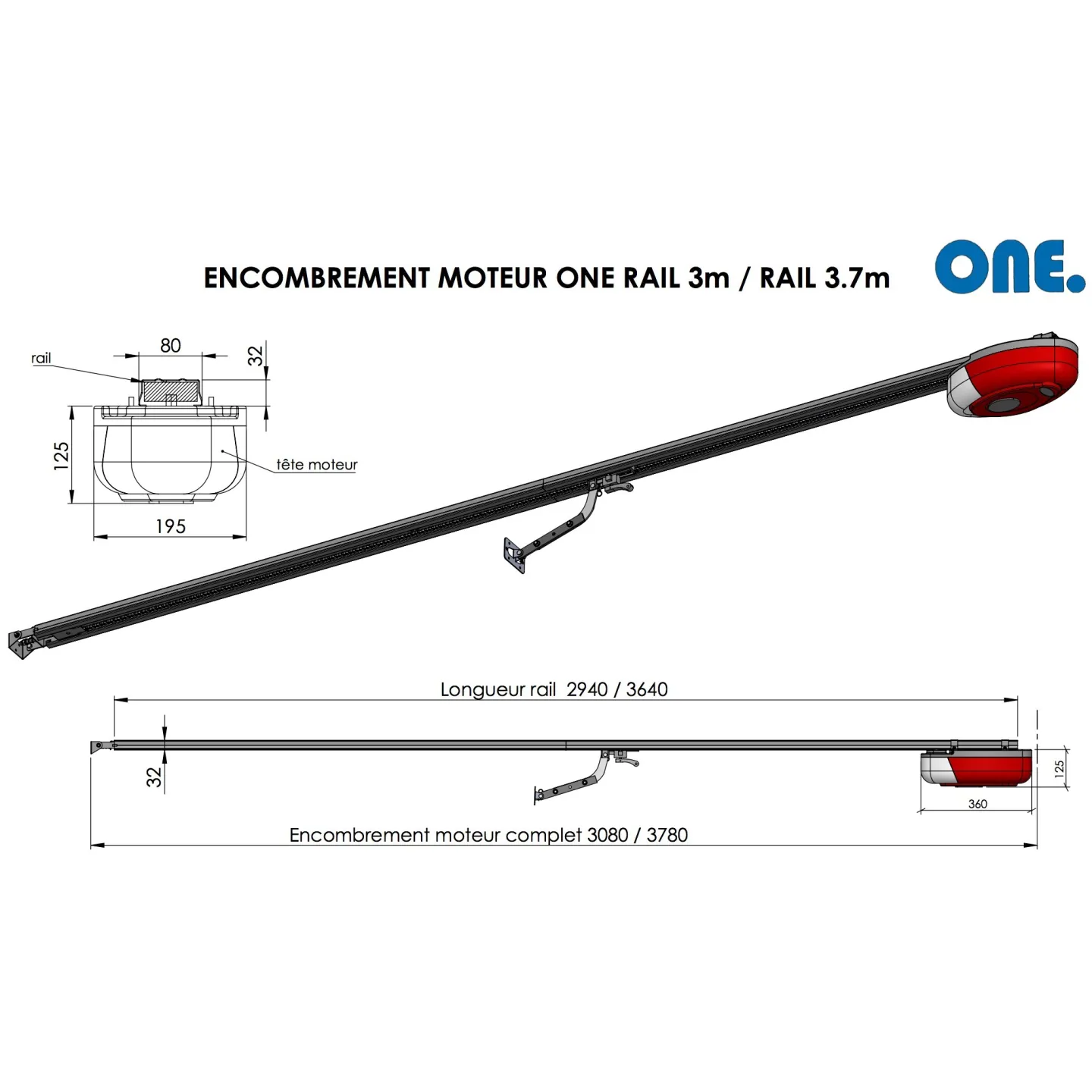

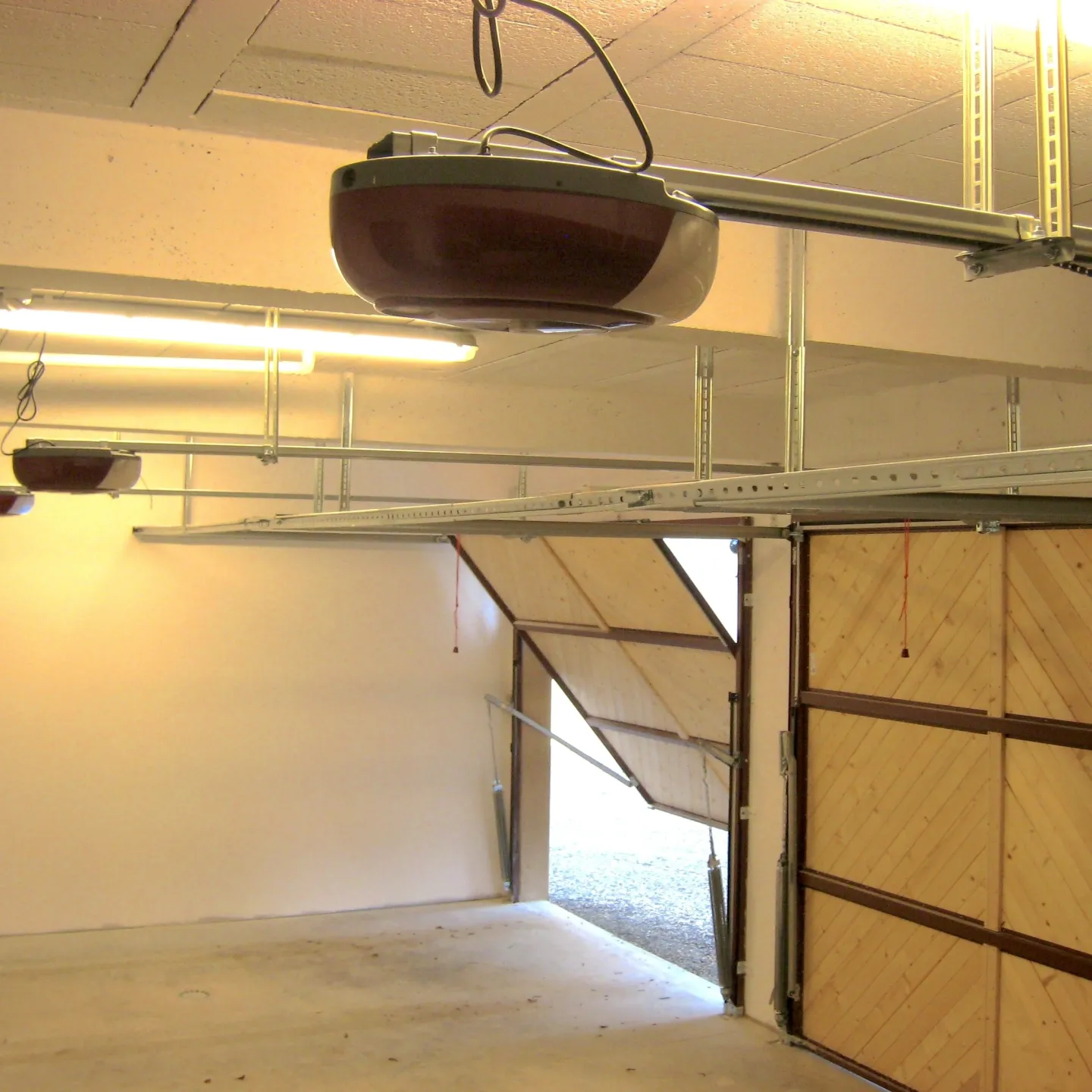

It is, of course, motorized, with a ONE operator and two remote controls.
during 30 days
Need help ?
Chat with us !
Credit card - PayPal - Bank transfer
from 150€ of purchase, by paying by credit card
Feuille de mesures pour devis et commandes porte Cadrea
Guide de montage pour porte basculante Cadrea
Vues en coupe de la porte basculante à barder Cadrea
Plans de coupe de la porte Cadrea au format DWG pour logiciel architecture et dessin
Create a garage door to your liking with our interactive configurator.
You can choose from all our ranges of up-and-over and sectional doors.
In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.
The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.
Tilting garage door to clad with a wood covering or any other material up to 90kg maximum.

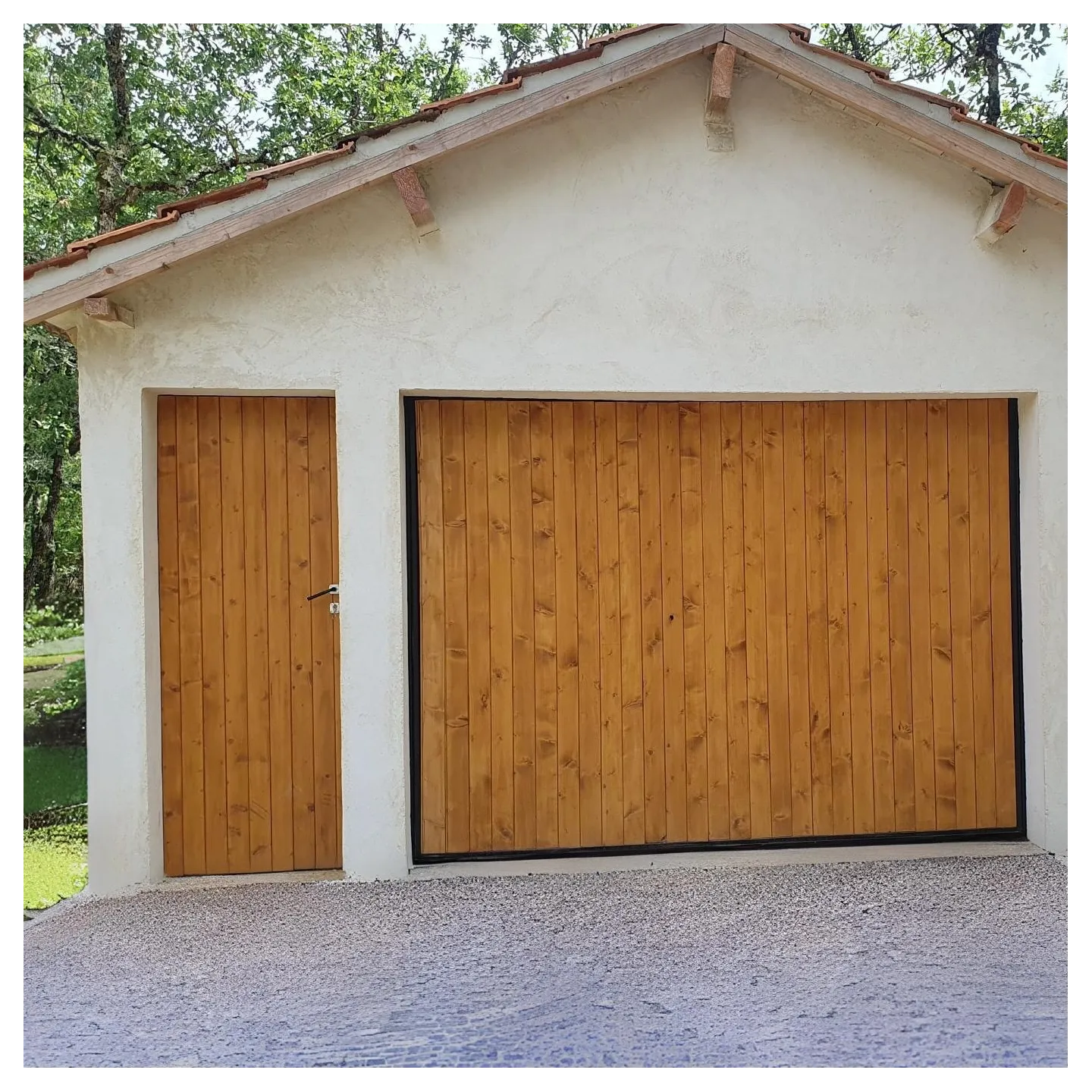

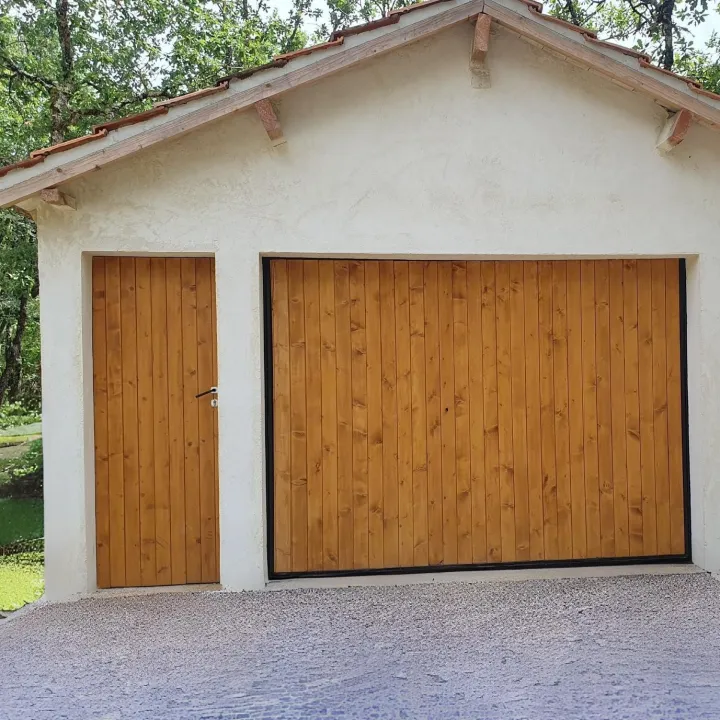

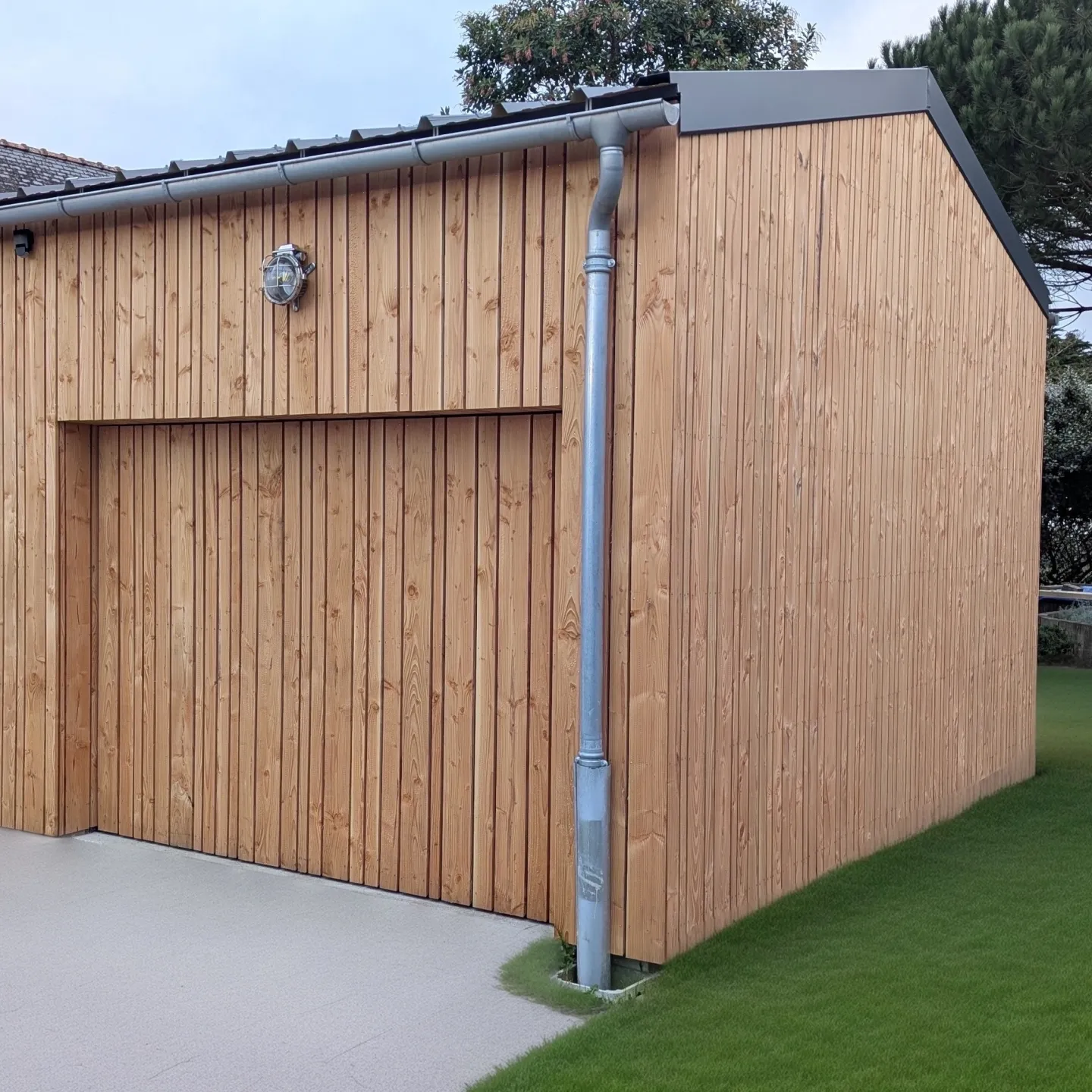

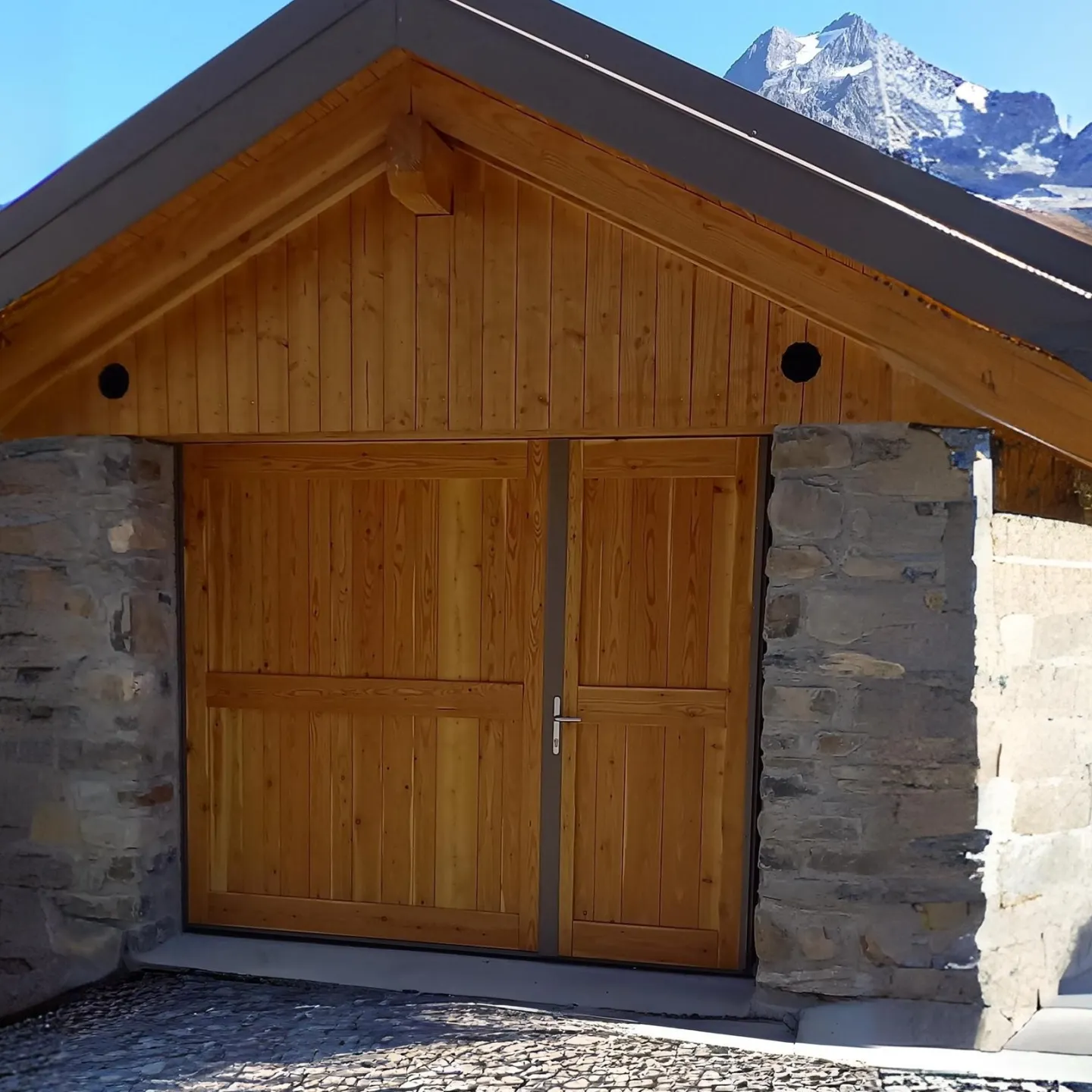

The Cadrea projecting tilting garage door is our most adaptable model. It is a bare-frame, supplied without cladding, to adapt to the most demanding projects with coordinated covering, for example, using the same wood as the facade cladding on which it is installed to blend into the decor. You can create a wooden garage door on a solid and proven steel base. Easy to implement in its version without a wicket door and motorized, it can also be delivered in a version designed to accommodate a wicket door or in a manual configuration for projects that do not allow for motorization.

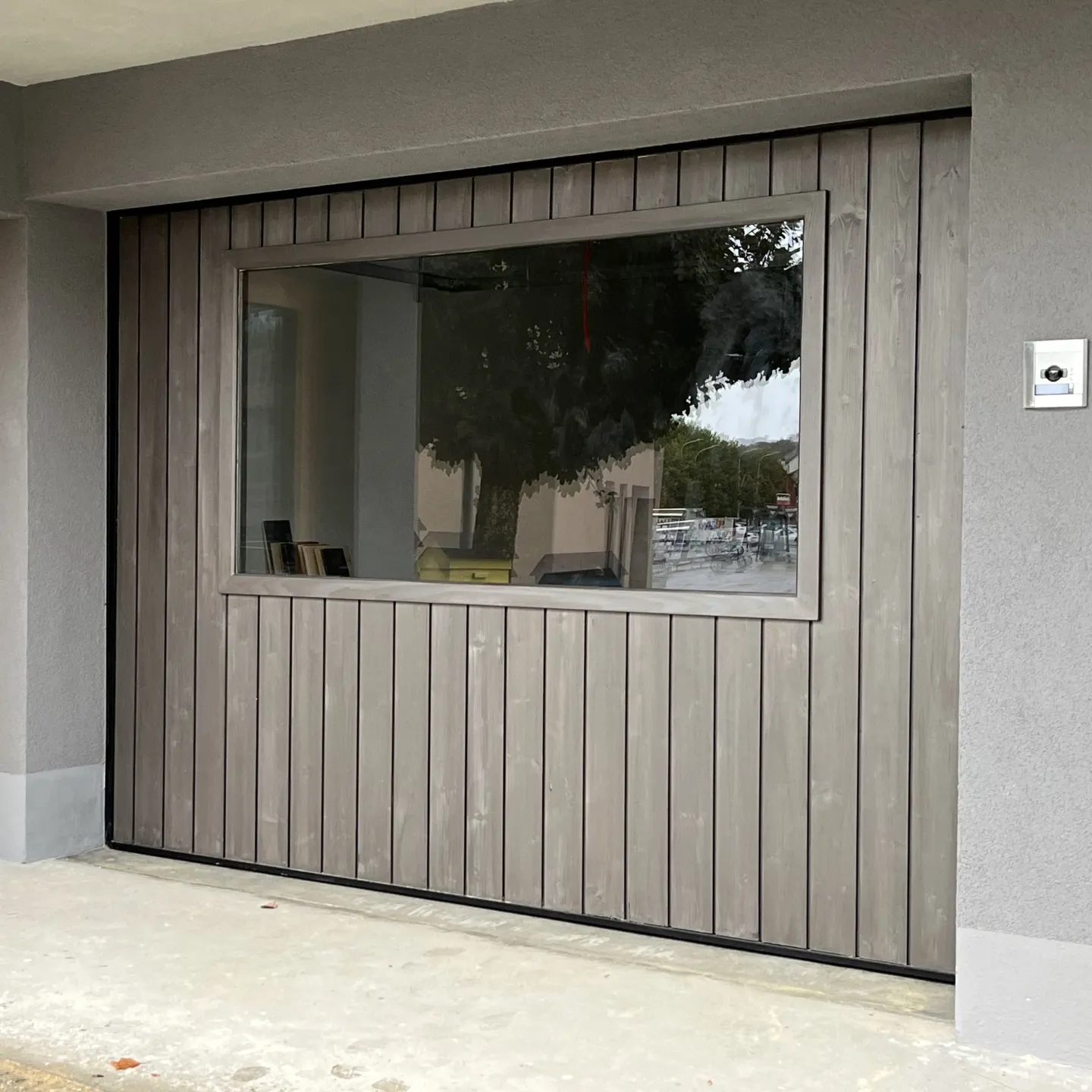

Its frame is entirely powder-coated in the color of your choice, as are the uprights and the top crossbar. Three cladding layout options are available with recessed fins (classic), flush, or with pre-cladding in 20mm insulated panels.
Regarding insulation, the door's structure is framed with our ZY profile double-lip seals to limit thermal bridging. The door's insulation will then depend on the installed covering (wood thickness, positioning).

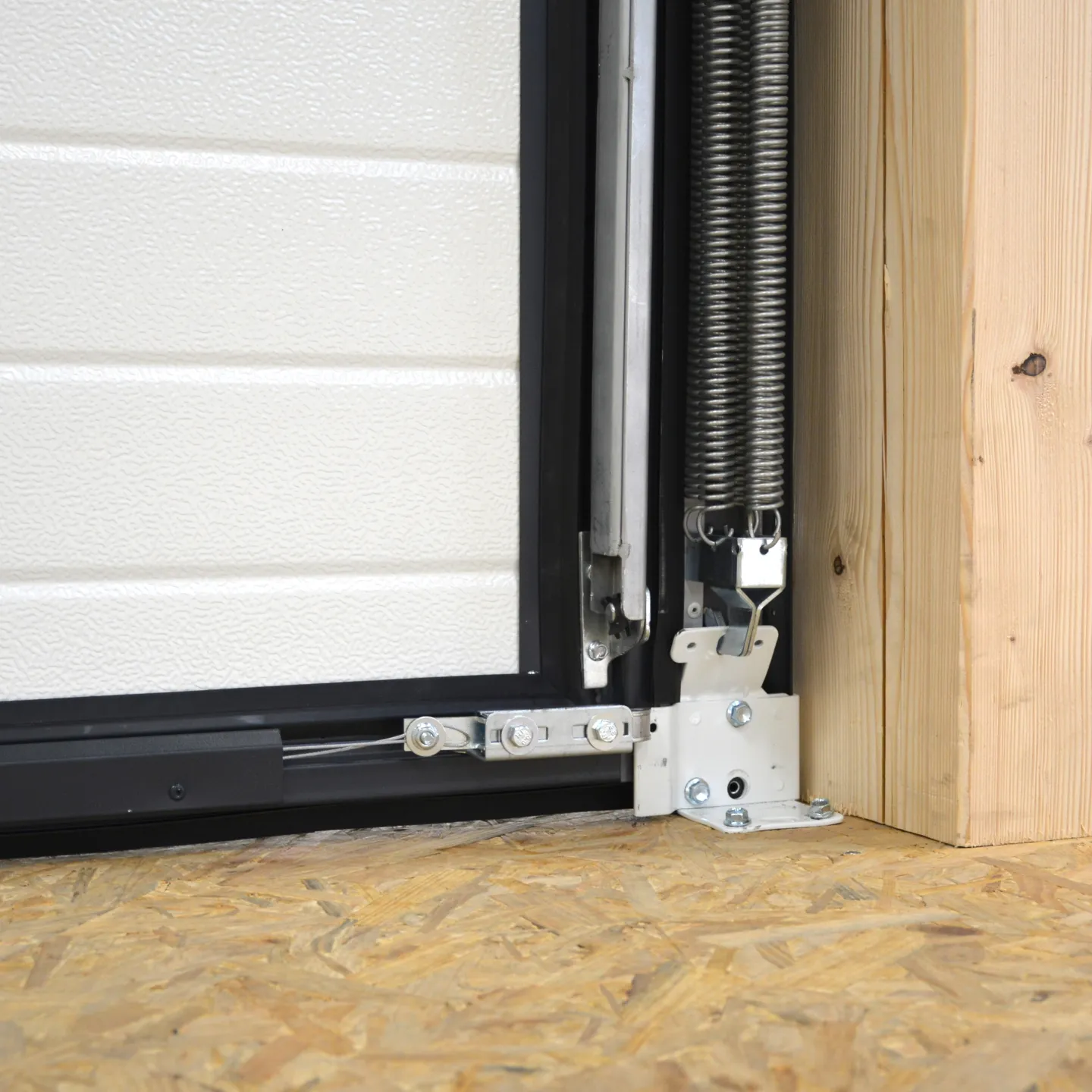

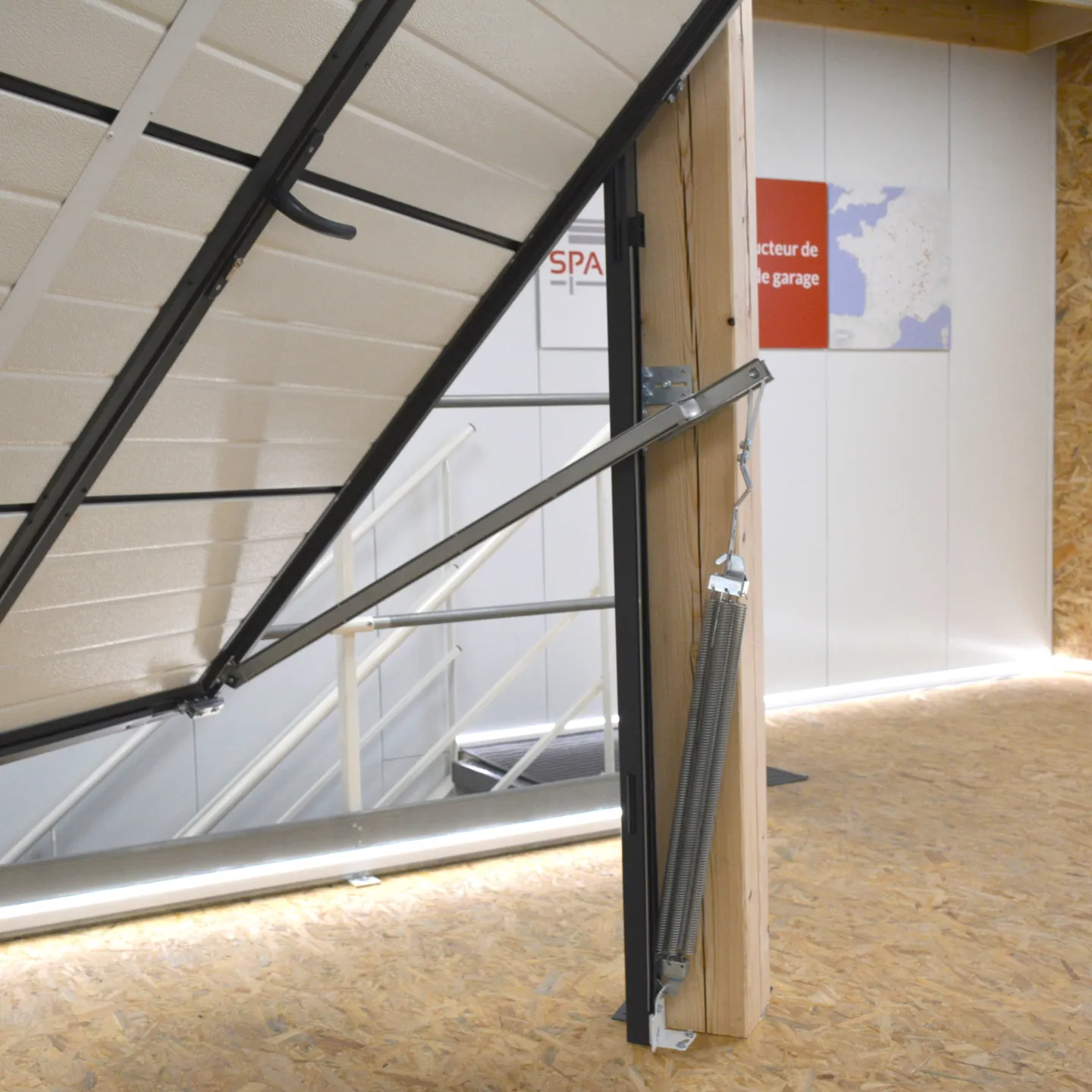

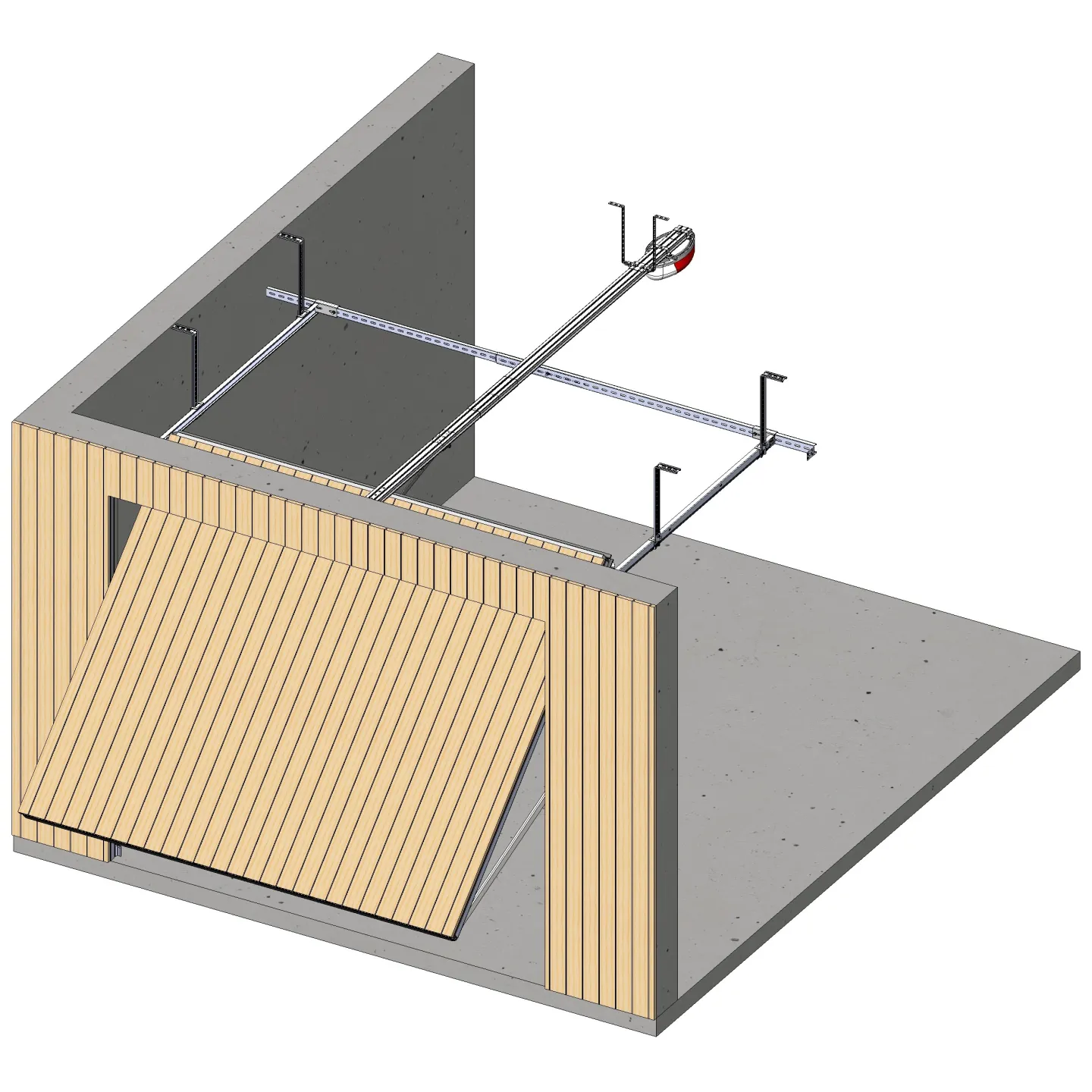

Mechanically, the balance is ensured by two multi-spring arms for greater safety and easy maintenance. Guidance by two horizontal rails and ball-bearing rollers provides great operational stability and significant durability.
This garage door is delivered pre-assembled with an illustrated assembly manual in French, written by our design office (see Documentation tab).
Available in custom sizes:
The hinges must be at least 65 mm to install this overhead door in surface mount (see measurements 3 and 4 in the sizing diagram). The lintel drop (measurement 5 on the diagram) must be at least 110 mm for the motorized version and 70mm for a manual version.
