Lara - Up-and-over garage door

The Lara up-and-over door is a 40mm insulated door, motorised and with a wicket door.

It offers a wicket door and maximum insulation for a reasonable price.

It is a standard or custom-made door, delivered pre-assembled (fully assembled in the factory).

Price: €1,920.00
Tax included

Need help ?

Chat with us !

Secure payement

Credit card - PayPal - Bank transfer

Pay in 3 times for free

from 150€ of purchase, by paying by credit card

Documentation

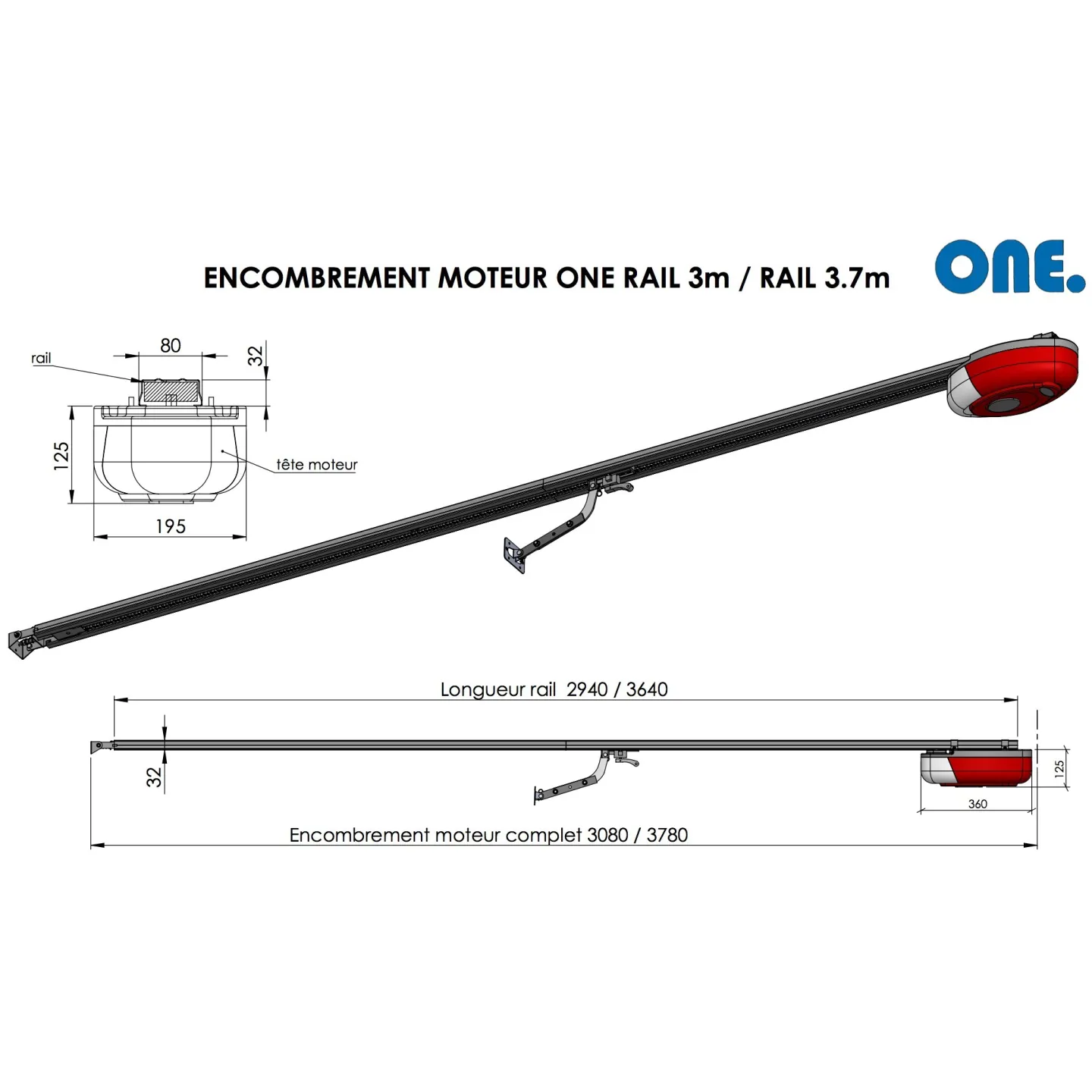

POSE INSTALLATION ENGINE ONE (FR

One 600 Engine Installation Manual, One 1000 and One 1200

Lara door installation instructi

Mounting Guide for Lara Tilting Door

Lara measurement sheet (FR)

Measurement sheet for Quotation and Order Porte Lara

Garage door configurator presentation image

Configure your garage door and get a free quote

Create a garage door to your liking with our interactive configurator.

You can choose from all our ranges of up-and-over and sectional doors.

In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.

10-year warranty

Our guarantees

The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.

Learn more

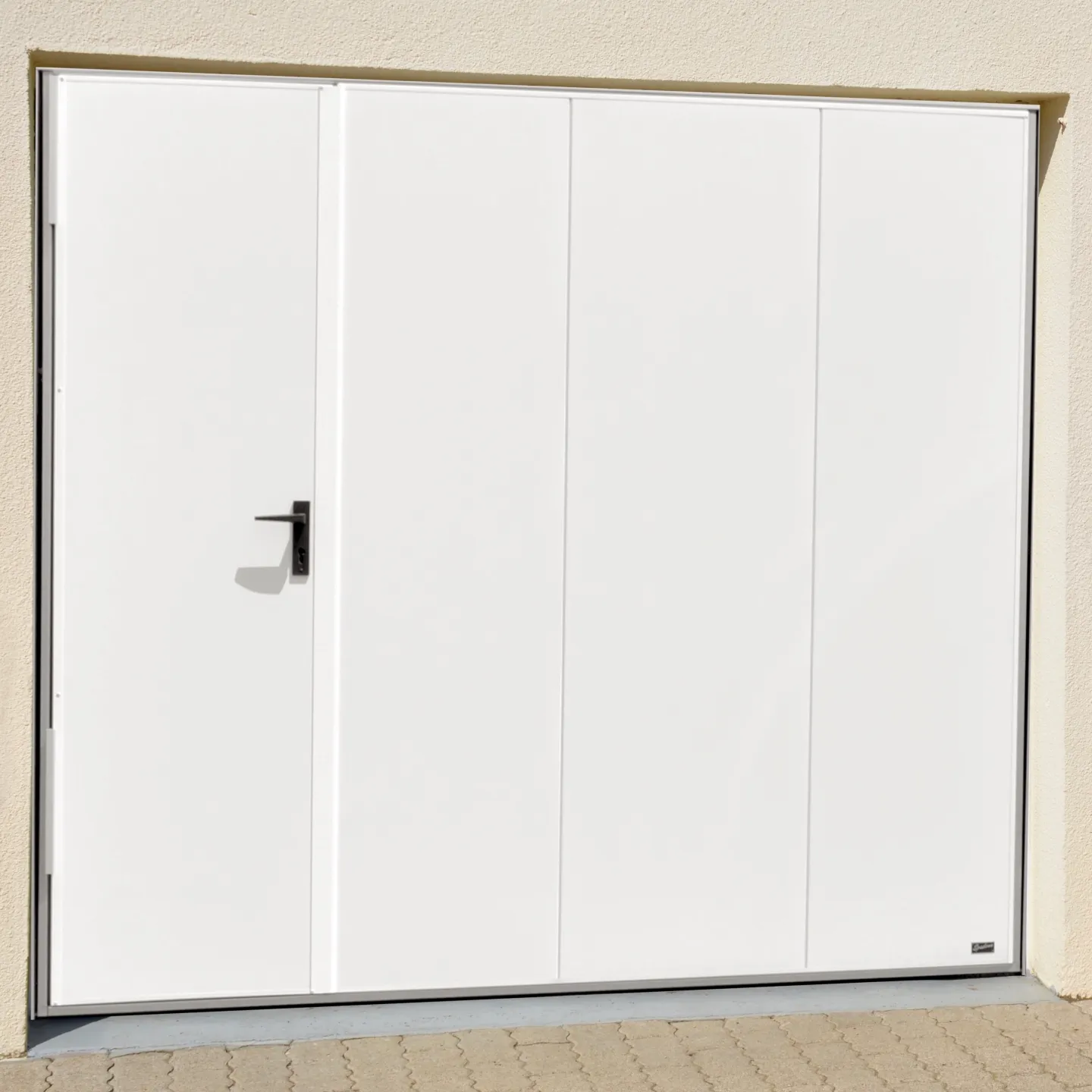

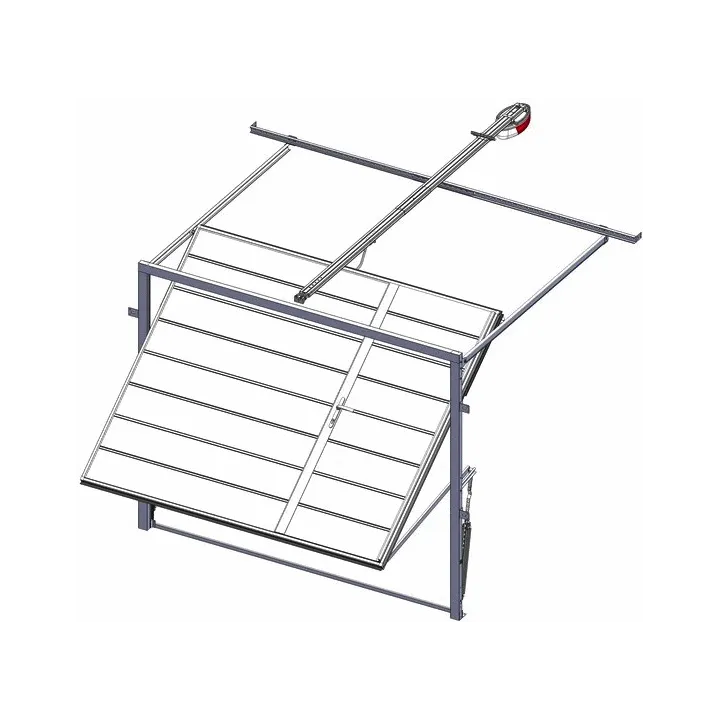

Insulating and motorized tilting garage door, 2 steel faces 0.35mm polyurethane foam 40 mm.

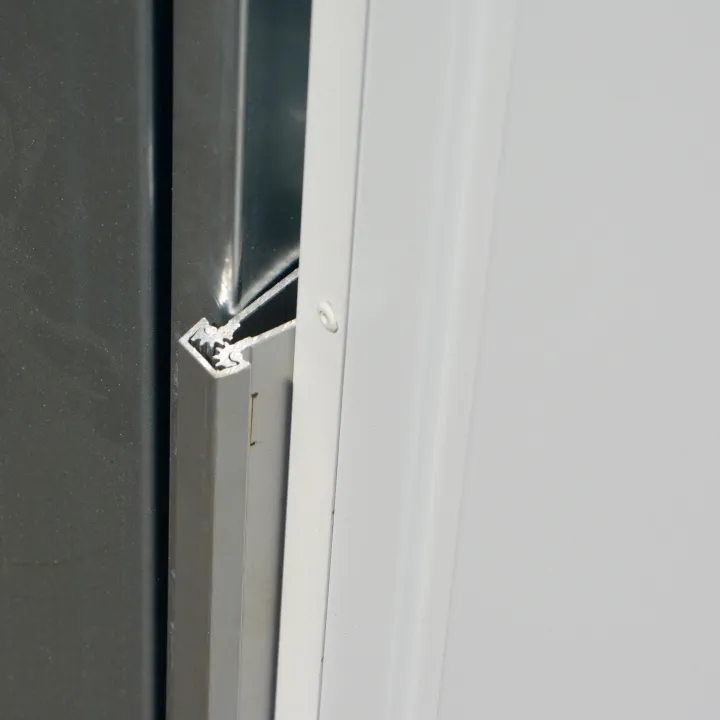

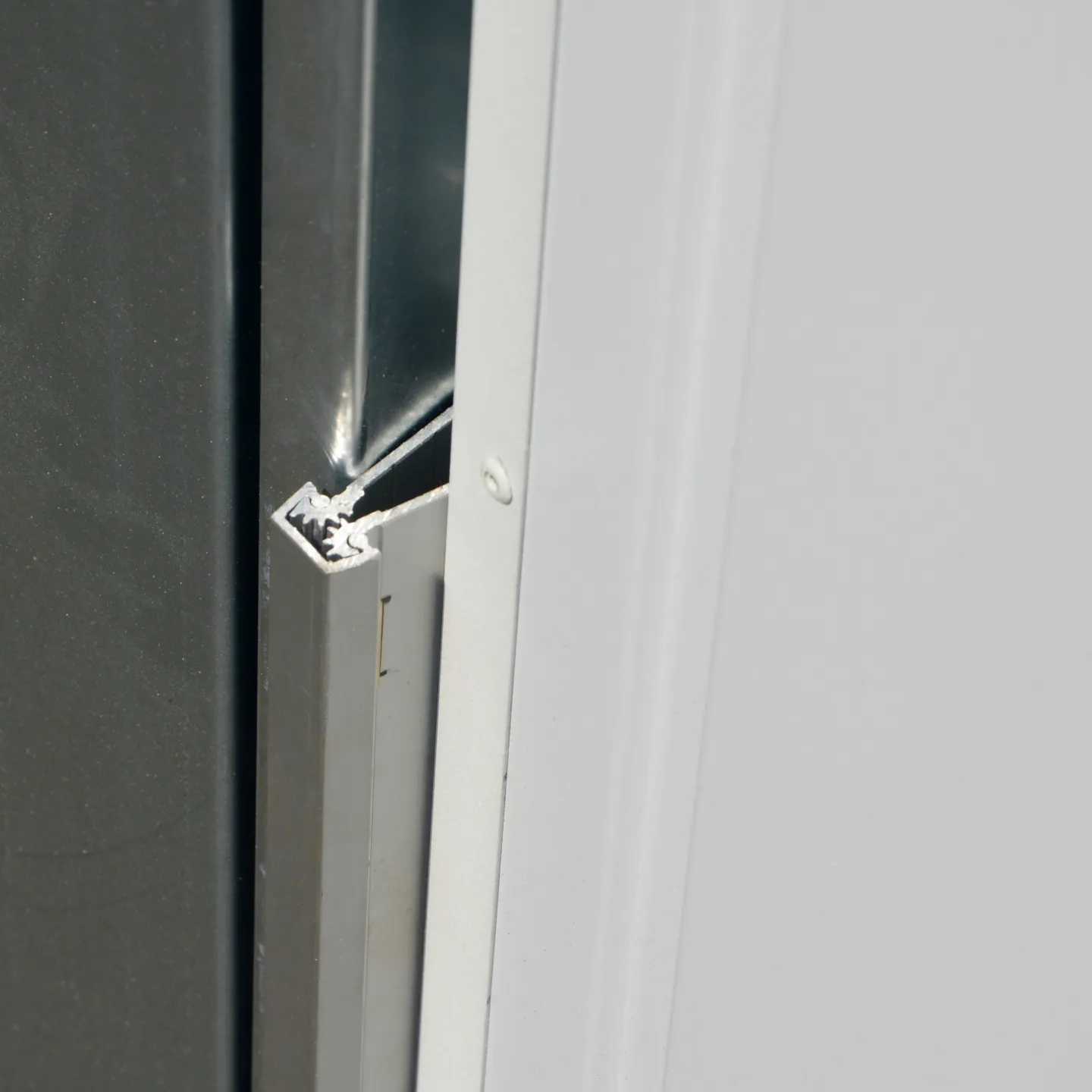

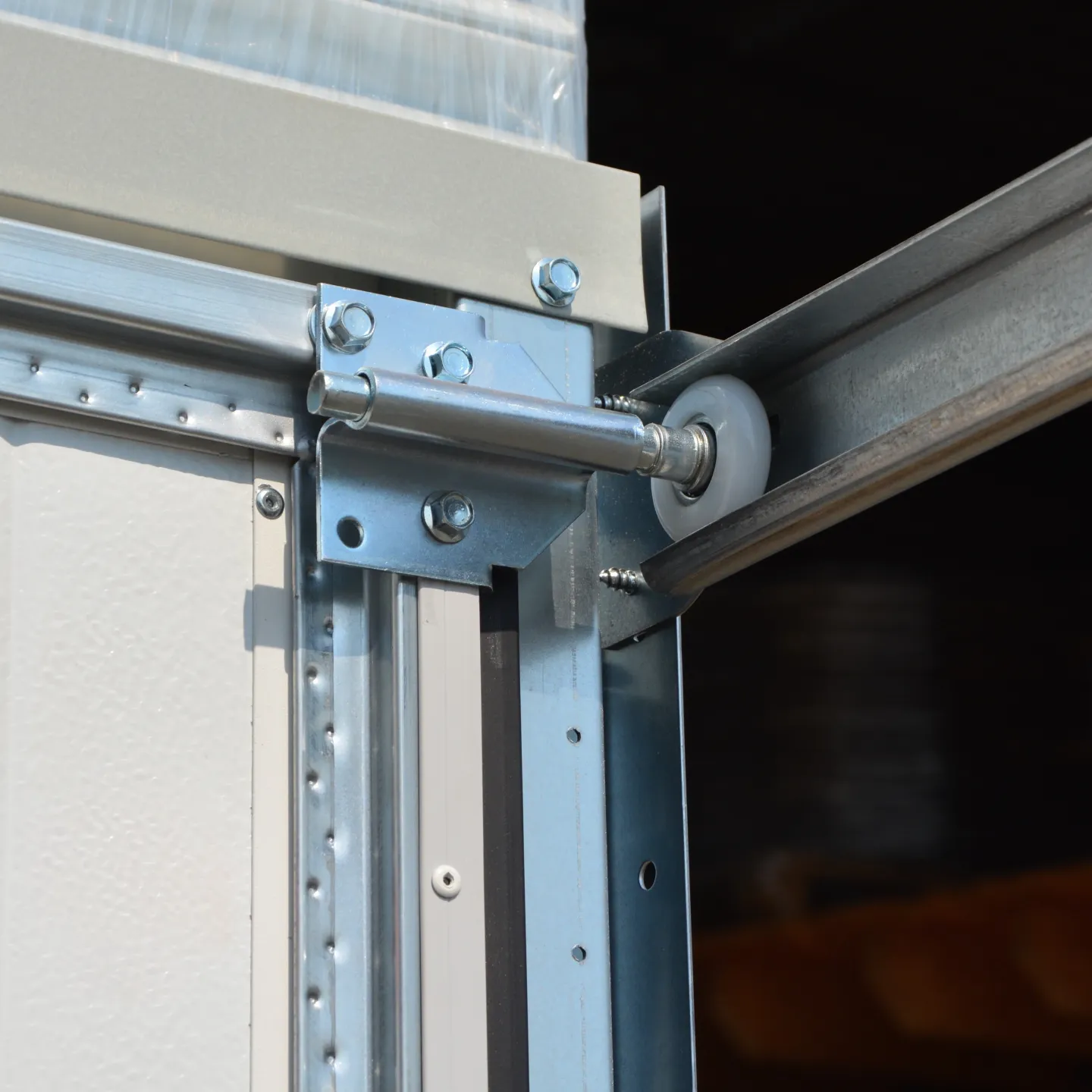

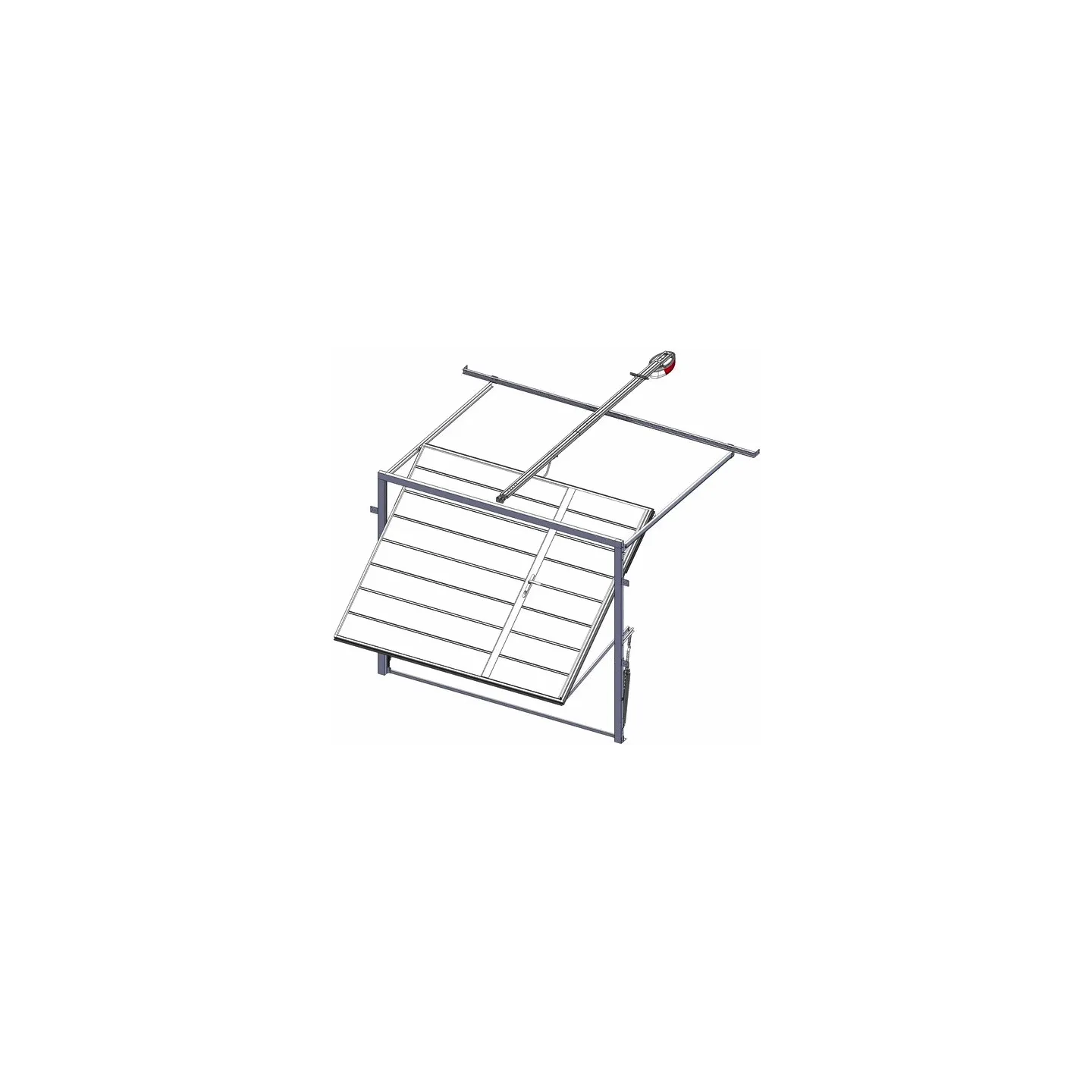

With its 40mm vertically grooved insulated panels, the Lara tilting door offers maximum insulation. This insulation is reinforced on the edges by our ZY profile double-lip seals placed inside the door. The balancing is done, like on all our other tilting doors, by multi-spring arms for increased safety and ease of maintenance. Guidance is ensured by two horizontal rails and ball-bearing rollers, providing great operational stability.

The Lara tilting doors include a service door with a 1-point lock and black PVC plates and handles. The hinges are made of anodized aluminum with an anti-lift safety feature. It is also possible to add fixed locks for even more security during prolonged absences.

This garage door is delivered to you pre-assembled with an illustrated assembly manual in French, written by our design office (see Documentation tab).

Thermal resistance coefficients

Ud = 0.56 W/m²K for panel only

Ud = 0.95 W/m²K for the complete curtain (= assembled panels)

Ud = 1.48 W/m²K for an installed door, considering installation on a standard support

Measurement of sectional garage door

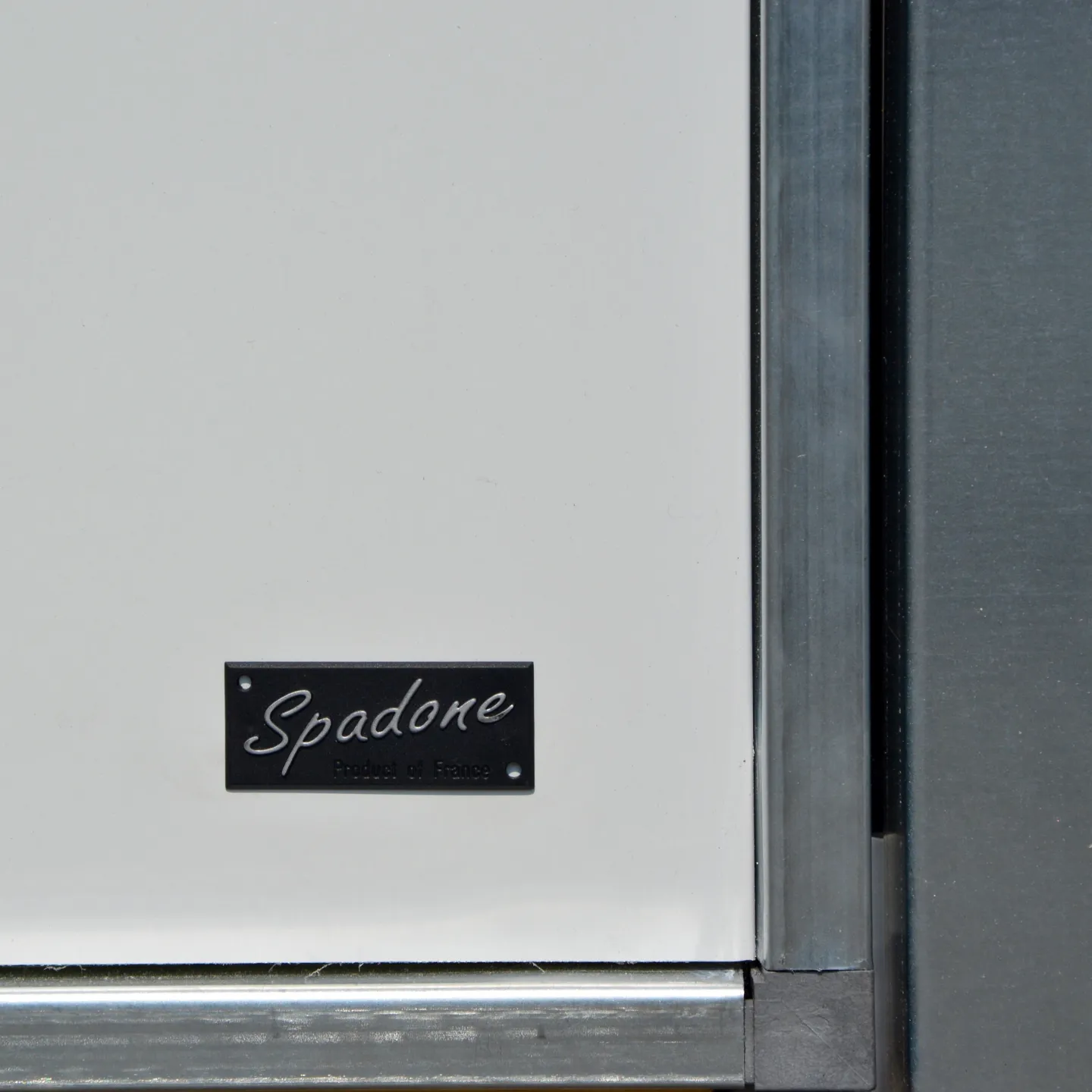

French-made garage door

Dimensions

Available in 6 standard sizes:

  • L2400 / 2500 / 3000 mm and H2000 / 2125 mm

or custom-made:

  • Width from 2000mm to 3000mm
  • Height from 1800mm to 2250mm

The gaps must be at least 65 mm to install this sectional door (see measurements 3 and 4 in the sizing diagram). The lintel drop must be at least 110 mm (measurement 5 on the diagram).

The + products

  • Excellent thermal and sound insulation
  • Fully mechanical anti-lift security on the motor
  • Robust steel mechanics

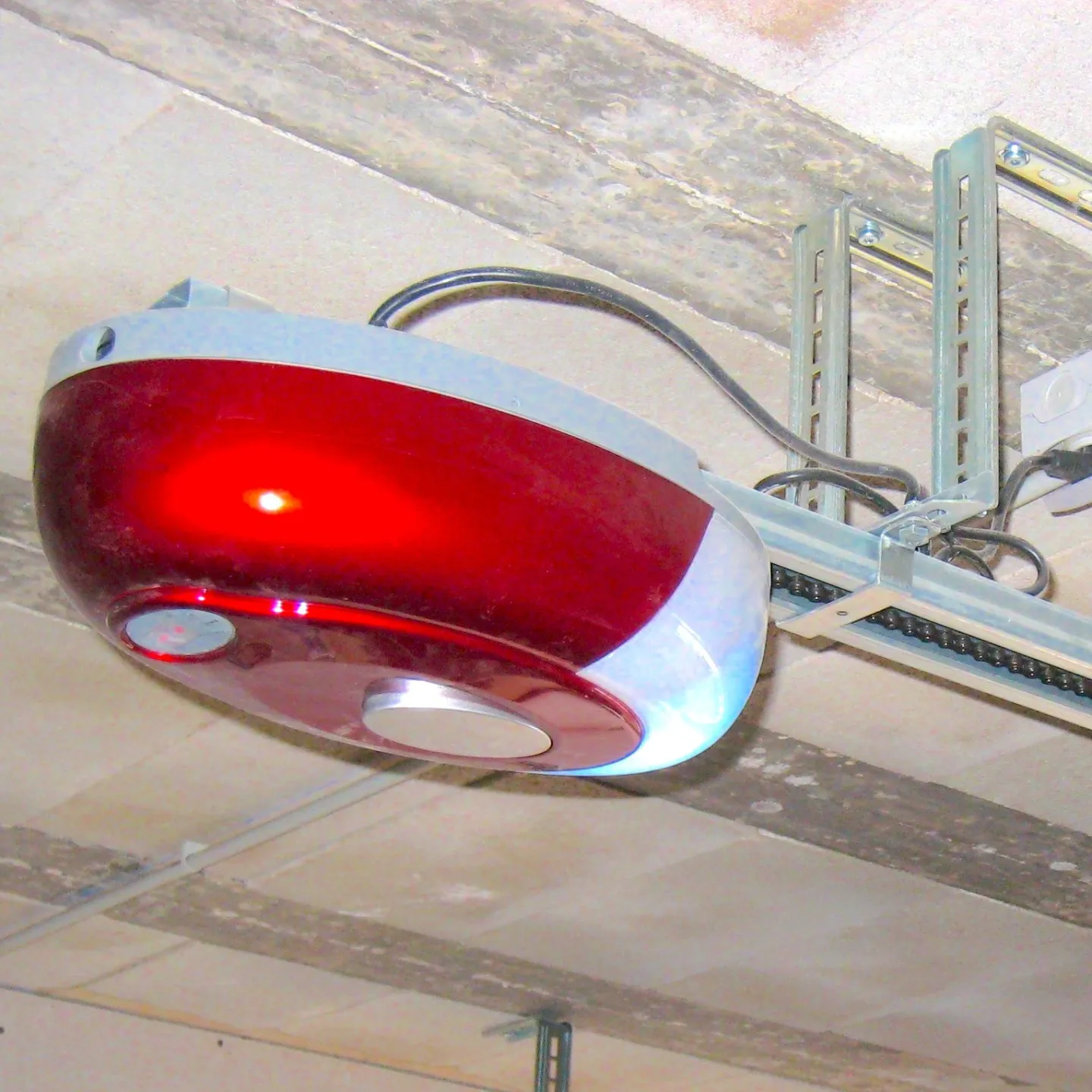

  • Motorized with 2 remote controls & very simple settings
