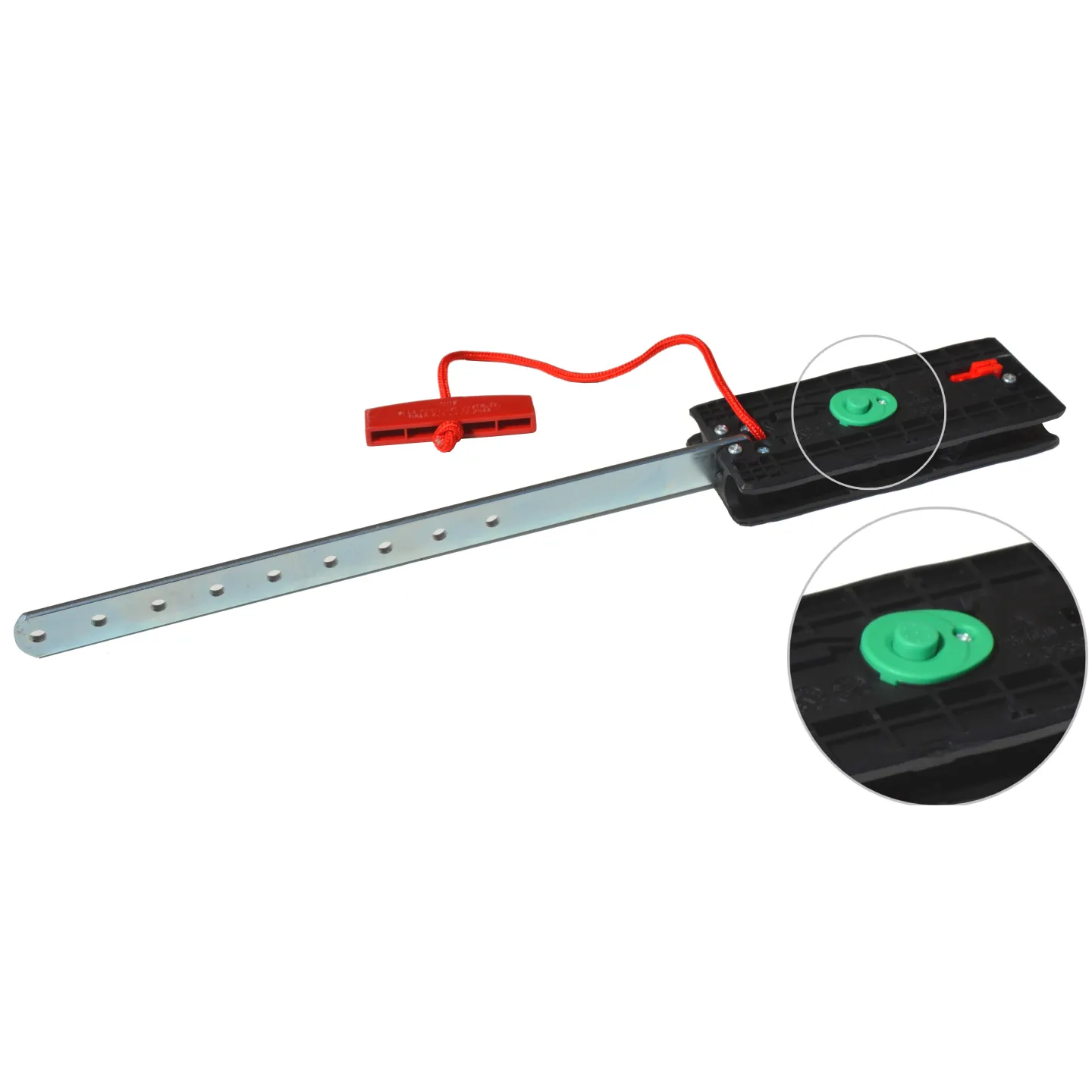

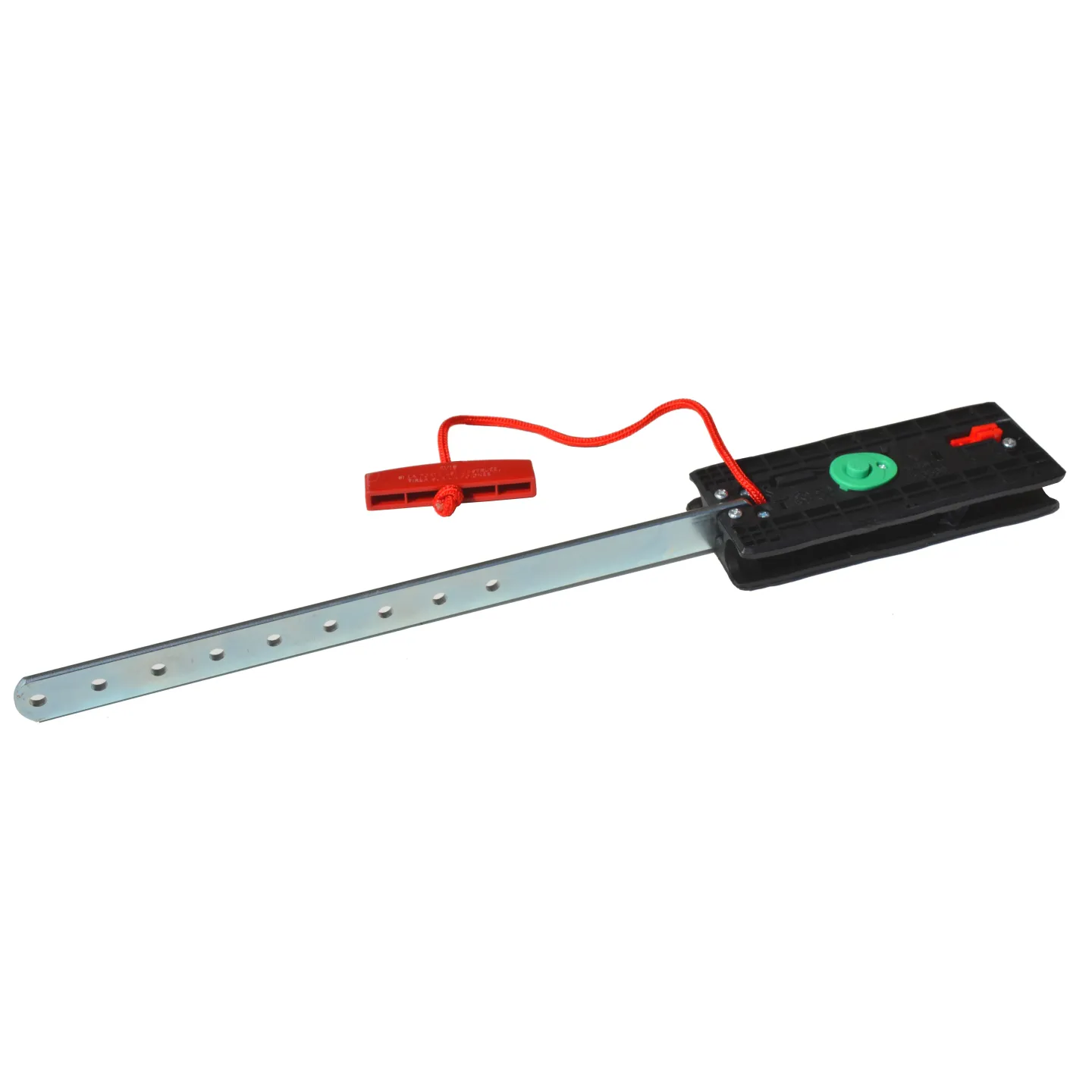

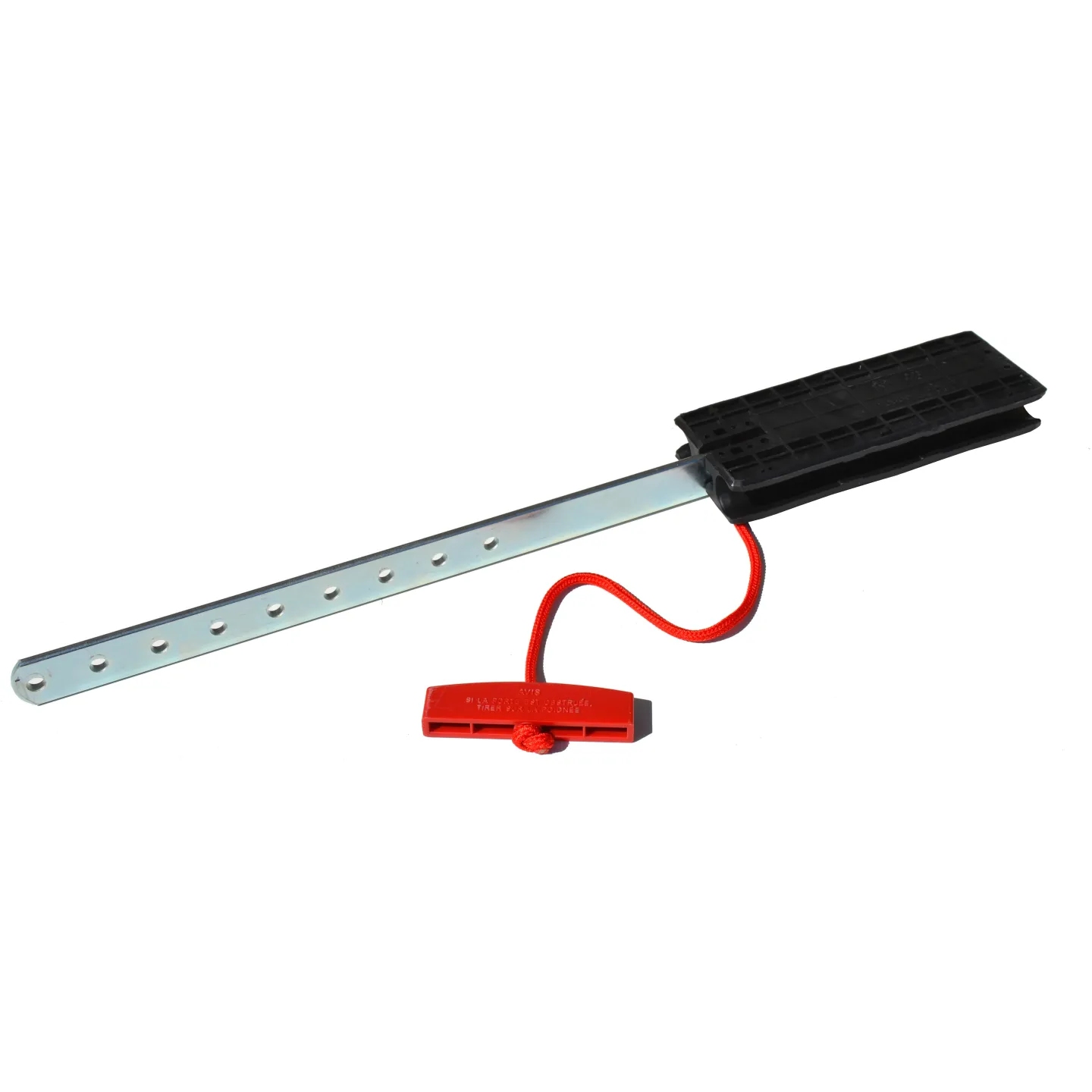

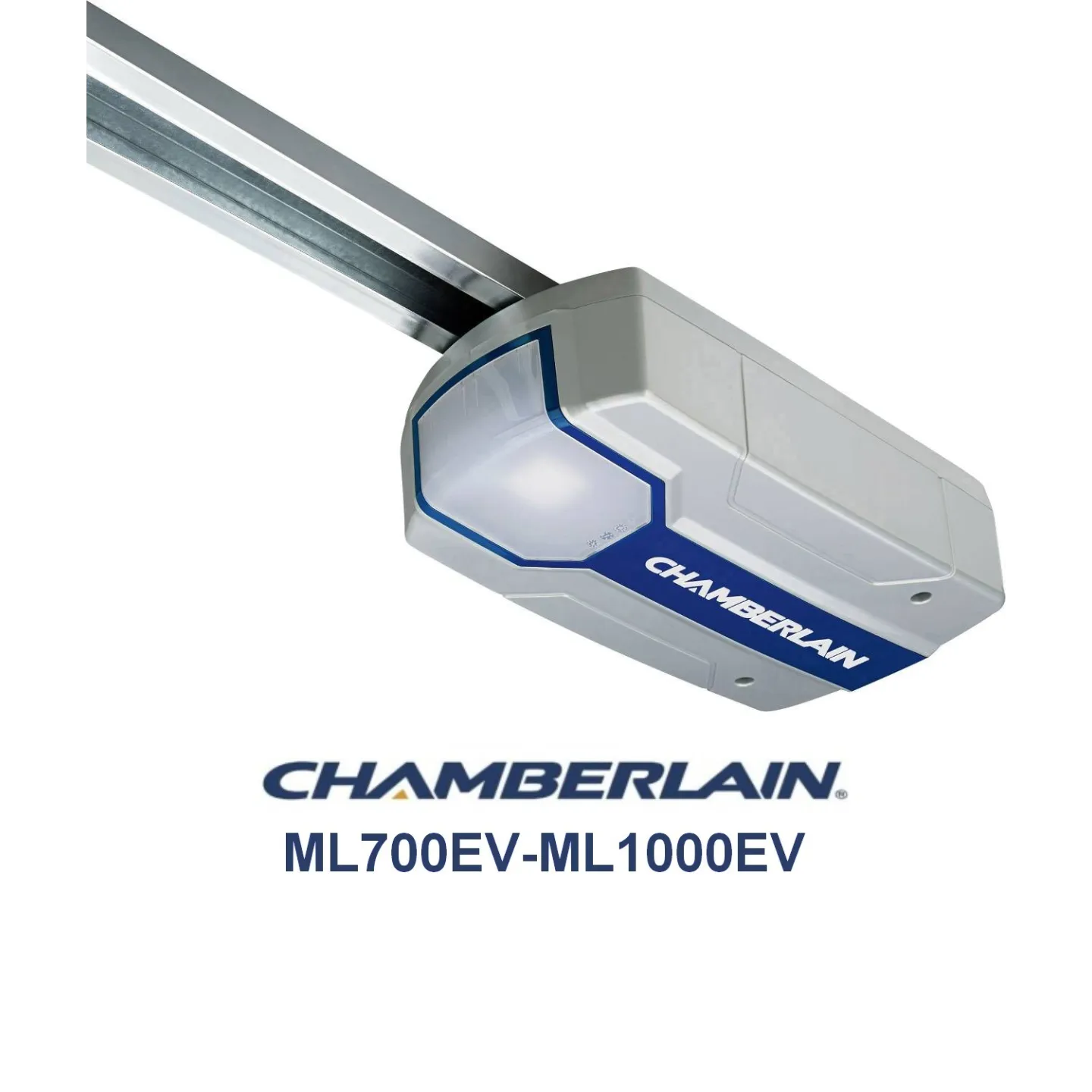

Carriage for Lifrmaster Chamberlain ML700EV-COMFORT and ML1000EV-PREMIUM motor
Delivered with its integrated steel connecting arm
This carriage has a string and a green button to disengage and switch the garage door to manual mode in case of motor failure or power outage.
Reference: 041A4037
This carriage is also compatible with the motors:
ML800EV, ML1000EV-S, ML1000EV-F
In stock, delivery within 48 hours
during 30 days
Need help ?
Chat with us !
Credit card - PayPal - Bank transfer
from 150€ of purchase, by paying by credit card
Order today before 1pm and receive your order on Wednesday 18 November 2026 (Delivery time to France)
Create a garage door to your liking with our interactive configurator.
You can choose from all our ranges of up-and-over and sectional doors.
In just a few clicks, select the dimensions, color, designs, and windows you want for your Spadone garage door installation project.
The purchaser of a Spadone garage door benefits from a 10-year warranty starting from the date of purchase, ensuring reliable and secure operation of their garage door under normal conditions of use and installation.
In order to replace the external carriage of your motor, you need to dismantle the rail with the belt. To perform this replacement, it is easiest to position yourself at height on trestles, thus avoiding tiring overhead work.
1. Detach the arm connecting the motor carriage to your garage door
2. Separate the motor head from its ceiling mount
3. Do the same with the rail attachment on the lintel
4. Place the assembly on trestles to loosen the chain: at the end of the rail, you will find the belt tensioner with a nut and the compression spring.
5. Once the belt is loosened, remove the motor head to then take out the carriage (whose internal part is simply connected to the chain by the drive link)
6. Reverse these steps to put the motor back in place.
This part may be compatible with some garage doors Chamberlain,
