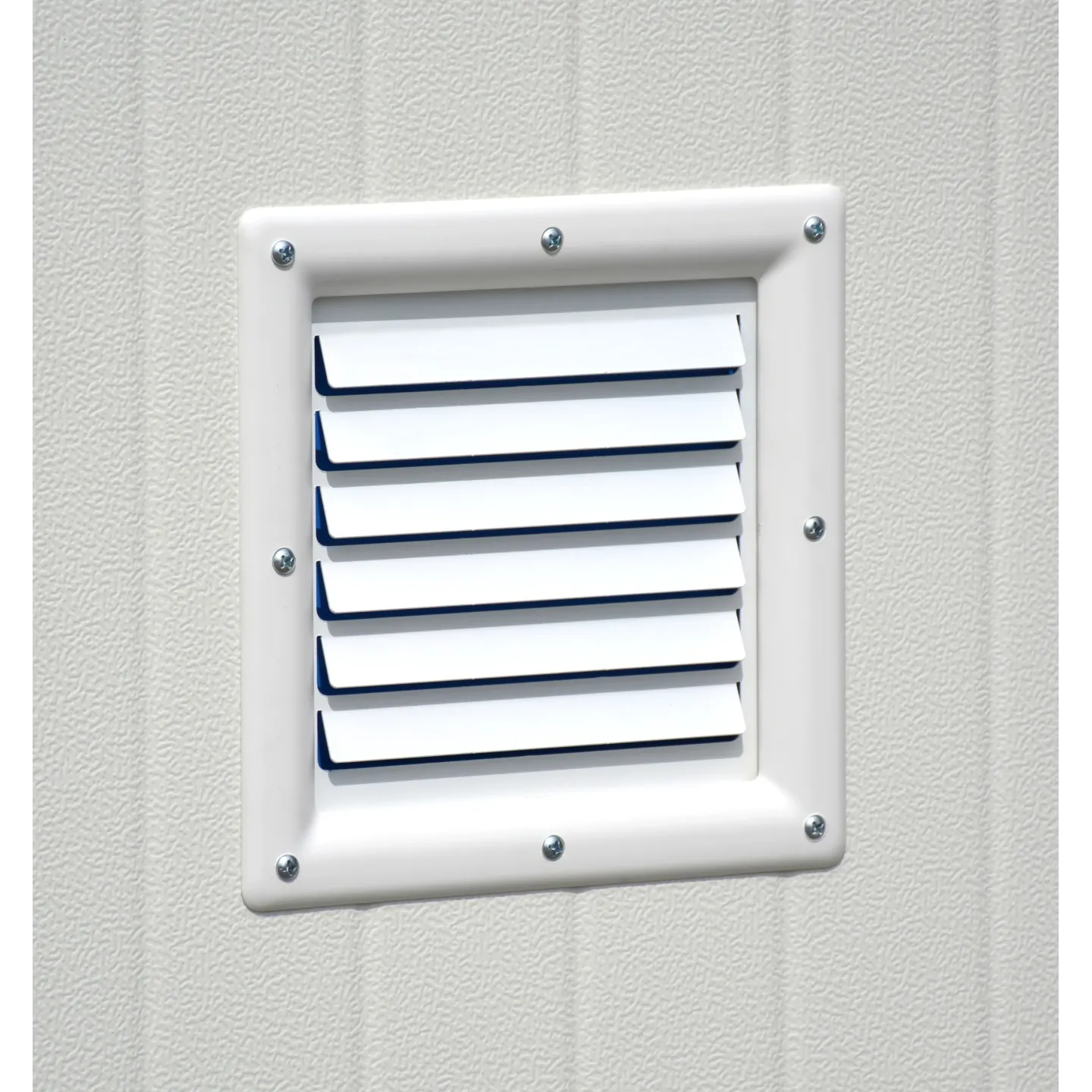

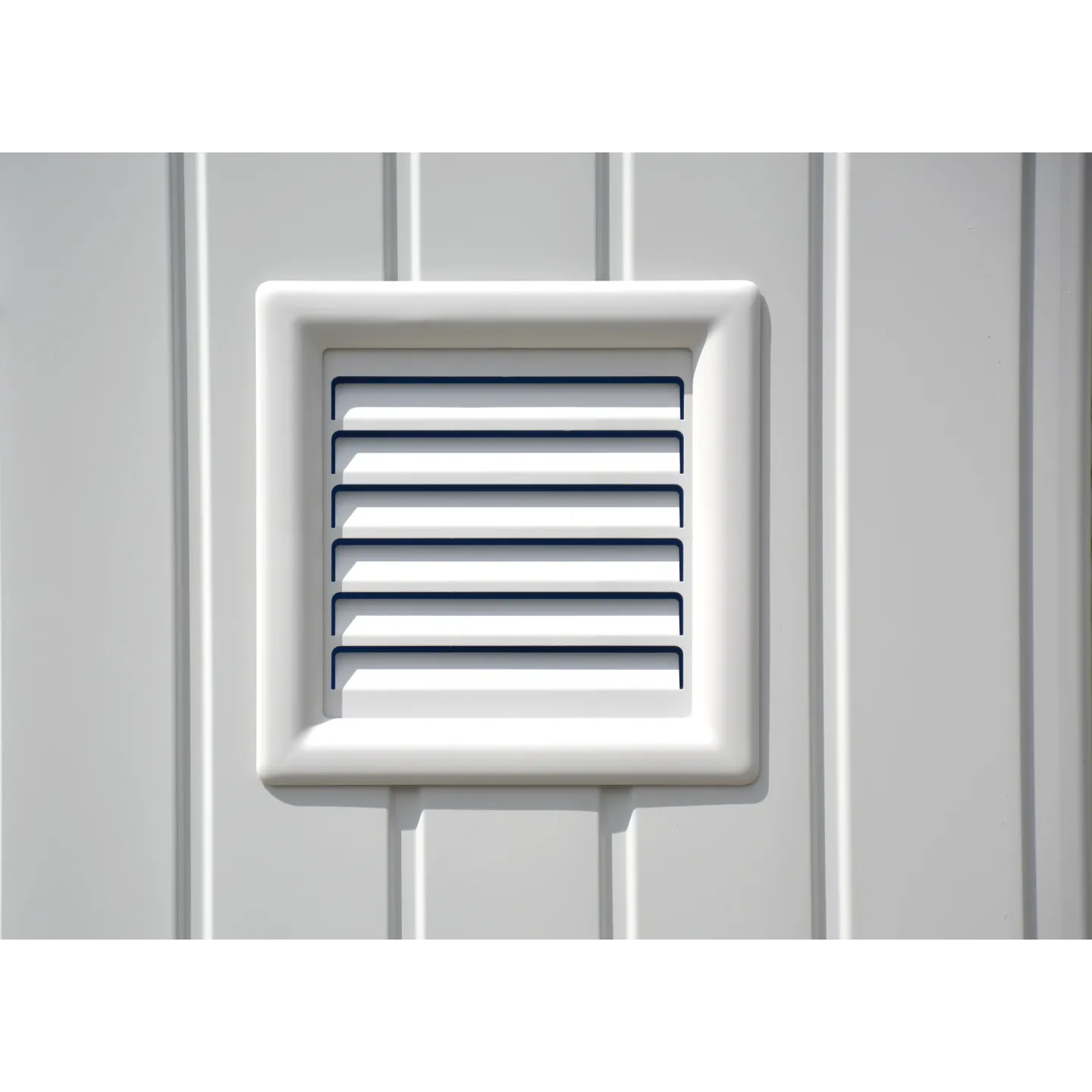

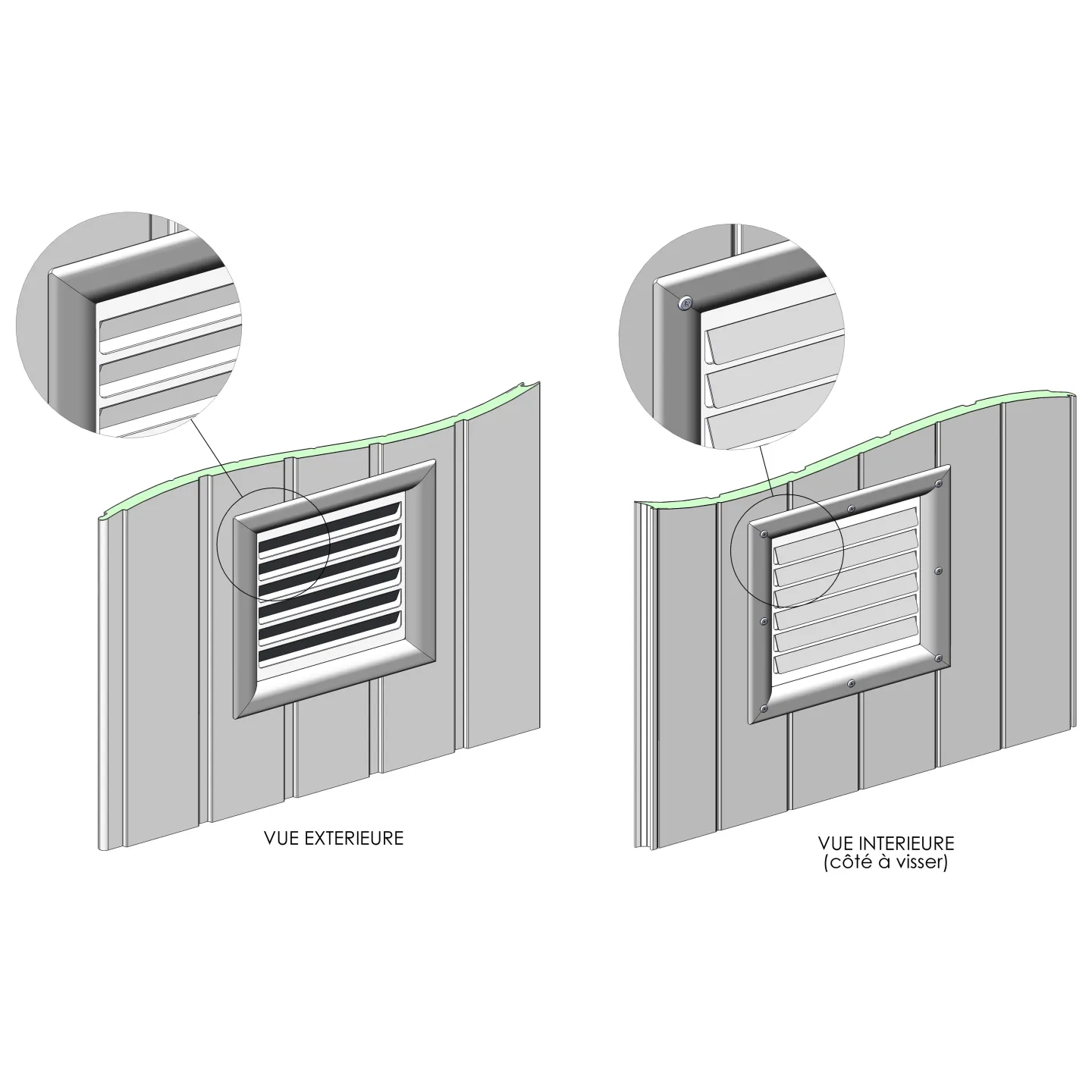

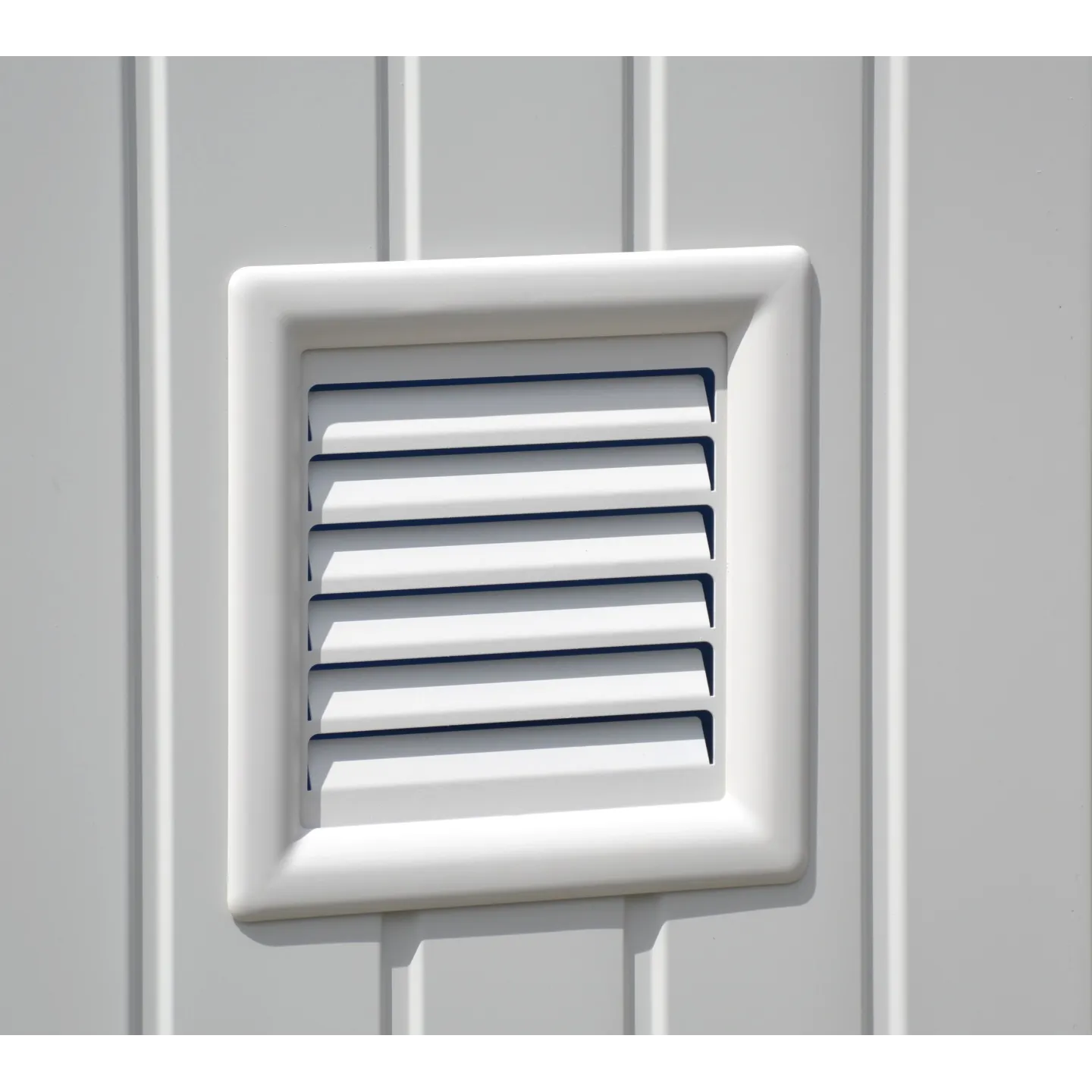

Slatted steel ventilated grille for garage door or other partition
2 versions:
- for panel thickness 20 mm
- for panel thickness 40 mm
2 colors:
- White 9016
- Anthracite Gray 7016
Â

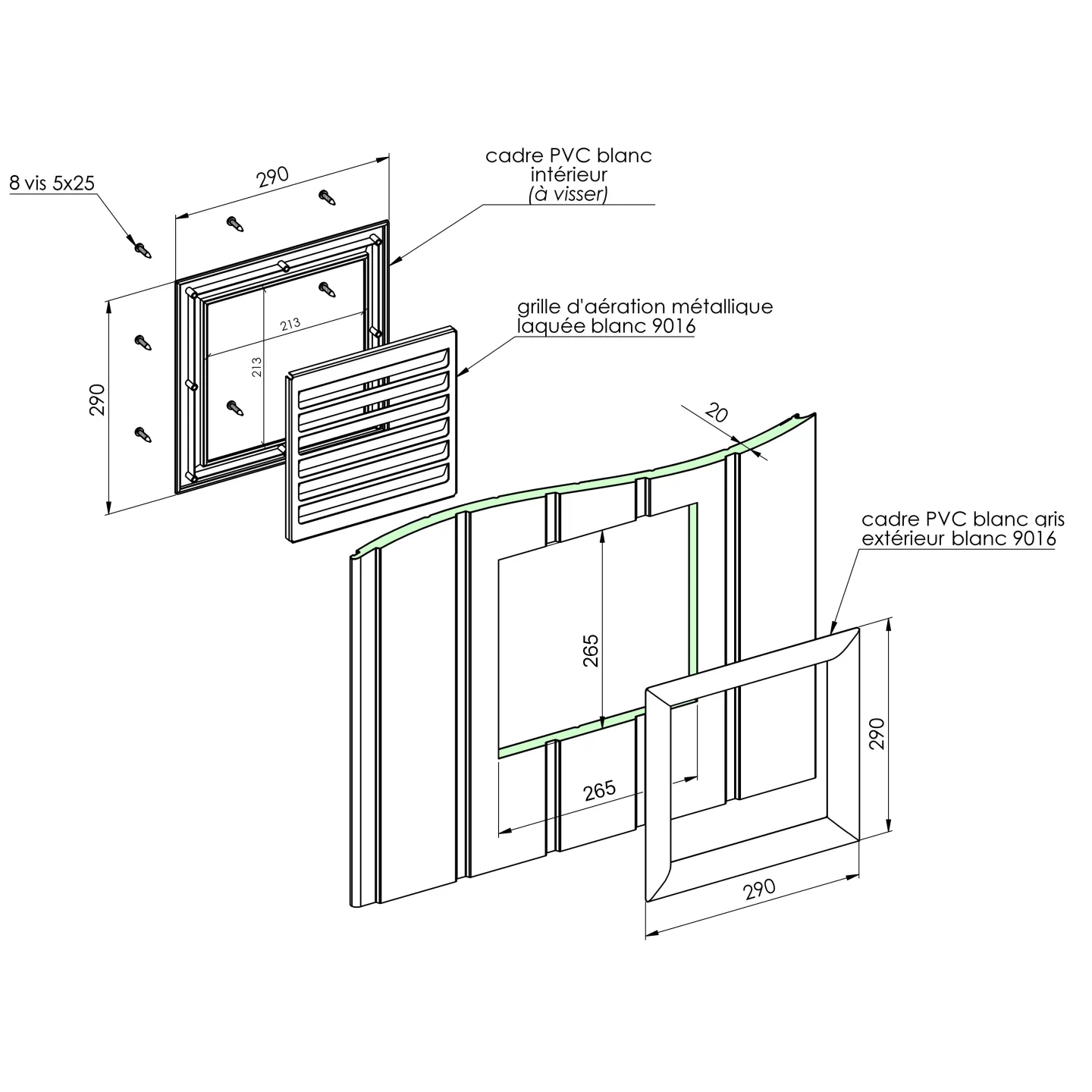

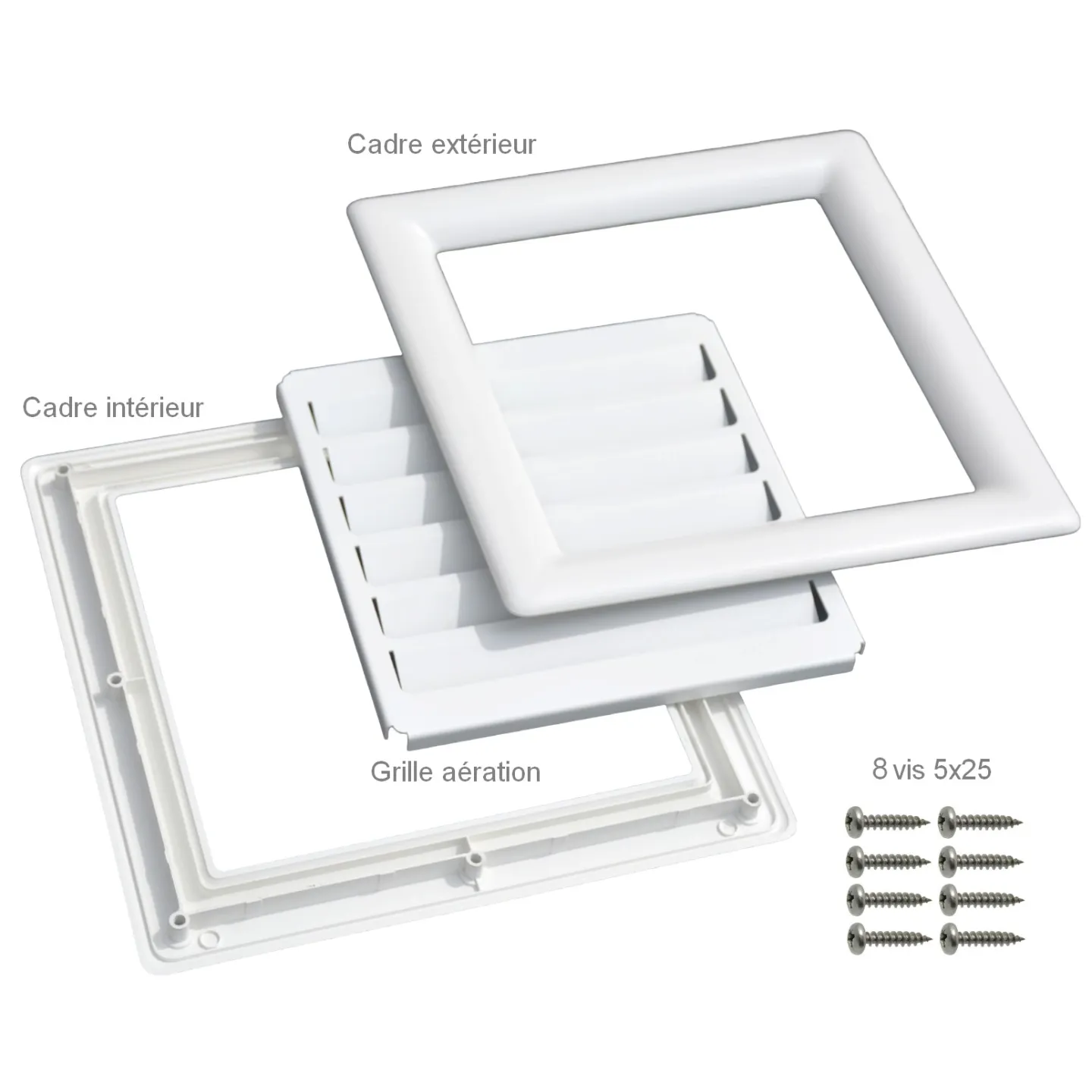

1 square PVC exterior frame white or gray
1 square PVC interior frame white
1 steel grille thickness 1mm white or gray
8 screws 5x45 (version 40mm) / 8 screws 5x25 (version 20mm)
Exterior dimension: 290x290mm
Drilling dimension: 265x265mm
In stock, delivery within 48 hours
during 30 days
