Spring for overhead garage door - Type A
Outer diameter: 19 mm
Length without tension: 355 mm (including loops)
Working length: 700 to 800 mm
Price:€14.40
Spare parts for Tubauto
Welcome to our page dedicated to spare parts for up-and-over garage doors and Tubauto sectional doors. It is important to keep your garage door in good working condition, which is why we offer a range of spare parts compatible with Tubauto doors.
Whether you need locks, springs, hinges, cables, or a roller for your garage door, you will find what you need here to extend the life and ensure the proper functioning of your Tubauto garage door. Browse our selection and order with ease. Our spare parts are designed to offer reliable and durable performance.
These brackets allow you to attach your type A springs to the bottom of the post and the arm of your tilting door.
You can place up to 7 Type A springs per side with these brackets.
The old single "large springs" placed on each side of the old tilting garage doors are now non-compliant. We use a single spring model by varying their number. These springs are assembled using this pair of brackets.
Price:€12.00
Multi-spring kit for overhead garage door + 2 hooks (the set)
Replaces old "large springs" diameter 4 to 5cm
Length of the kit (hooks + springs): 460 mm
Consult the table to know the number of springs for your door (Indicative values, balancing may vary depending on the design)
Warning: (1 kit = 1 side)
Advice: change both sides at the same time to keep your door balanced, that is 2 kits.
Price:€64.90
Steel swing arm for overhead garage door.
Reversible arm model suitable for right or left. Arm sold separately without accessories.
Â
3 arm lengths available:
Door height 1800-1999 Â Ref. M - 1000mm
Door height 2000-2249 Â Ref. S - 1100mm
Door height 2250-2499 Â Ref. X - 1215mm
Â
If the length of your installed arms differs from those indicated, change both sides to keep your door balanced.
Price:€66.00
Roller supports for up-and-over garage door (the pair):
2 roller supports for up-and-over doors
2 white nylon rollers (shaft diameter 11mm L95mm, roller diameter 45mm, ball bearing)
4 sheet metal screws 6.3x25
2 sheet metal screws 6.3x15
Price:€34.80
Suspension bracket and rail support, made of galvanized steel, to facilitate the installation of garage doors.
Two available lengths: 450, 600 or 750 mm
Two types of supports (+ 1 M8 bolt): for single rail or double rails
Suitable for installing sectional or up-and-over garage doors.
Price:€9.90
Telescopic Spacing Crossbar 2x1.80 meter (per unit)
This crossbar allows you to attach the back of your garage door rails to the ceiling and/or walls. It can extend up to a maximum of 3m.
A model of 2x2.40m, which can extend up to 4.2 meters, is available here.
As this item is bulky, the delivery time may be slightly extended. Thank you for your understanding.
Price:€45.90
Telescope Spacing Beam 2x2.40 meters (unit)
This spacing beam allows you to secure the back of your garage door rails. It can extend up to a maximum of 4.2 meters.
A model of 2x1.80m, which can extend up to 3 meters, is available here, with delivery by Colissimo.
Price:€59.90
Lock case for up-and-over garage door
60mm center distance
For handle square 9x9mm
Approx. dimensions 160x60x17mm
+ 1 plastic spacer
+ screw on outlet (M6 or M8)
Several models:
Simple outlet upwards or downwards,
Double vertical or horizontal outlets
Price:€34.80
Central Lock Box for Gate 1 Point (per unit)
Reversible lock box, suitable for both right or left gate of a tilt door.
Distance between centers 70 mm
Designed to accommodate European cylinder and handle with 8x8mm square spindle (not supplied)
Price:€36.00
Lock box with 3-Point locking for up-and-over garage door wicket (unit)
70 mm center distance
Designed to accommodate a European cylinder and handle with 8x8mm square (not provided)
Two models: for left or right wicket (viewed from outside - see description in the illustrations opposite)
Price:€79.80
This small latch, or spring-loaded lock, is fixed in the corner of the frame of your up-and-over garage door and allows it to be locked when closed.
Supplied with a bracket (possibility to adjust the position of the latch laterally)
Supplied with 3 sheet metal screws 6.3x15, 2 M6x30 bolts, and a shim
Reversible bracket and latch
Made of steel
Price:€18.00
Suitcase Handle allowing you to manually operate your sectional or sliding garage door.
PVC material
Supplied with 4 screws 5.5x25mm (handle only) or 4 screws 5x40mm (for the complete set int+ext)
Black or white color
Attaches to the inside of the door, ideally at least 2 screws should be in a panel reinforcement.
Price:€13.20
Handle for sectional garage door, surface-mounted, delivered in pairs.
For temporary manual use of your sectional garage door, you can add this small handle.
Very discreet, they will allow you to have an additional grip on the panel to lift your door more easily.
Sold in pairs
White ABS
Screws not provided (to be defined according to your panel type)
Price:€5.40
ONE X motorization for sectional and up-and-over garage doors up to 12m², with integrated LED lighting, obstacle detection, and optional smartphone connectivity.
Automation delivered complete with:
1 ONE motor head with 140cm power cable
2 ONE transmitters
1 chain rail
1 ceiling mounting kit
1 connecting arm for sectional door and 1 connecting arm for up-and-over door
Price:€239.40
Bimaterial flap seal for sectional garage door bottom (the unit)
This gasket can be fixed at the bottom of the door panel for floor sealing.
Available in 2 sizes: 2420mm or 3020mm.
For reasons of space and delivery, the seal is cut/folded in 2 parts.
Price:€24.00
This steel profile is inserted in the female part (bottom part) of the bottom panel of your sectional and serves as a support for the EPDM gasket (sold separately).
Length 1295mm
In galvanized steel
Fixing screws supplied
Choose the number of elements needed to cover the width of your door and cut to your convenience (hacksaw / saw)
Price:€9.00
EPDM rubber seal for garage door bottom.
This very flexible gasket provides a better seal than the simple bib gasket. It can be cut with a cutter to fit custom-made garage doors.
Â
CAUTIONThis rubber gasket fits into an  Aluminum seal support profile sold separately
Price:€24.00
Double-lipped flexible seal cover for up-and-over garage door.
Reversible: can be fixed on the left and right uprights (by screw or rivet) or on the left or right apron.
This seal can also be used as a bottom seal for sectional garage doors (refer to the diagram in the illustration).
To be cut at your convenience with a hacksaw.
Price:€24.90
Plate + aluminium crutches set for lock case with 8mm x 8mm square
 1 inside handle
 1 outer handle with square 8mm x 8mm x 80mm
 2 cleaning plates int/ext. 92mm centre-to-centre distance
 2 slotted head screws M4 x 60
Available in anodised aluminium grey
Price:€39.90
Black PVC plate + crutches set - Distance between centres 70mm - Square 8mm
Suitable for up-and-over Axone Spadonegarage doors. Check the dimensions for mounting on another brand of door.
Scope of delivery :
1 inside handle
1 external handle
1 inner cleanliness plate
1 external cleanliness plate + screws
2 pins
1 square of 8mm x 8mm x 110mm
Price:€24.00
Sheet metal screw 6.3x15 mm with Hexagon head
Length under head: 15 mm
Easily installed with a screwdriver and a size 10 hexagonal bit.
Price:€3.90
Central hinge for sectional garage door and side garage door (the unit)
This hinge joins two panels of a door. It is suitable for residential and industrial doors.
Material: steel, white lacquered
Price:€4.80
Steel tensioning strap for manual up-and-over garage door springs.
Allows you to connect the springs attached to the bottom of your door jamb to the door arm axle.
Sold in pairs
In galvanized steel
Width of the strap: 20mm
2 sizes: 6 or 13 holes
(Sold alone, without spring hook)
Price:€12.90
Bridge strap for a motorized or manual up-and-over garage door arm.
The pair
For overhead door
4 screws M8x20 + nuts supplied
Sold alone, without spring hooks
(sold alone, without spring hook)
Price:€24.96
These reinforced anchor brackets (or mounting brackets) allow your up-and-over garage door or sectional garage door to be mounted on the wall.
Dimension: 45 x 77 x H60 mm
Material: galvanized steel
Per set of 7 brackets (M8 screws and nuts supplied)
Simply bolt these brackets to the studs (usually 3 brackets per side) and attach one to the top rail, then anchor them to the wall.
Price:€12.00
For Hormann or Tubauto up-and-over door
1 point (ref 1914000) or 2 lateral points (ref 1861/60)
Size 138x64x23 approx
Latch for locking from the inside
Slot for European cylinder and 9x9 square handle (not supplied)
Centre distance between handle and cylinder 60mm
Stroke closed/open position approx. 37.5mm-60mm
Spring return (exits out if you let go of the handle)
Price:€49.80
3 springs type A (Øext 19mm / L total 355mm)
1 triangle acc. springs high with T-connector for hanging Superior strap side
1 triangle acc. low springs with a hole for hanging lower (Useful if you don't have a hook at the bottom of your post. Drill and bolt at the foot of the jamb if necessary).
1 bolt M8
Provision for a non-insulated tilting device
Attention: 1 kit = 1 side
Price:€44.90
Attention: 9mm x 9mmsquare
Interior / exterior handle for up-and-over garage door
1 inside handle
1 external handle with square of 9x9mm
2 sizes : L47mm or L85mm
2 adjusting screws included 6x15mm and 6x35mm
Supplied without any other accessories
Also compatible with Euronorm up-and-over doors
Price:€15.60
Very useful to facilitate the attachment of a spring
Oval shape
Dim int : (h)45 x (b)14
Opening: (m) 7.5mm
Section: (d) 6mm
C.M.U : 200 kg
Made of galvanized steel
Price:€3.60
One-piece PVC gasket
This extruded gasket consists of a rigid PVC U-profile and a very flexible PVC bottom section with an outer flange and a wide inner lip.
To be fitted on the bottom of the panel and riveted (black rivets supplied)
Attention, this joint is cut in 2 parts in order to be accepted by Colissimo.
=> Click here for the 1 part version only
Price:€45.00

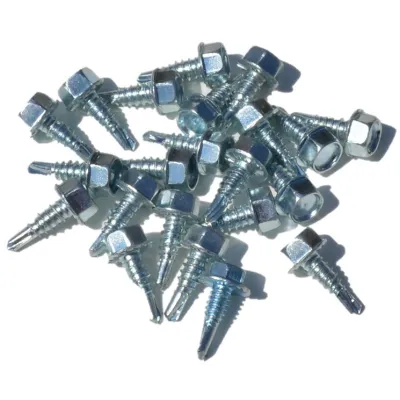

Sealing screw 6.3x19 hexagonal head
H-head
Self-piercing (practical for screwing without pre-drilling)
Length under head: 19mm
Easily installed with a screwdriver and a size 9 hexagonal bit.
Price:€3.90
This kit allows to replace the TORSION springs of a 40mm ISOLATED sectional by multiple horizontal TRACTION springs.
without a parachute
with tension springs along the ceiling rails (easy maintenance and adjustment)
with 3mm single cable
4 models :
5m² => max 2.5m x H 2.12
6m² => max. 3m x H 2.12
8m² => max. 4m x H 2.12
10m² => max. 5m x H 2.12
Price:€204.00
Cleanliness plate for an up-and-over garage door
Centre distance 60mm
In black PVC With Spadone logo
Dim 175x62x8mm approx.
Delivered with screws 5x20 mm & inner counter frame
Designed to receive the lock case (not supplied)
Price:€12.00
Bridge strap for a motorized overhead garage door arm
Allows you to connect your springs to the door arm axis. This jumper strap (thick sheet metal perforated with 7 holes + bolted upper part), recommended for insulated doors and preferably large size (H>2125).
2 screws M8x40 + nuts supplied
Sold alone, without spring hooks
Price:€36.96
This aluminium profile fits into the bottom of the panel and supports the EPDM gasket (sold separately).
Also suitable for edged panels
For 40mm thick panels
to be cross-referenced at your convenience
delivered with steel rivet
two sizes available : 1250mm and 1500mm
Raw aluminium
Price:€10.80
Lined tension springs (1 large spring + 1 small B Ø18 inside) compatible with old Spadone garage doors, Maguisa or AGS among others.
Several combinations to choose from:
B(Ø18) + D (Ø24) => up to 5m².
B(Ø18) + E (Ø25) => up to 6m².
B(Ø18) + F (Ø26) => up to 7m².
2 Lengths :
715 mm => H Door
900 mm => H Door ≥ 2400
Price:€35.00
Translucent plexiglass porthole for non-insulated up-and-over garage door.
4 screws and M6 bolts included
External dimensions: 195 * 380 mm
Opening dimensions: 145 * 328 mm
Price:€30.00
This very flexible threshold seal provides a double seal when closing at the bottom of your garage door, in addition to the seal fitted under your lower panel.
Weatherproof, rainproof, stops water, drafts, leaves/dust to keep your garage clean and dry
Designed to allow the silent passage of a vehicle driving over it
In PRODENE 503 70 SH BLACK
We recommend PU40+ glue (sold separately)
Price:€37.90
Actuator for an up-and-over garage door
Brand Airax réf 512439 C350 240702A0 1100N
Force 1100N
370mm Ø10mm rod, M8 threaded at the end
Body Cylinder Ø22mm of 495mm, eye Ø8 at the end
Total length 890mm
Sold per unit
Price:€84.00
Seal with soft lip for overhead or sectional doors.This joint is fixed by rivets or small screws (not supplied). It can be overlapped at your convenience with a hacksaw or pruning shears. Length : 1,10m
Price:€13.20
SL locking clip for locking the arm bracket placed on the frame of a Spadone, Novoferm, Hörmann and Tubauto up-and-over garage door.
This axle brake is designed to fit onto a Ø10 axle with an 8mm diameter groove.
Steel
Sold in sets of 2
Also compatible with Hörmann sectional low brackets Part No. 3014657 and tilting brackets N80 / F80 / Ecostar Part No. 1071001
Price:€7.50
This type of part is used on some up-and-over doors with single large springs on each side (usually German doors or older Doitrand models).
in steel thickness 3 mm
sold alone or with their triangular supports (+4 M8 screws + lock nuts)
the pair
Price:€12.90
Bimaterial side seal for industrial sectional garage door (the unit)
This seal can be attached to the edge of the garage door jambs by interlocking.
Length: 1250mm
Price:€12.00
This one-piece extruded PVC bead gasket consists of a rigid PVC U-profile and a very flexible PVC bottom part with an outer bead and a wide inner lip.
To be fitted on the bottom of the panel and riveted (black rivets supplied)
Delivered in one piece by special carrier
=> Click here for the 2-part version with Colissimo delivery
Price:€54.00
1 lock case EP17 , 1 bottom exit or 2 side exits   Ent 60mm / square handle 9x9mm / 160x60x17mm approx.
1 plastic extension piece
1 cylinder 10-30
1 PVC handle inside + outside + screw M6x15
1 cleanliness plate + 4 screws 5x20Â Â Â Â Ent 60mm / black PVC /175x62x8mm approx.
Delivered with a plastic extension required for some doors to replace a 30 mm thick box.
Price:€59.00
These parts allow the rear attachment of the rails to the spacer bar.
Their design allows them to slide easily to adjust their position on the spreader bar.
Dimension: 54x120mm
In galvanized steel
Sold in packs of 2 (1 left + 1 right)
6 screws + 6 M8 nuts supplied
Price:€12.00
These parts are attached to the bottom left and right corners of your overhead door frame and allow connection to the end of the swing arm.
Made of steel
+ 4 sewing screws
+ 2 clips
 The pair
Price:€14.40
Hook model with handle lift
Distance between centres 92 mm, face plate 24x6mm
Designed to receive European cylinder and handle with 8x8mm square (not provided)
Supplied with 3 strike plates + 12 rivets
+ 10 Phillips screws 5x10
The model is reversible at the bolt level, which makes it possible to mount this lock on the left as well as on the right.
Price:€179.00
These basic anchor brackets (or mounting brackets) allow your garage door to be mounted on the wall.
Dimension: 95 x 38 x H38 mm
Material: galvanized steel thickness 2mm
Per set of 5 brackets (screws not supplied)
Simply bolt these brackets to the studs and attach one to the top rail and then anchor them to the wall.
Price:€6.00
This steel circlip is used by the EURONORM up-and-over door brand. It can be used for other purposes.
on the high and mobile pulleys
at arm level
designed to fit on a Ø12 axle with a groove
Sold in pairs
Caution: Only compatible with 12mm pins with a groove to engage the clip.
Price:€7.50
Reduced size EPDM flange seal for garage door bottoms or any other case!
- Flexible and hollow profile, allows a better seal than the simple bib seal- Easy to install- Discreet, it is only 15mm visible- To be cut at your convenience using a cutter- Delivered rolled
WARNINGThis seal fits into a profile sold separately:- Aluminum seal support profile
Price:€28.80
This receiver makes your garage door motor compatible with connected systems. You can open your door, close it and check its status from your smartphone with voice command, on the Meross (Android / iOS) or Apple Home app.
Easy to install, it is connected to the motor on the terminals for the push button, a wired sensor detects the position of the door and it is supplied by a power outlet.
Reduced price:€49.99
Very useful for unlocking your engine from the outside in case of a power outage.
Delivered with 2 keys
Designed for insulated doors up to 50mm thick.
Model LiftMaster 1702EV
Price:€24.90
European format lock cylinder, compatible among others with garage doors. Easy to install and compatible with a wide variety of locks.
Half-cylinders = Perfect for locks requiring a key from only one side, like the tilting garage door of a box.
2 or 3 Keys provided depending on the cylinder versions
To know the size of your cylinder, remove the old one and measure it precisely.
Price:€21.90
Oscillating arm for up-and-over garage door.
Reinforced model, powder-coated in Anthracite Grey RAL 7016
Sold as a single unit without accessories
Â
3 arm lengths available:
Door height 1800-1999 Â Ref. M - 970mm
Door height 2000-2249 Â Ref. S - 1070mm
Door height 2250-2499 Â Ref. X - 1185mm
Â
If the length of your installed arms differs from the one indicated, change both sides to keep your door balanced.
Price:€108.00
Nylon Mobile Pulley Ø 50mm Double Groove delivered assembled with its steel support for use on a door with a single looped spring per side (or double spring)
Diameter 50mm
Ball bearing
Delivered assembled with mobile support
A single hole in the center for attaching a single (or double) looped spring
Per unit
Very durable ball bearing with ABS overmolding very durable (better than the steel pulley)
Price:€15.60
Set with doubled tension springs (1 large spring + 1 small inner spring), pulley, and lower bracket for replacing the original springs on Hörmann, Tubauto, or AGS doors reference 754 or variants 751, 752, 753, 755, 756, 757.
The kit includes:
1 pack of doubled springs
1 ball-bearing pulley, nylon overmolded, double groove with spring bracket support
1 lower bracket with 2 sheet metal screws 6.3x15
1 kit = 1 side of the door
Price:€84.00
