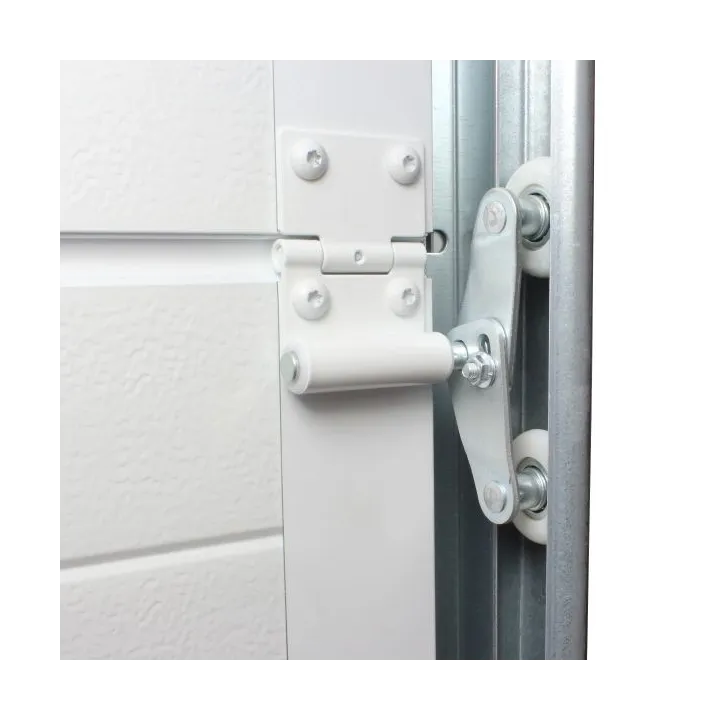

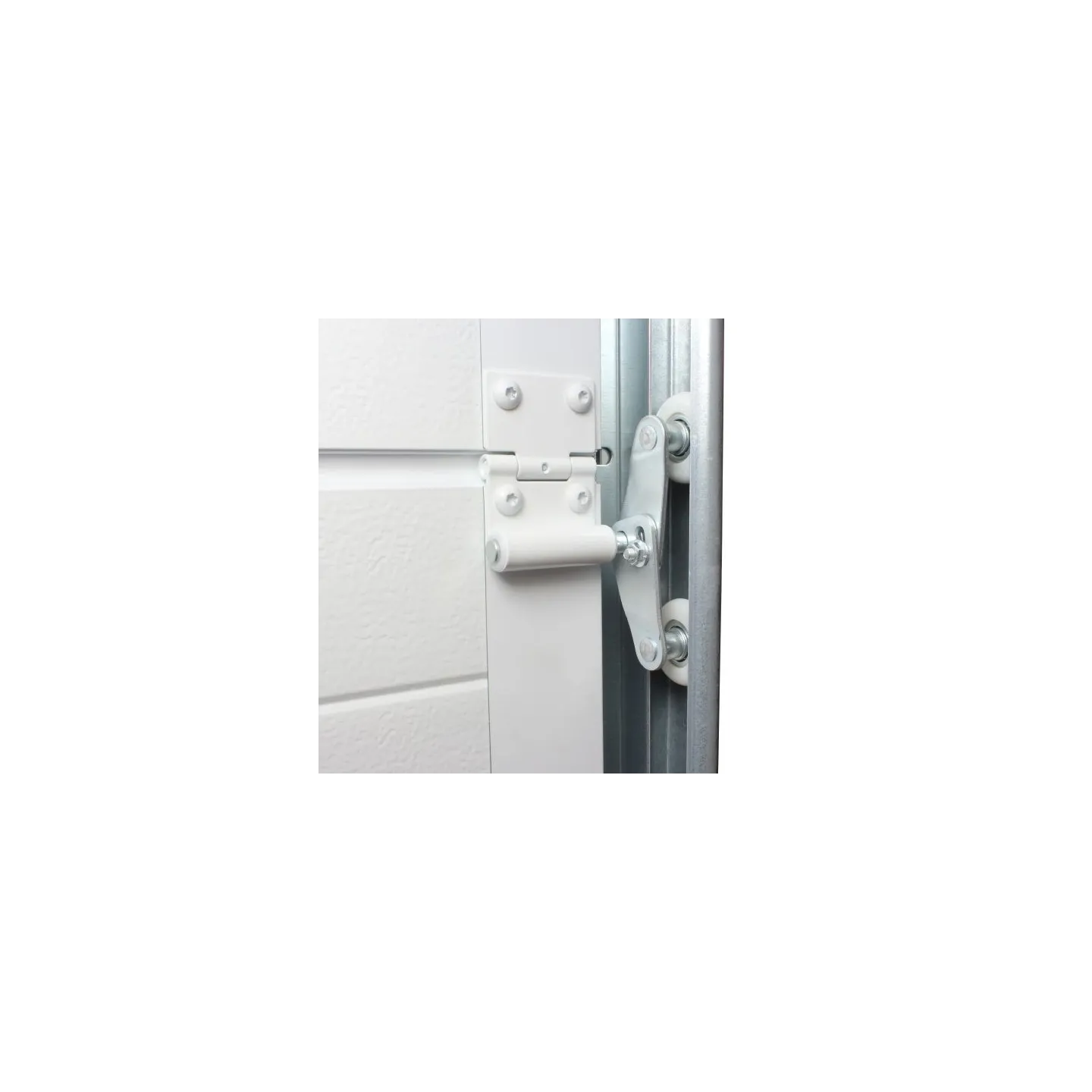

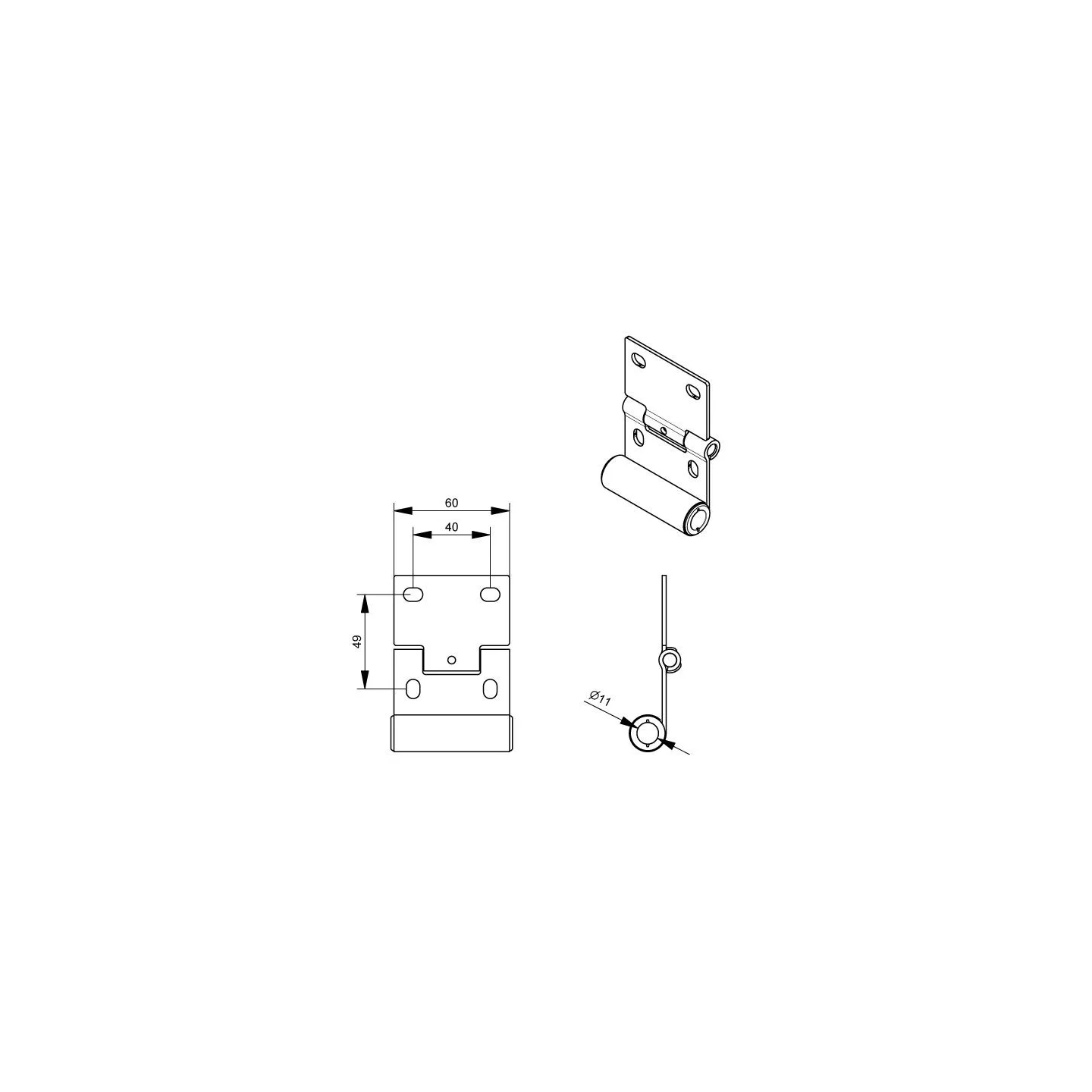

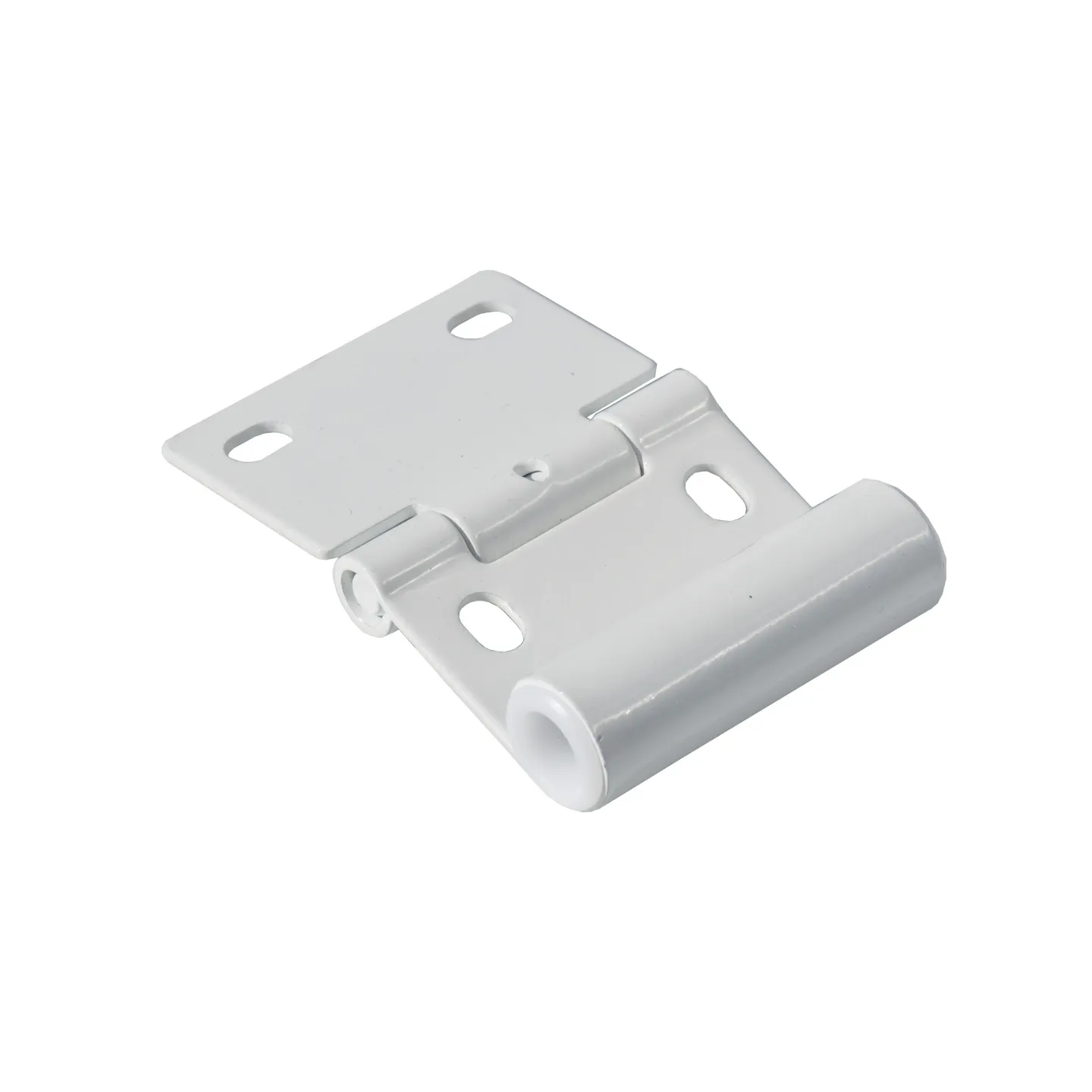

White lacquered side hinge to be used at the joints between the panels of a sectional garage door, designed to support castors with an 11mm diameter axle.
Model with PVC tube to limit noise and friction.

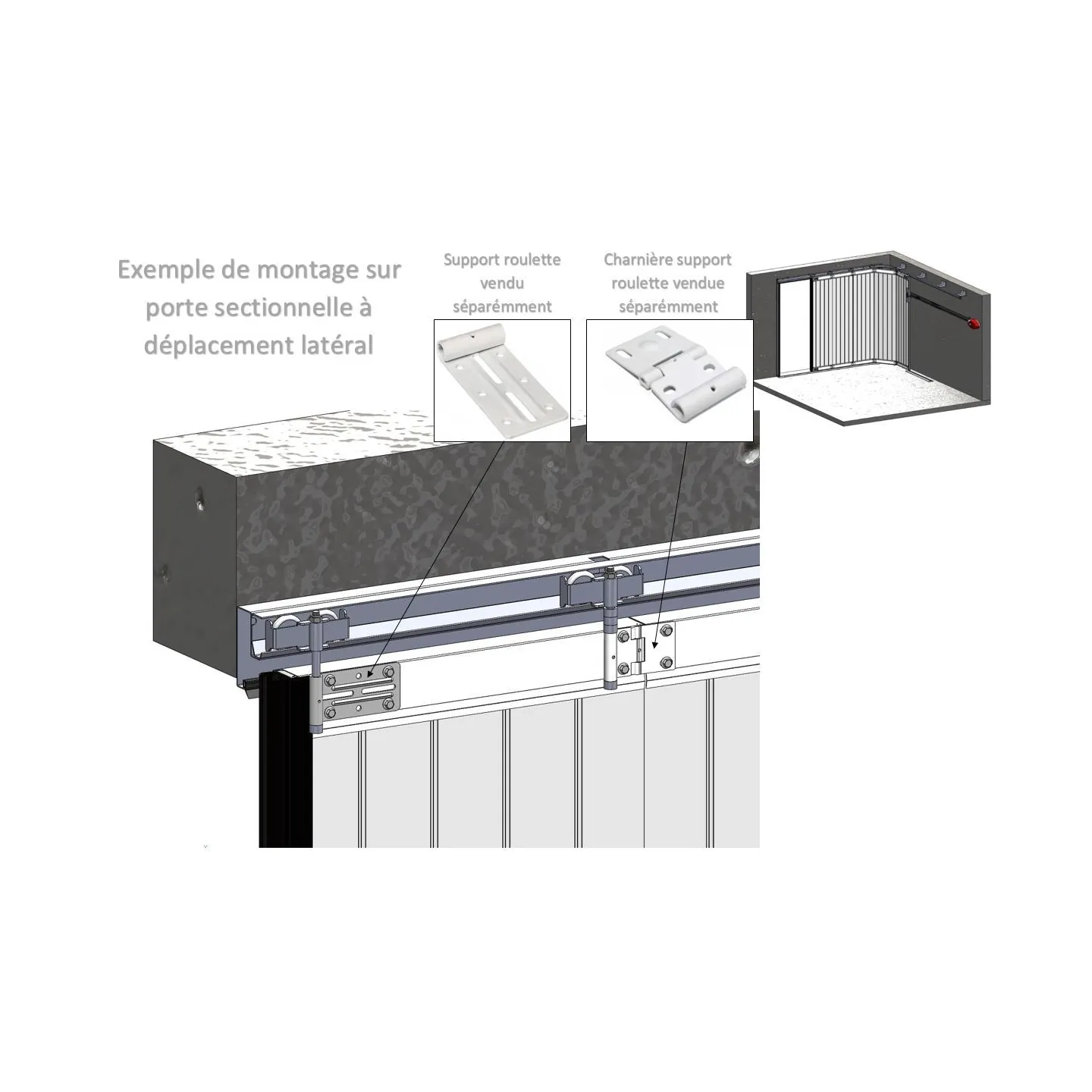

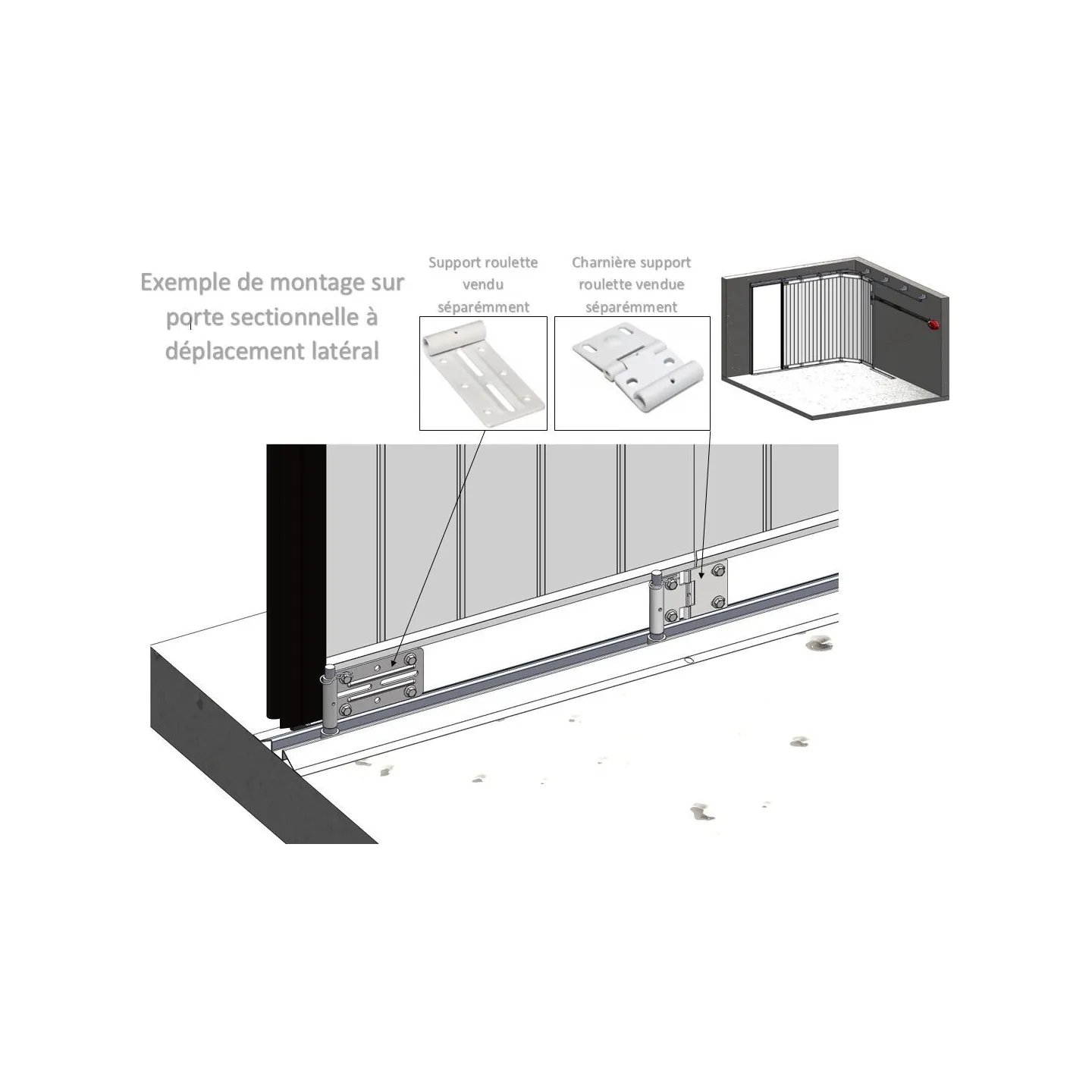

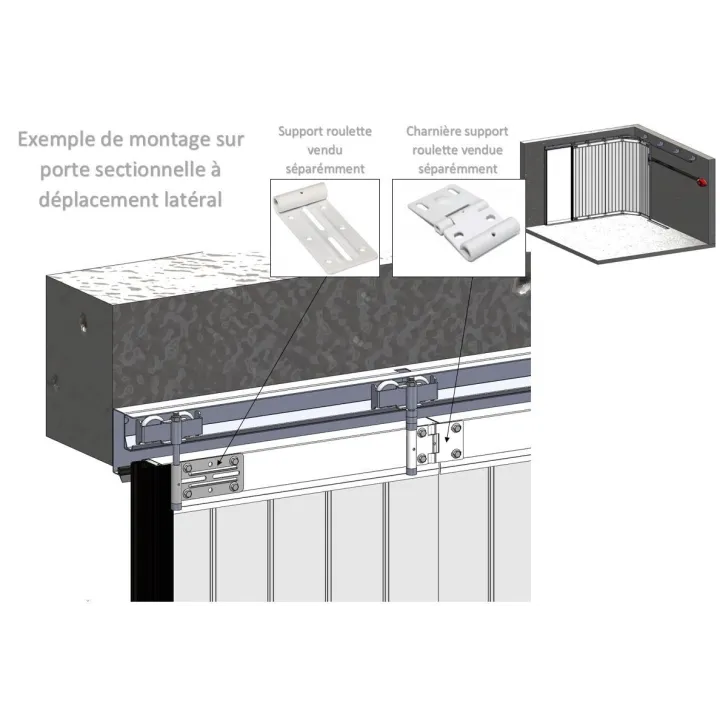

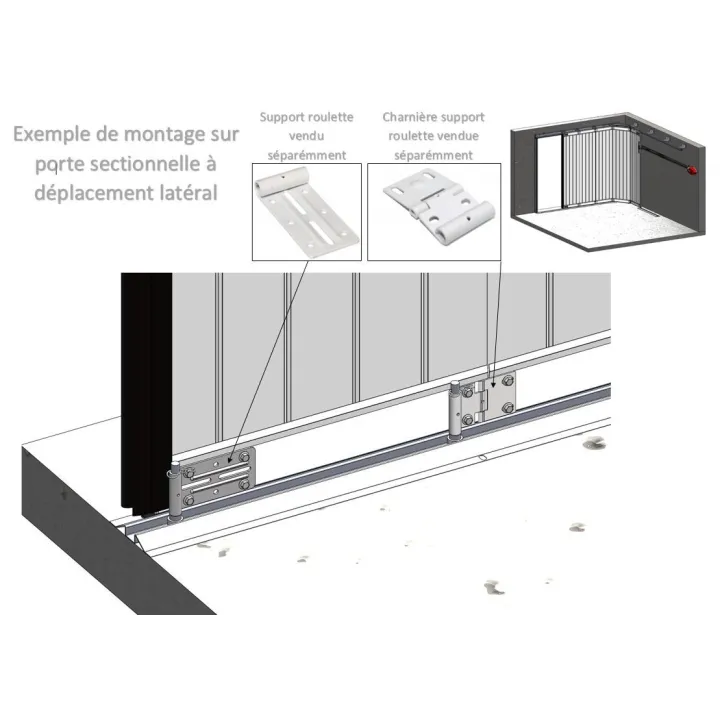

For use with tandem wheels and guide roller for a side sliding sectional door.
Excluding bulky items, orders placed before 1pm are shipped the same day. You will receive by email the tracking number of your package as soon as your order is shipped.
Delivery at home or in relay point.
Order aujourd'huibefore 1pm and receive your parcel on Wednesday 11 December (Delivery time to mainland France and Germany)
| Country | Shipping costs |
|---|---|
| France - in relay point | 4 € (Free from 120 € of purchase) |
| France - at home | 5 € (Free from 120 € of purchase) |
| French overseas departments | from 12 € |
| Belgium, Germany, Luxembourg, Netherlands | 6,90 € |
| Switzerland, Italy, Spain, Portugal, Austria, Ireland | from 9 € |
| Rest of Europe & world | from 10 € |
At our Factory in Delle (Technoparc Franco-Suisse - F90100 DELLE) Monday to Friday from 8:30 a.m. to 4:45 p.m. (except public holidays and vacations).
Of course, it's free!
| 5 | 0 | |
|---|---|---|
| 4 | 0 | |
| 3 | 1 | |
| 2 | 0 | |
| 1 | 0 |
Tandem castor - 9,90 €
Tandem roller for sectional garage door (the unit)
Axis roller diameter : 11mm
Stem length: 95mm
Wheel diameter : 45mm
Ball bearing
Sold without support hinge (available here )Sheet metal screws 6.3x25 Head H - 3,90 €
Hexagon head sheet metal screw 6,3x25 mm
Length under head: 25 mm
Easily installed with a screwdriver and a size 10 hexagonal bit.Central hinge - 4,80 €
Central hinge for sectional garage door and side garage door (the unit)
This hinge joins two panels of a door. It is suitable for residential and industrial doors.
Material: steel, white lacquered
