Hinges with numbered rollers N2/N3/N4 for sectional doors
For roller fixed (not supplied)
In galvanized steel
Compatible only with sectionals from H2000 with 4 sections height 500mm (Each support has an offset calculated for its position)
Sold by choice:

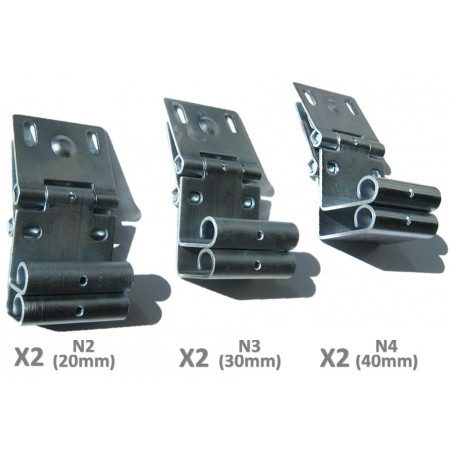

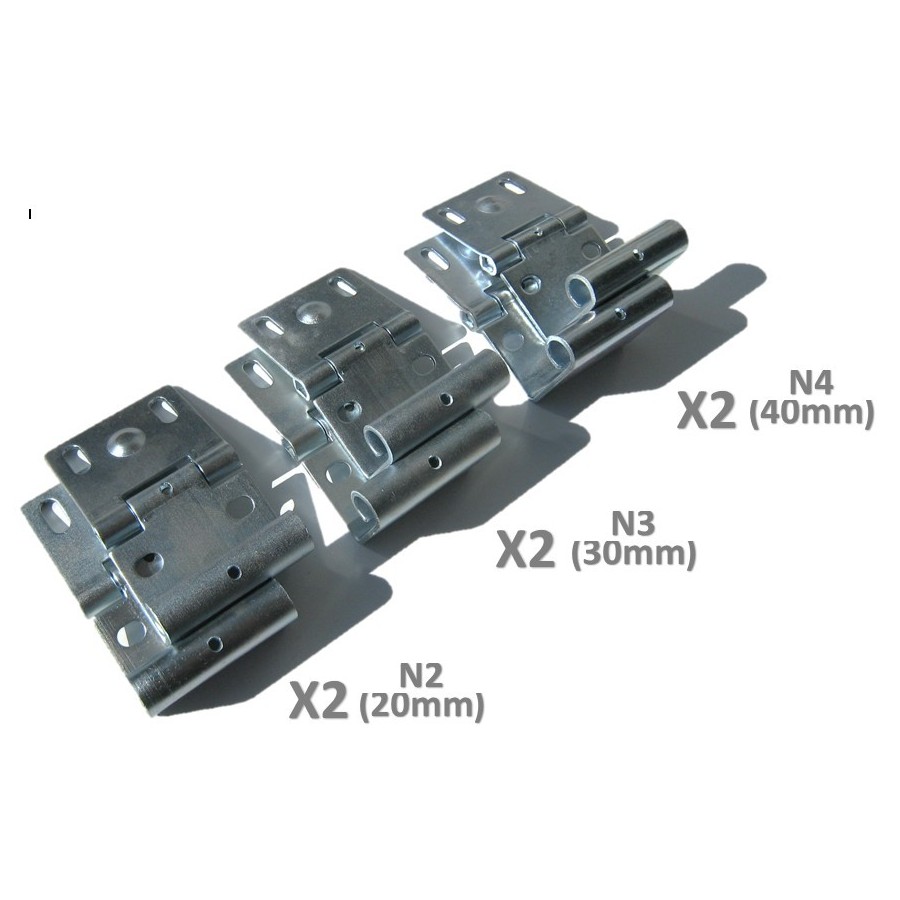

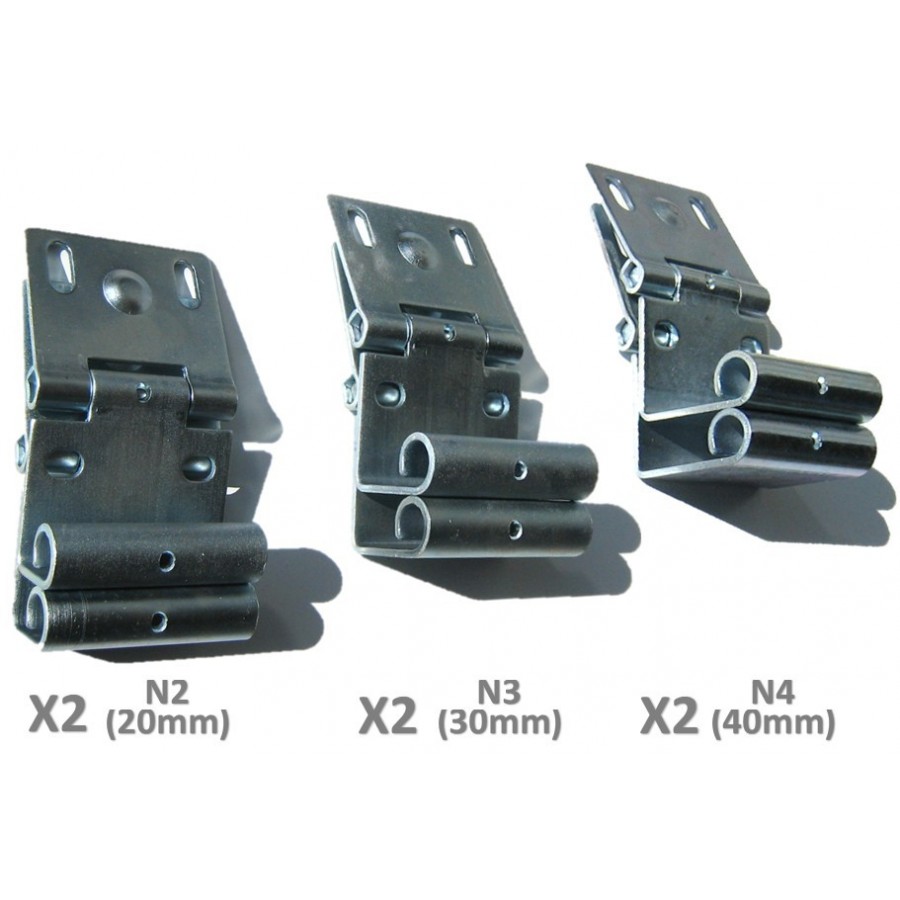

in complete batches for one door (6 holders - 2x N2 / 2x N3 / 2x N4)
in pairs (2x N2 or 2x N3 or 2x N4)
Be careful to follow the order in which these brackets are mounted!

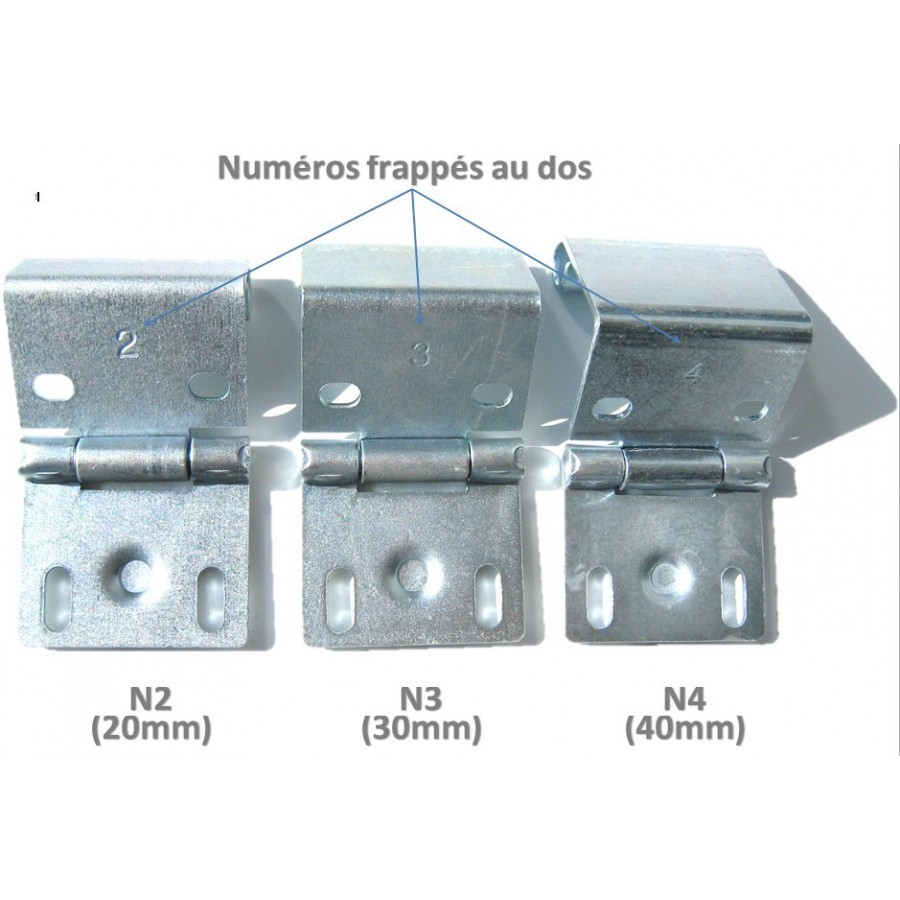

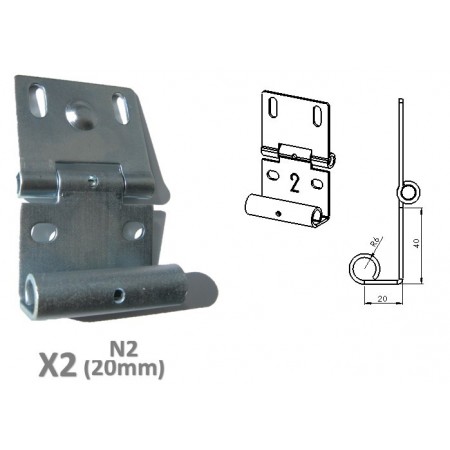

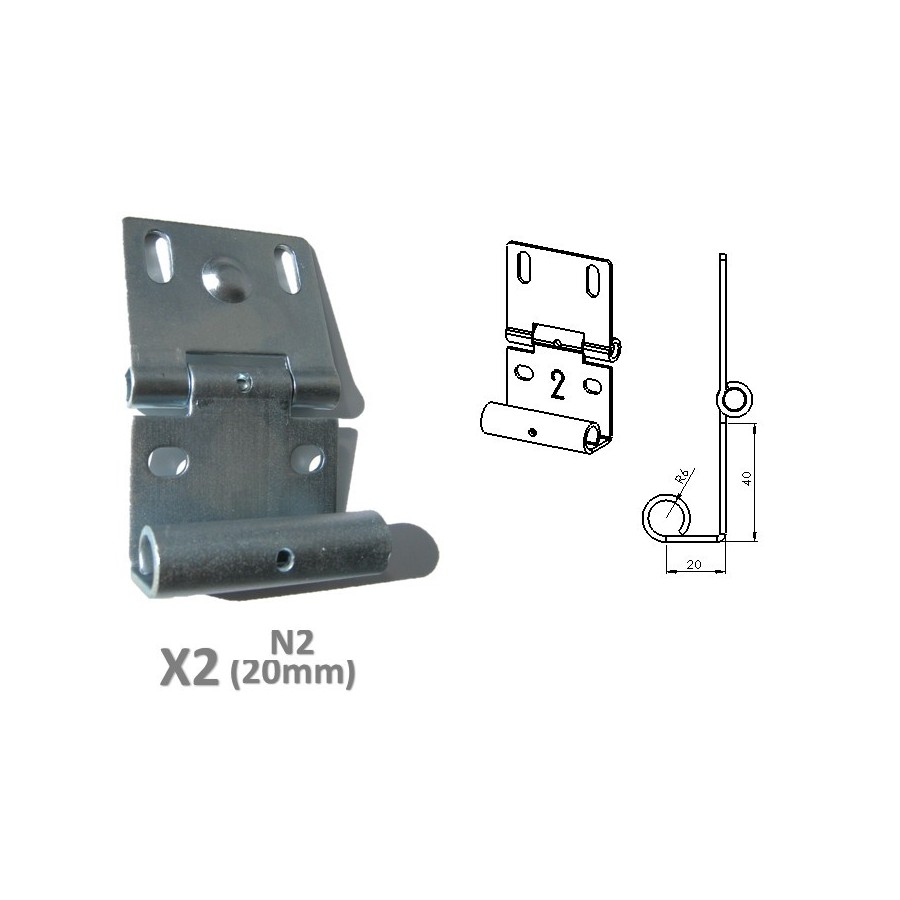

Supports N2 => 2nd roller (from the bottom)

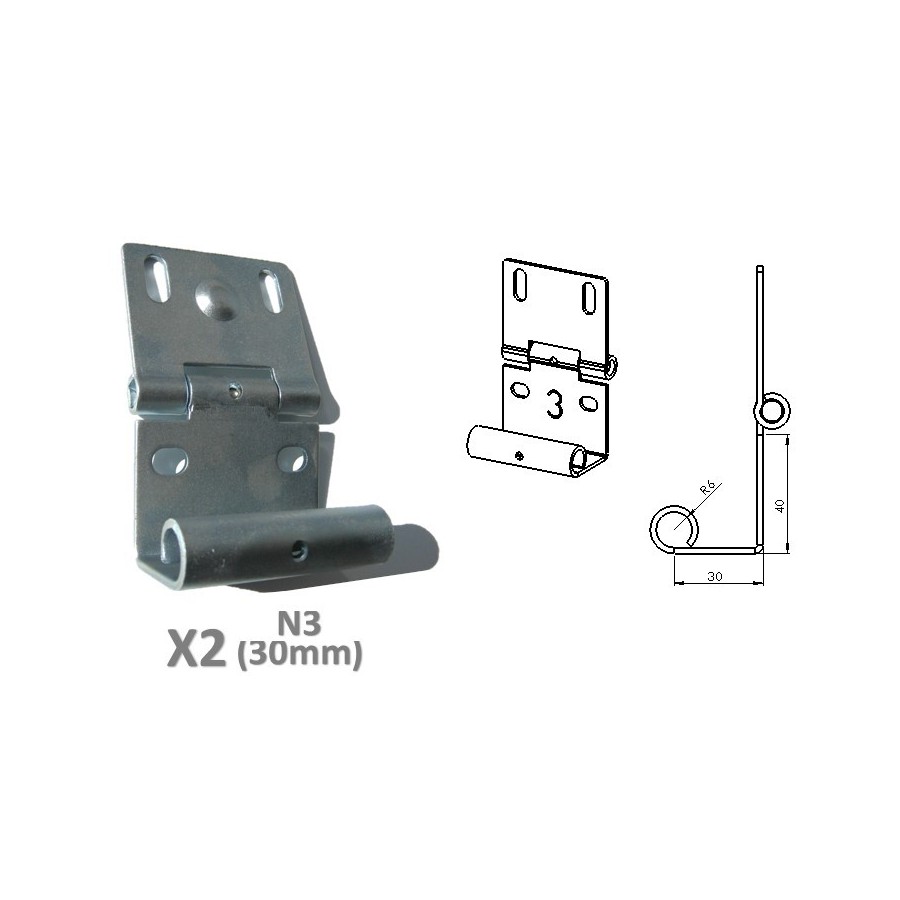

Supports N3 => 3rd roller
Supports N4 => 4th roller
Each support has an offset calculated for its position to follow the slope of the rail.
(roller Recommended axis: diameter 11mm)
