Spare parts for Wayne Dalton

Spare parts for Wayne Dalton garage door

The garage door manufacturer Wayne Dalton produced numerous sectional doors for years before ceasing operations in Europe in 2012. Their design was quite specific, but we have spare parts from our production that are compatible with Wayne Dalton garage doors to enable you to repair these garage doors as best as possible, despite the company's closure.

In summary:

  • The Torquemaster torsion spring, specific to this brand, can be replaced with our Wayne Dalton Torquemaster spring replacement kit
  • The very specific design of the panels prevents their replacement, often requiring the door to be replaced, more information here.
  • The Push&Pull or Push&Pull B motors can be replaced with a ONE600 motor or repaired with the spare parts still available here. The Push&Pull model was marketed under the name "ML500".
  • The Wayne Dalton hinges and rollers, very specific to this brand, are available below.

We are always at your disposal if you need more information on parts for this brand. If you can't find what you need, write to us and send us a picture of your Wayne Dalton door, our technicians will look for the best possible adaptation for you.

Équerre de suspente 450mm + support monorail Equerre de suspente 450 + Support de rail
Suspension bracket and rail support, made of galvanized steel, to facilitate the installation of garage doors. Two available lengths: 450, 600 or 750 mm Two types of supports (+ 1 M8 bolt): for single rail or double rails Suitable for installing sectional or up-and-over garage doors.
Price:€9.90
Traverse Ecartement Téléscopique 2x1,80 Traverse Ecartement Téléscopique 2x1,80
Telescopic Spacing Crossbar 2x1.80 meter (per unit) This crossbar allows you to attach the back of your garage door rails to the ceiling and/or walls. It can extend up to a maximum of 3m. A model of 2x2.40m, which can extend up to 4.2 meters, is available here. As this item is bulky, the delivery time may be slightly extended. Thank you for your understanding.
Price:€45.90
Traverse Ecartement Téléscopique 2x2,40 (porte large) Traverse Ecartement Téléscopique 2x2,40 (porte large)
Telescope Spacing Beam 2x2.40 meters (unit) This spacing beam allows you to secure the back of your garage door rails. It can extend up to a maximum of 4.2 meters. A model of 2x1.80m, which can extend up to 3 meters, is available here, with delivery by Colissimo.
Price:€59.90
Poignée Valise Dimensions poignée pour porte de garage
Suitcase Handle allowing you to manually operate your sectional or sliding garage door. PVC material Supplied with 4 screws 5.5x25mm (handle only) or 4 screws 5x40mm (for the complete set int+ext) Black or white color Attaches to the inside of the door, ideally at least 2 screws should be in a panel reinforcement.
Price:€13.20
Poignée pour porte sectionnelle en applique (la paire) Poignée Sectionnelle en applique
Handle for sectional garage door, surface-mounted, delivered in pairs. For temporary manual use of your sectional garage door, you can add this small handle. Very discreet, they will allow you to have an additional grip on the panel to lift your door more easily. Sold in pairs White ABS Screws not provided (to be defined according to your panel type)
Price:€5.40
Motorisation ONE X pour porte de garage Motorisation pour porte de garage basculante
ONE X motorization for sectional and up-and-over garage doors up to 12m², with integrated LED lighting, obstacle detection, and optional smartphone connectivity. Automation delivered complete with: 1 ONE motor head with 140cm power cable 2 ONE transmitters 1 chain rail 1 ceiling mounting kit 1 connecting arm for sectional door and 1 connecting arm for up-and-over door
Price:€239.40
Télécommande moteur Chamberlain ML500 Emetteur moteur Chamberlain ML500
Remote control for Chamberlain Liftmaster ML500 motor (single unit) This transmitter replaces remote controls with references 4335 and 84335. This remote replaces the original model. It is not a universal or copier remote; it programs and works directly with your ML500 motor or others (complete list below). Easy programming with the included manual and available in the "Documentation" tab
Price:€36.90
Chamberlain ML500 engine trolley (unlocking part) Chamberlain ML500 engine trolley (external part)
Chamberlain ML500 engine trolley external part Ref : 041C7108 (replaces part numbers 210C0040 / 041C5620 / 04666) It is compatible with the following other CHAMBERLAIN* engines: HE60 / HE60AS / HE60PY / PSGTA60 / GPD60 / GPD65 *Also compatible with Wayne Dalton Push & Pull engines installed on Wayne Dalton doors.
Price:€43.80
Chamberlain ML500 engine trolley (chain side part) (delivered without the chain) Push & Pull and ML500 internal trolley 001A5644
Chamberlain Liftmaster ML500 Internal Trolley Ref : 001A5644/210C0050 Delivered without the chain (version with chain available here) Also compatible with Chamberlain ML500 / HE60 / HE60AS / HE60PY / PSGTA60 / GPD60 / GPD65 and Push & Pull motors on some Wayne Dalton doors
Price:€29.70
Chamberlain ML500 engine limit switches Chamberlain ML500 engine limit switches
Chamberlain ML500 and Wayne Dalton Push&Pull motor limit switches Also compatible with HE60 / HE60AS / HE60PY / PSGTA60 / GPD60 engines Ref.: 041C0521-1 In definitive rupture Chamberlain has discontinued this model. We recommend replacing your motor with a ONE 600  which has an equivalent power (600N). It comes with a motor head, 2 remote controls and a rail with chain (original rail incompatible).
Chamberlain ML500 single motor head
Chamberlain Motor Lift 500 - tractive force 60 kg Definitively broken The Chamberlain brand has stopped manufacturing this model. We advise you to replace it with a 600 motorization ONE kit which has an equivalent power (600N). This kit is delivered with a motor head, two remote controls and a rail (the rail of the ML500 is incomprehensible). Engine ONE 600 (Complete kit) >
Price:€198.00
Anchor tab 45x77 (Set of 7) Anchor Bracket (Set of 7)
These reinforced anchor brackets (or mounting brackets) allow your up-and-over garage door or sectional garage door to be mounted on the wall. Dimension: 45 x 77 x H60 mm Material: galvanized steel Per set of 7 brackets (M8 screws and nuts supplied) Simply bolt these brackets to the studs (usually 3 brackets per side) and attach one to the top rail, then anchor them to the wall.
Price:€12.00
Motor head only Wayne Dalton PUSH AND PULL Motor head only Wayne Dalton PUSH AND PULL
Push and Pull motor - tractive force 60 kg - Ref HE60-4WD Definitively out of order WayneDalton stopped making this model. We advise you to replace it with a 600 motorization ONE kit which has an equivalent power (600N). The delivered kit includes a motor head, 2 remote controls and a rail with chain (the Push&Pull rail is unbreakable). Engine ONE 600 (Complete kit) >
Price:€198.00
Torquemaster spring replacement set for Wayne Dalton garage door Wayne Dalton door torsion spring replacement kit
This set allows to replace the TORSION springs of a WAYNE DALTON sectional garage door  by multiple horizontal TRACTION springs. This set comes with everything you need to replace your springs, pulleys, fasteners, cables and screws on both sides of your door.The strength of the springs is adapted to the width of your door.
Price:€189.00
Wayne Dalton Hinge & roller Wayne Dalton Garage Door Hinge
Side support roller hinge for Wayne Dalton sectional garage door (the unit) This galvanized steel support roller hinge is to be used at the joints between the panels on the sides of a Wayne dalton sectional door. Delivered with a roller ball bearing        - rod Ø8.5mm        - rolling Ø1 inch = 29mm mint condition
Price:€12.00
Central hinge for sectional garage door Wayne Dalton Central hinge for sectional door Wayne Dalton
Centre or side hinge for Wayne Dalton sectional garage door (the unit) The 18-1H central hinge for Wayne Dalton door is replaced by the side hinge. Central hinge to be used at the hinges between the panels at the centerline of a Wayne dalton sectional garage door
Price:€6.00

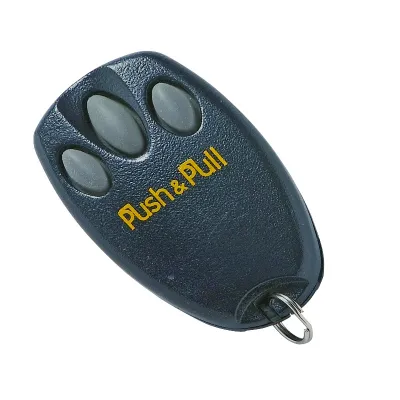

Remote control for PushPull PP60 motor Push&Pull Wayne Dalton opener remote controller
Transmitter for Push & Pull motor (the unit) Not compatible with Push&Pull B opener Very easy programming, instructions in appendix. This is not a copying remote control, our model works alone and is just as secure as the original one. 10€ free For the purchase of two or more remote controls It's automatic ;)
Price:€36.90
Wayne Dalton Ball Bearing Roller Garage door castor 1 inch diameter sectioned castor
Roller for Wayne Dalton sectional garage doors (unit, delivered alone) Diameterroller : 29 mm Stem diameter: 8.5 mm Shank length: 103 mm Ball bearing
Price:€6.60
Câble diamètre 2mm (au mètre) Câble diamètre 2mm (au mètre)
Cable diameter 2mm in galvanized steel Supplied with 2 seals  to form a loop at the end of the cable or avoid fraying. Sinkers can be crimped manually & easily with a hammer. Useful especially for replacing cables on the majority of Wayne Dalton garage doors. Cable cut on demand. Do not hesitate to contact us for a specific need for a long length!
Price:€12.00
Motor remote control Push&Pull B Motor remote control Push&Pull B
Transmitter for Wayne Dalton E4F Push & Pull B engine (the unit) Very easy programming, instructions in appendix. Original manufacturer's model. Model BERNAL B 260.254-N with 4 buttons and operating frequency of 433.92 MHz. Warning: this product is no longer available, it is now replaced by our radio ONE receiver and ONE remote : Learn more
Sliding rail/spacer bar connections (pair) Sliding rail/spacer bar connections (pair)
These parts allow the rear attachment of the rails to the spacer bar. Their design allows them to slide easily to adjust their position on the spreader bar. Dimension: 54x120mm In galvanized steel Sold in packs of 2 (1 left + 1 right) 6 screws + 6 M8 nuts supplied
Price:€12.00

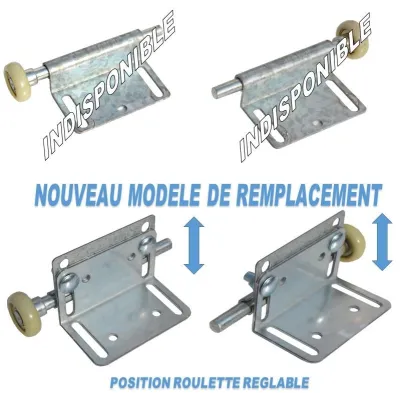

Wayne Dalton Top Roller Stand (pair) Wayne Dalton Top Roller Stand (pair)
As the original Wayne Dalton top support no longer exists (ref. 11-006235), we have developed this replacement solution : Adjustable supports adaptable to several types of doors Delivered with 2 ball bearing wheels         - rod Ø8.5mm         - rolling Ø1 inch = 29mm + 4 sheet metal screws 6.3x16 (for panel mounting) The pair (to be assembled by yourself)
Price:€34.80
Door bottom seal Wayne Dalton Change bottom seal sectional door Wayne Dalton
Flexible seal to be adapted to replace the specific seal of a Wayne Dalton sectional garage door. To be placed at the bottom of the panel and fixed with self-drilling screws (a cut-out may be necessary at the end of the panel depending on the type of bottom support - refer to the diagram opposite). Supplied with 4.2x16mm self-drilling Phillips head screws. Can be easily cut with a hacksaw.
Price:€34.80
Anchor lug 92x38
These basic anchor brackets (or mounting brackets) allow your garage door to be mounted on the wall. Dimension: 95 x 38 x H38 mm Material: galvanized steel thickness 2mm Per set of 5 brackets (screws not supplied) Simply bolt these brackets to the studs and attach one to the top rail and then anchor them to the wall.
Price:€6.00
Smart Wi-Fi Garage Door Opener (HomeKit, Alexa, Google Assistant) Installation of the connected Wifi receiver on a garage door
This receiver makes your garage door motor compatible with connected systems. You can open your door, close it and check its status from your smartphone with voice command, on the Meross (Android / iOS) or Apple Home app. Easy to install, it is connected to the motor on the terminals for the push button, a wired sensor detects the position of the door and it is supplied by a power outlet.
Regular price:€53.99
Reduced price:€49.99
Déverrouillage de secours extérieur 1702REV-01 Schéma cylindre de déverrouillage porte de garage
Very useful for unlocking your engine from the outside in case of a power outage. Delivered with 2 keys Designed for insulated doors up to 50mm thick. Model LiftMaster 1702EV
Price:€24.90
Serrure pour porte sectionnelle Wayne Dalton Iso20 Kit serrure pour sectionnelle WAYNE DALTON iso20
Replacement lock and handle set to be adapted on Wayne Dalton sectional garage door. To be installed as a replacement on 20mm thick panels of the Wayne & Dalton brand, to be connected to the existing rods (or cables) on the 2 lateral outputs of the lock.1 lock case EP17, 2 lateral outputs 1 cylinder 10-40 1 inside PVC handle + screws M6x15 1 outside PVC handle (square 9x9 T47) 1 escutcheon plate + 4 screws 5x35
Price:€69.00
The docking plate attaches to the top of the sectional garage door panel and receives the motor's angled arm. Specially designed for the shape of panels with reinforcement from the Wayne Dalton brand Its shape allows for strengthening the attachment on the panel profiles, so it is unlikely to deteriorate (tear away). To be fixed with 6 sheet metal screws 6.3x15mm (provided)
Price:€14.40
